- XS1100E (XS1100) 1978
CARBURETOR

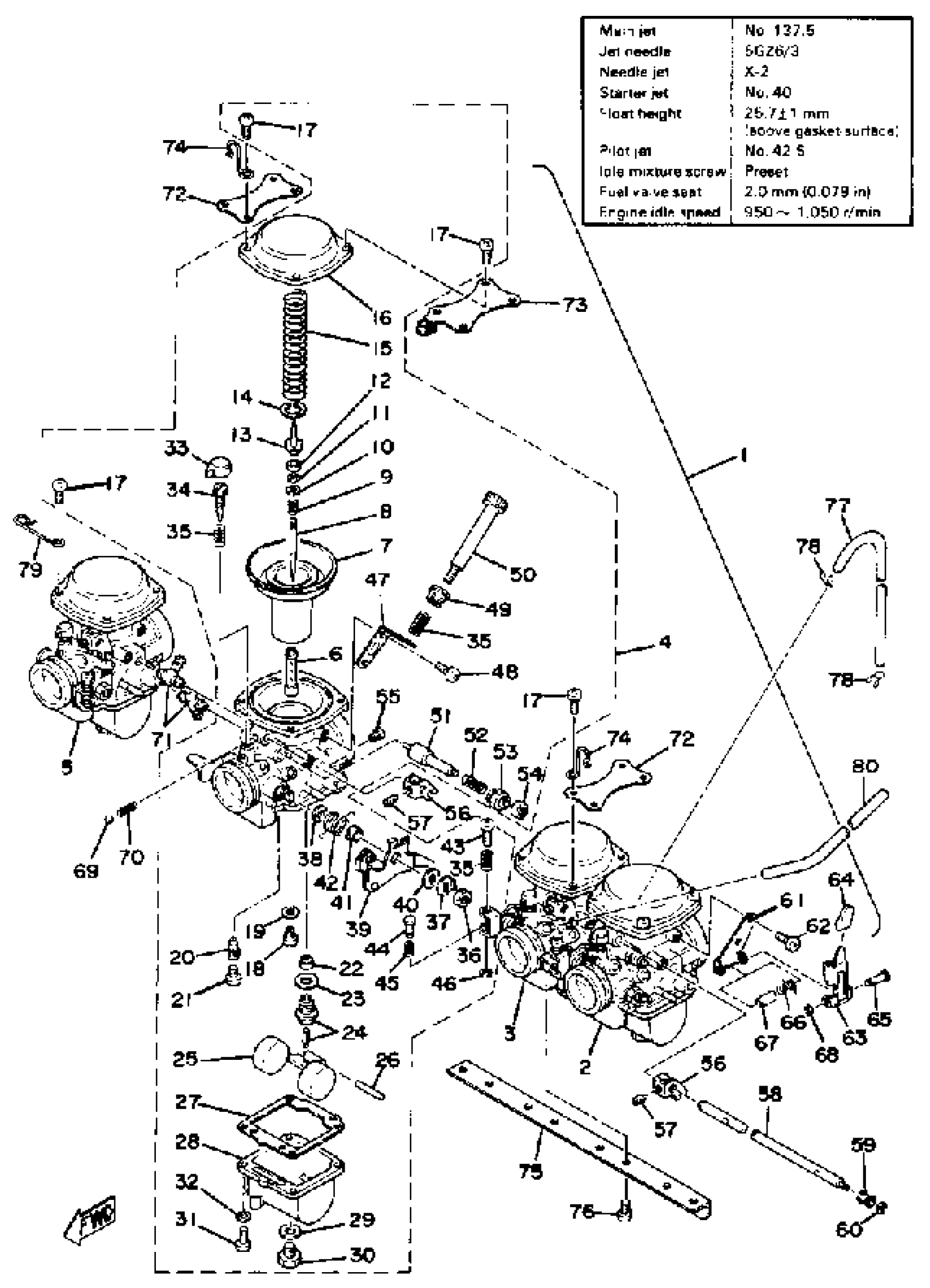

Yamaha XS1100E (XS1100) 1978 CARBURETOR Diagram
#
1
TOOL
UNA-VAILA-BL-EI
Unavailable
2
CARBURETOR ASSEMBLY 1
(2H7-14901-10-00)
Unavailable
3
. CARBURETOR ASSEMBLY 2 (2H7-14902-10)
2H7-14902-11-00
Unavailable
4
CARBURETOR ASSEMBLY 3
(2H7-14903-11-00)
Unavailable
5
CARBURETOR ASSEMBLY 4
(2H7-14904-10-00)
Unavailable
6
.. NOZZLE, MAIN
2H7-14941-02-00
Unavailable
7
.. DIAPHRAGM ASSEMBLY
2F3-14940-00-00
Unavailable
8
.. NEEDLE
2H7-14116-06-00
Unavailable
9
.. SPRING
2F0-14589-00-00
Unavailable
10
.. WASHER
2F3-14952-00-00
Unavailable
12
.. RING
2F0-14918-00-00
Unavailable
13
PLATE, NEEDLE FTNG
(2F3-14946-00-00)
Unavailable
14
.. CLIP
2F0-14919-00-00
Unavailable
15
SPRING, DIAPHRAGM
(2H7-14933-00-00)
Unavailable
16
COVER, DIAPHRAGM
(2A2-14958-00-00)
Unavailable
16
COVER, DIAPHRAGM
(2H7-14958-00-00)
Unavailable
17
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
18
JET, MAIN (#130)
620-14231-26-A0
Unavailable
18
.. JET, MAIN (#140)
620-14231-28-00
Unavailable
18
.. JET, MAIN #1375
620-1423A-78-A0
Unavailable
19
WASHER,MAIN JET
137-14153-00-00
Unavailable
20
. JET, PILOT (NO 45)
256-14942-45-00
Unavailable
21
. SCREW
11V-14991-00-00
Unavailable
22
NET, FILTER
1J7-14994-00-00
Unavailable
23
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
24
VALVE SEAT ASSY
1J7-14190-20-00
Unavailable
25
FLOAT
2A2-14985-01-00
Unavailable
26
PIN, FLOAT
537-14186-00-00
Unavailable
27
GASKET, FLOAT CHAMBER
2A2-14984-01-00
Unavailable
28
BODY, FLOAT CHAMBER
(2A2-14981-32-00)
Unavailable
28
BODY, FLOAT CHAMBER
(2H7-14981-32-00)
Unavailable
28
HOLDER
(2H7-14982-32-00)
Unavailable
29
WASHER
256-14956-01-00
Unavailable
30
. SCREW
1A8-14991-00-00
Unavailable
31
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
32
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
33
CAP
8A7-14969-00-00
Unavailable
34
SCREW, PILOT
2A2-14923-00-00
Unavailable
35
.. SPRING, THROTTLE STOP
256-14934-01-00
Unavailable
36
NUT(3DM)
95304-12600-00
Unavailable
37
.. WASHER
256-14953-00-00
Unavailable
38
SEAL
2A2-14997-00-00
Unavailable
39
LEVER, THROTTLE
(2H7-14913-01-00)
Unavailable
39
LEVER, THROTTLE 4
(2H7-14963-00-00)
Unavailable
39
LEVER, THROTTLE 2
(2H7-14964-00-00)
Unavailable
40
VALVE, THROTTLE
(306-14970-00-00)
Unavailable
41
RING
(2H7-14918-00-00)
Unavailable
42
SPRING, THRTL LEVER
(2F3-14931-00-00)
Unavailable
42
SPRING, THRTL 2
(2F3-14932-00-00)
Unavailable
42
SPRING, THROTTLE LEVER
(2H7-14931-00-00)
Unavailable
43
.. SCREW, THROTTLE STOP
256-14922-01-00
Unavailable
44
. ROD, PUSH
584-14992-00-00
Unavailable
45
SPRING, THROTTLE STOP
(584-14934-00-00)
Unavailable
46
. CLIP
256-14937-00-00
Unavailable
47
PLATE
(2F3-14243-00-00)
Unavailable
48
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
49
.. BUSH
1J7-14998-00-00
Unavailable
50
SCREW, THROTTLE
(2H7-14922-00-00)
Unavailable
51
.. PLUNGER, STARTER
2A2-14171-00-00
Unavailable
52
. SPRING, PLUNGER
256-14135-00-00
Unavailable
53
.. CAP, PLUNGER
2A2-14174-00-00
Unavailable
54
.. COVER, PLUNGER CAP
2A2-14173-00-00
Unavailable
55
.. PILOT JET, AIR #210
2A2-14172-42-00
Unavailable
56
LEVER, STARTER
(2A2-14905-00-00)
Unavailable
57
. SCREW
11V-14991-00-00
Unavailable
58
SHAFT, STARTER LEVER
(2H7-14978-00-00)
Unavailable
59
. BUSH
2H7-14998-00-00
Unavailable
60
. CLIP
737-14137-00-00
Unavailable
61
. BRACKET
3H3-14995-00-00
Unavailable
62
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
63
. LEVER, STARTER 1
2F3-14975-00-00
Unavailable
64
. CAP
2F3-14968-00-00
Unavailable
65
. PIN, FLOAT
2F3-14386-00-00
Unavailable
66
. SPRING
2F3-14938-00-00
Unavailable
67
PIPE
(2F3-14996-00-00)
Unavailable
68
. CLIP
2F3-14919-00-00
Unavailable
69
BALL
93501-08001-00
Unavailable
70
SPRING
583-14589-00-00
Unavailable
71
. PIPE, STARTER CON
2H7-14988-00-00
Unavailable
72
PLATE
(2H7-14243-00-00)
Unavailable
73
BRACKET, THROTTLE 1
(2H7-14926-01-00)
Unavailable
74
. CLAMP
90462-13032-00
Unavailable
75
PLATE
(2H7-14146-00-00)
Unavailable
76
SCREW, PAN
98507-06014-00
Unavailable
77
HOSE
90445-10365-00
Unavailable
78
CLIP
90467-090A2-00
Unavailable
79
CLIP
(90468-20072-00)
Unavailable
80
HOSE (L400)
90445-082A9-00
Unavailable
