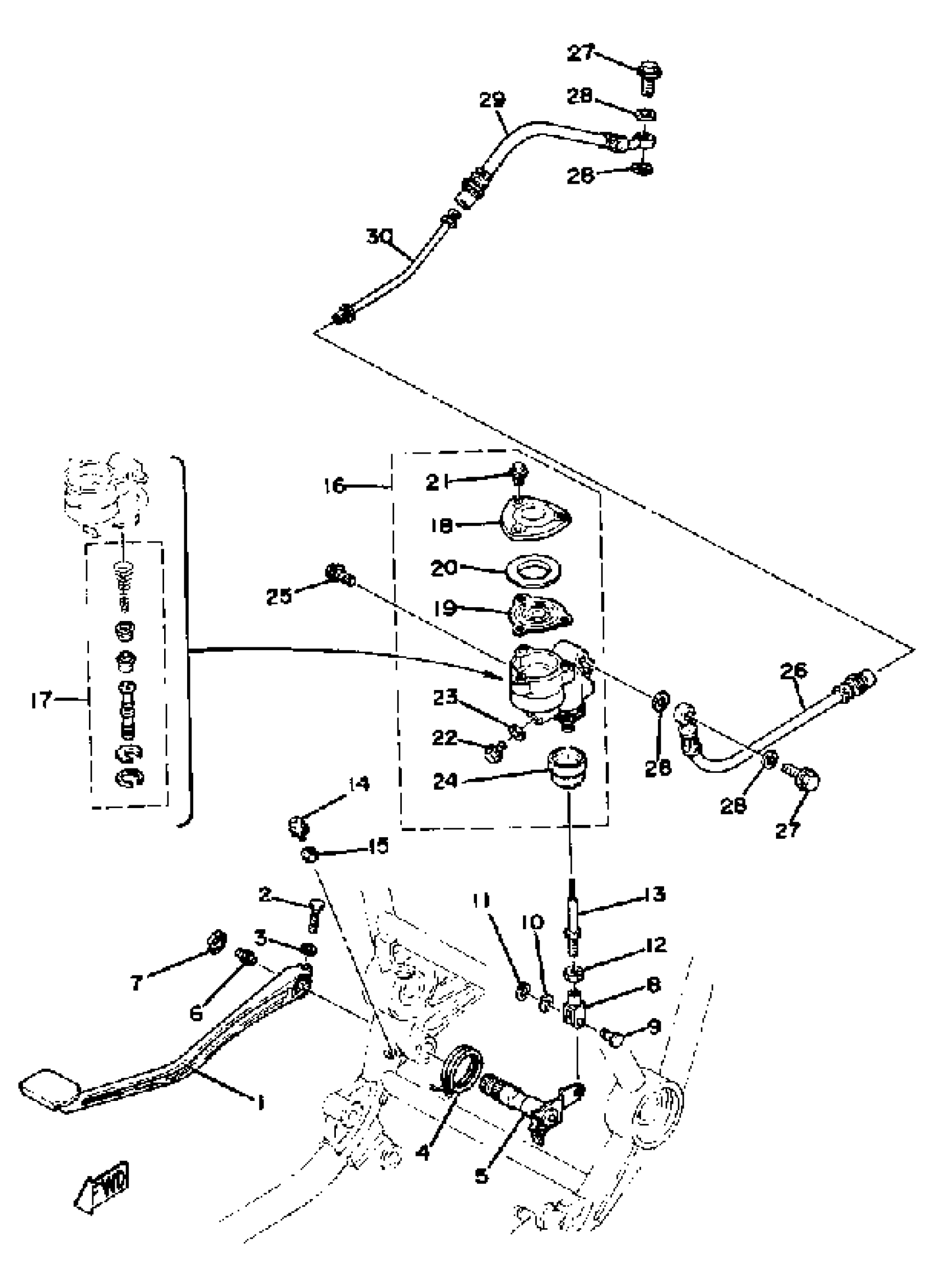

Yamaha XS1100E (XS1100) 1978 BRAKE PEDAL-REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

(2H7-27211-00-93)

Unavailable

2

BOLT (1J7)

90109-06468-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SPRING, TORSION

90508-45363-00

Unavailable

5

SHAFT, BRAKE PEDAL

(2H7-27212-00-00)

Unavailable

6

NIPPLE, GREASE

93700-06M03-00

Unavailable

7

GROMMET

90480-07226-00

Unavailable

8

JOINT

47X-27222-00-00

Unavailable

9

PIN, SPEC''L SHAPE

90249-08124-00

Unavailable

10

WASHER, PLATE 1562722600

90201-08083-00

$9.49

11

CIRCLIP(53L)

99001-06600-00

$1.01

12

. NUT

95380-08700-00

Unavailable

13

ROD, BRAKE

1J7-27231-00-00

Unavailable

14

SCREW 341272170000

90153-06008-00

$7.49

15

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

16

MSTR CYLINDER ASSEMBLY

2H7-25850-51-00

Unavailable

17

. CYLINDER KIT, MASTER

2H7-W0042-00-00

Unavailable

18

. CAP, RESERVOIR

1J3-25852-52-00

Unavailable

19

. DIAPHRAGM RESERVOR

1J3-25854-51-00

Unavailable

20

. BUSH, DIAPHRAGM

1J3-25855-51-00

Unavailable

21

. SCREW, HEXAGON

90153-05014-00

Unavailable

22

. SCREW, hexagon

90153-10015-00

Unavailable

23

. WASHER, plate

90201-10610-00

Unavailable

24

. BOOT, MASTER CYLINDER

1J3-25862-50-00

Unavailable

25

BOLT, FLANGE(4HM)

95814-08020-00

Unavailable

26

HOSE, BRAKE

2H7-25874-01-00

Unavailable

27

BOLT, UNION(3GM)

90401-10159-00

Unavailable

28

WASHER, PLATE(481)

90201-10118-00

Unavailable

29

HOSE, BRAKE

2H7-25874-50-00

Unavailable

30

PIPE, BRAKE

2H7-25871-00-00

Unavailable
