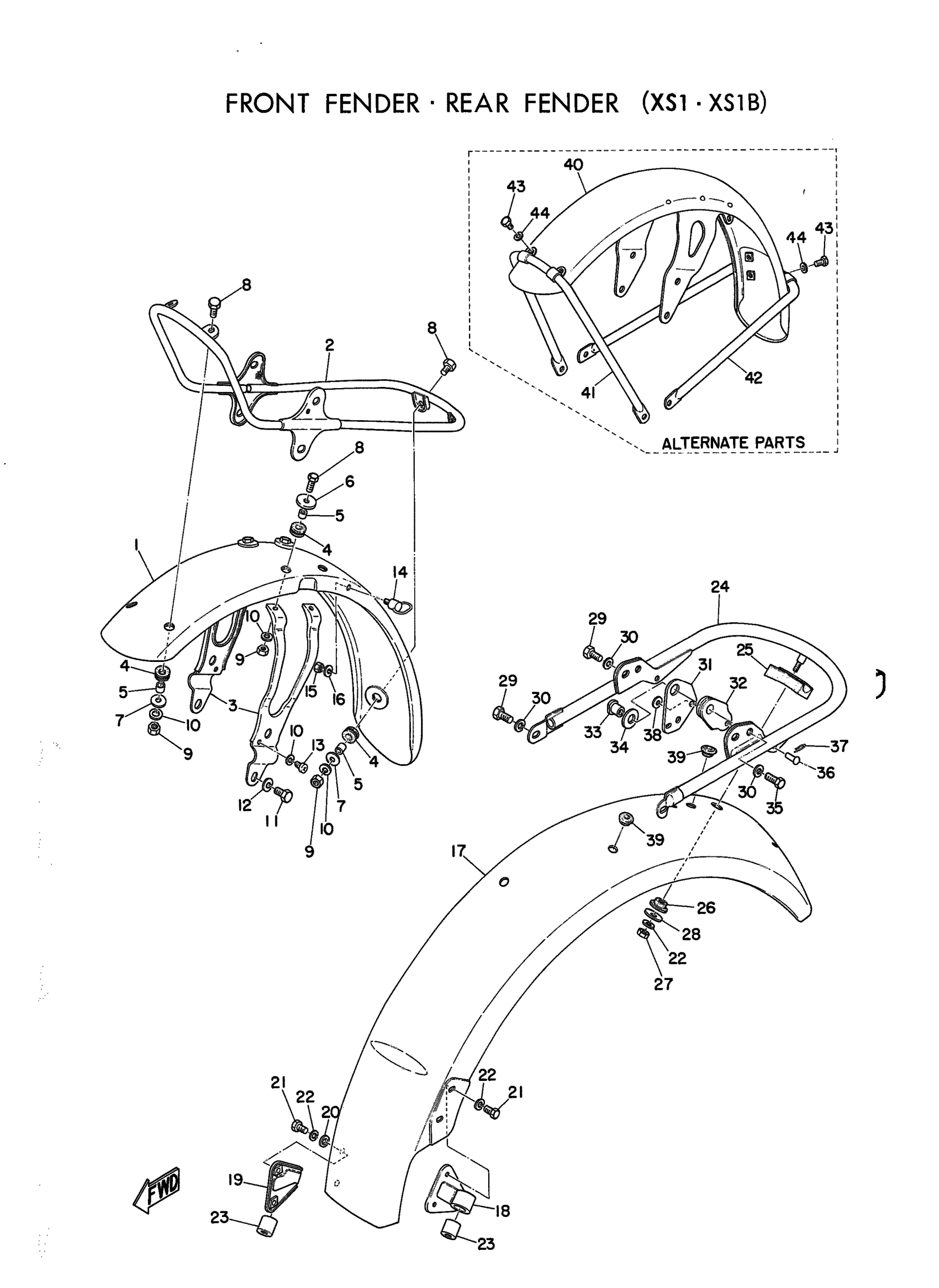

Yamaha XS1 (XS1_XS1) 1970 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(256-21510-10-93)

Unavailable

2

BRACKET, FENDER

(256-21512-00-00)

Unavailable

3

STAY, FENDER 1

(256-21513-00-00)

Unavailable

4

GROMMET (1E5)

90480-13163-00

$5.55

5

COLLAR(8R4)

90387-062N2-00

$6.46

6

WASHER, SPEC''L SHAP (256-21515-00)

90209-06026-00

Unavailable

7

WASHER, PLATE

90201-06020-00

$5.86

8

BOLT(3DM)

97024-06020-00

$5.75

9

NUT, HEXAGON

95380-06600-00

$4.11

10

WASHER, SPRING

92995-06100-00

$2.95

11

BOLT(62E)

97013-08012-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

13

SCREW, PAN HEAD(6A3)

97885-06008-00

$1.07

14

HOLDER, CABLE

(174-21518-00-00)

Unavailable

15

NUT, HEXAGON

95380-06600-00

$4.11

16

WASHER, SPRING

92995-06100-00

$2.95

17

FENDER, REAR

(256-21611-00-93)

Unavailable

18

STAY, FENDER 1

256-21613-00-00

Unavailable

19

STAY, FENDER 2

256-21614-00-00

Unavailable

20

WASHER, PLATE

90201-06020-00

$5.86

21

BOLT (661)

97013-06012-00

Unavailable

22

WASHER, SPRING

92995-06100-00

$2.95

23

DAMPER 1

256-21638-00-00

Unavailable

24

STAY, REAR

(256-21645-00-00)

Unavailable

24

STAY, REAR

(256-21645-01-00)

Unavailable

25

DAMPER 2

256-21639-00-00

Unavailable

26

DAMPER

256-21649-00-00

Unavailable

27

NUT(650)

95380-06700-00

Unavailable

28

WASHER PLATE 137241870000

90201-06072-00

Unavailable

29

BOLT, HEXAGON

97013-08016-00

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

31

STAY, FLASHER 1

(256-83318-00-00)

Unavailable

32

DAMPER, FLASHER

(256-83341-00-00)

Unavailable

33

NUT, REAR FENDER

248-21635-00-00

Unavailable

34

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

35

BOLT(JA9)

90101-08691-00

Unavailable

36

PIN, CLEVIS

(91503-06018-00)

Unavailable

37

CLIP (156-83525-00)

90468-10050-00

Unavailable

38

WASHER, PLATE

90201-06020-00

$5.86

39

GROMMET 152845180000

90480-12013-00

Unavailable

40

FENDER, FRONT

(256-21510-10-93)

Unavailable

41

STAY, FENDER 1

(256-21513-10-93)

Unavailable

42

STAY, FENDER 2

(256-21514-10-93)

Unavailable

43

BOLT (661)

97013-06012-00

Unavailable

44

WASHER, SPRING

92995-06100-00

$2.95
