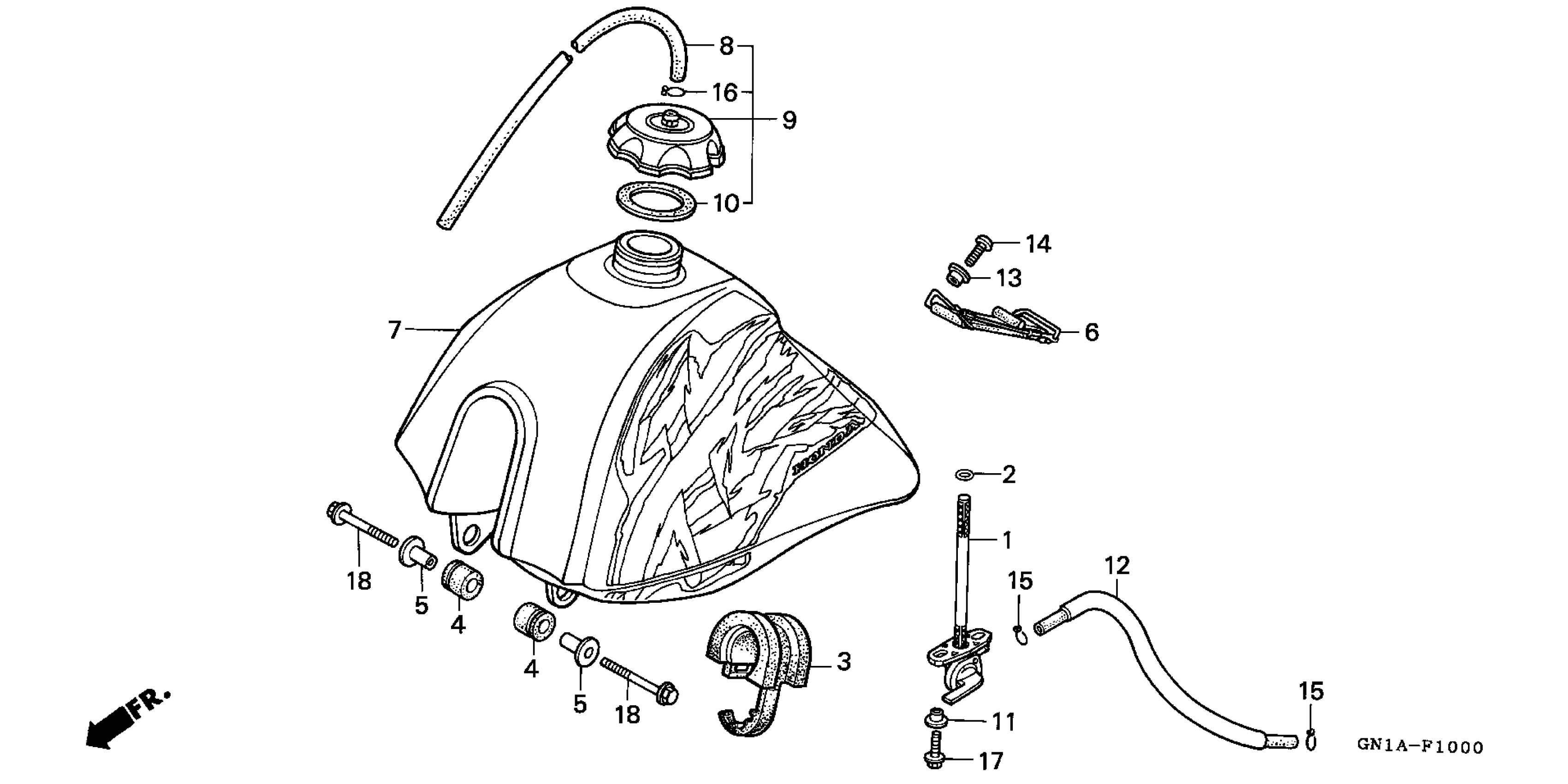

Honda XR80RA (96) MOTORCYCLE, JPN, VIN# JH2HE010-TK500001 TO JH2HE010-TK504939 FUEL TANK 95-97 Diagram

PETCOCK ASSY.

16950-GN1-871

$96.27

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER, TANK SETTING

17504-GN1-770

$15.40

RUBBER, FUEL TANK MOUNTING

17508-KA3-710

$8.75

COLLAR, FUEL TANK SETTING

17509-KA3-710

$11.54

BAND, RR. TANK

17516-GF5-000

$37.83

TANK SET, FUEL (TYPE1) (WL) (NOT AVAILABLE)

17520-GN1-A00ZA

Unavailable

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

CAP ASSY., FUEL TANK

17620-KT1-780

$31.82

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

TUBE, FUEL

17681-GN1-000

$9.82

COLLAR, REFLECTOR SETTING

90129-463-770

$3.15

SCREW, PAN (6X16)

93500-06016-0H

$1.49

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X40)

96300-06040-00

$2.00
