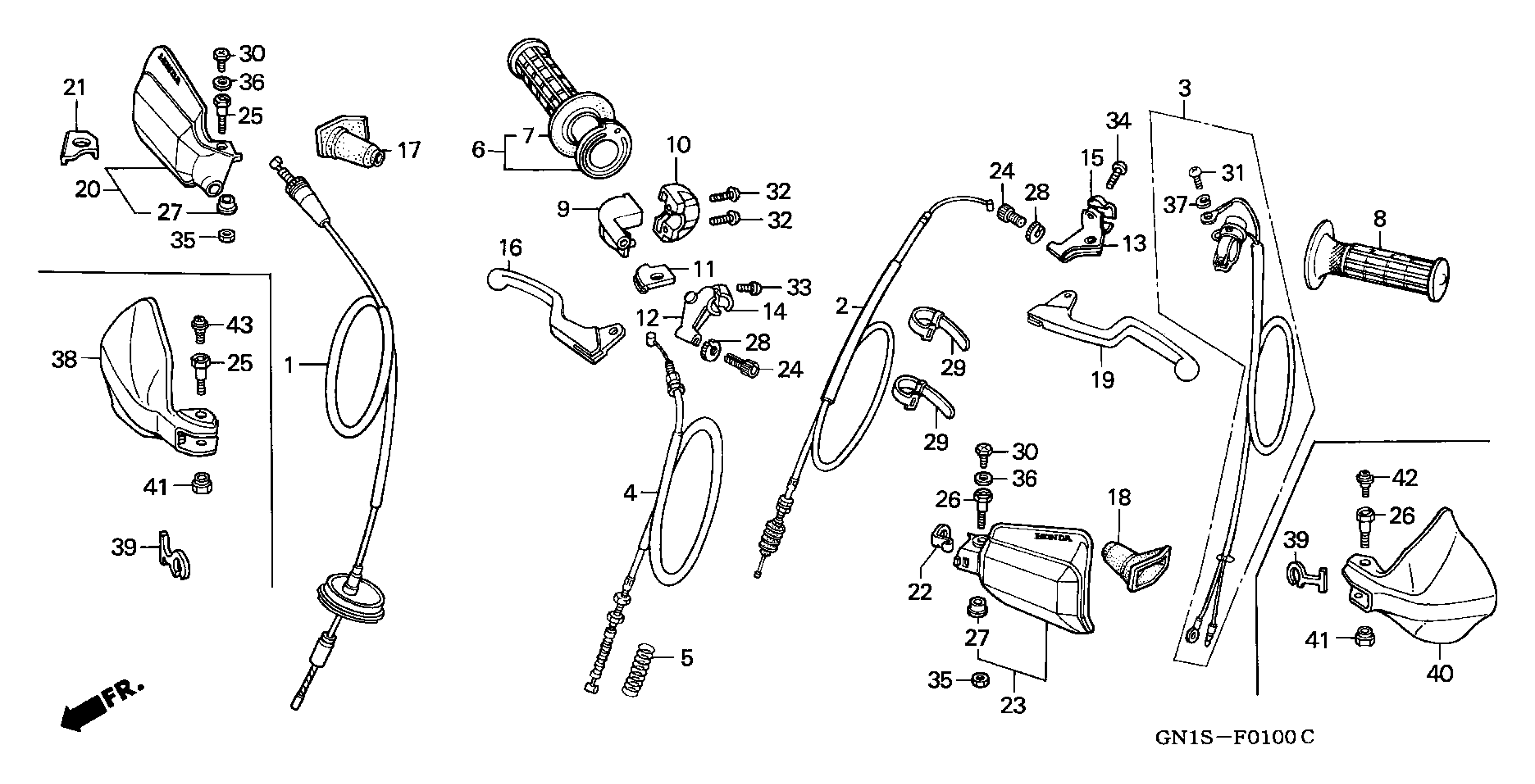

Honda XR80RA (95) MOTORCYCLE, JPN, VIN# JH2HE010-SK400001 HANDLE SWITCH + CABLES Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-GN1-307

Unavailable

2

CABLE, CLUTCH

22870-GN1-000

$27.42

3

SWITCH ASSY., ENGINE STOP This part replaces 35130-KN4-851.

35130-KN4-852

$29.55

3

SWITCH ASSY., ENGINE STOP

35130-KN4-852

$29.55

4

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-GN1-760

Unavailable

5

SPRING, FR. BRAKE CABLE

45454-360-010

$4.77

6

GRIP, THROTTLE (COO)

53140-GFW-305

$30.58

6

GRIP, THROTTLE (COO) This part replaces 53140-446-000.

53140-GFW-305

$30.58

6

GRIP, THROTTLE (COO) This part replaces 53140-446-010.

53140-GFW-305

$30.58

7

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$10.87

8

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$8.69

9

HOUSING, THROTTLE (UPPER) This part replaces 53167-KA2-000.

53167-KA2-010

$19.19

10

HOUSING, THROTTLE (LOWER) This part replaces 53168-KA2-000.

53168-KA2-010

$17.92

10

HOUSING, THROTTLE (LOWER)

53168-KA2-010

$17.92

11

SLIDER, THROTTLE

53169-KA2-000

$4.65

12

BRACKET, R. HANDLEBAR (NOT AVAILABLE)

53171-KA3-710

Unavailable

13

BRACKET, L. HANDLEBAR

53172-429-770

$30.43

14

HOLDER, LEVER BRACKET

53173-KA3-710

Unavailable

15

HOLDER, LEVER BRACKET

53173-376-000

$10.04

16

LEVER, R. HANDLEBAR (NOT AVAILABLE)

53175-KF0-000

Unavailable

17

COVER, R. HANDLEBAR

53176-KK0-000

Unavailable

18

COVER, L. HANDLE LEVER

53177-KN5-670

$8.66

19

LEVER, L. HANDLEBAR (NOT AVAILABLE)

53178-GM2-010

Unavailable

20

GUARD, R. KNUCKLE *NH138* (SHASTA WHITE) (NOT AVAILABLE) GUARD, R. KNUCKLE *R134*

53180-KK0-000ZB

Unavailable

21

PLATE, GUARD SETTING *NH138* (SHASTA WHITE) PLATE, GUARD SETTING *R134*

53181-KK0-000ZB

Unavailable

22

PLATE, GUARD SETTING

53181-KN5-670

$6.29

23

GUARD, L. KNUCKLE *NH138* (SHASTA WHITE) GUARD, L. KNUCKLE *R134*

53185-KN5-670ZB

$33.17

24

BOLT, WIRE ADJUSTING

53192-268-000

$6.23

25

BOLT, HANDLEBAR PIVOT

90114-KF0-770

Unavailable

26

BOLT, LEVER PIVOT

90114-KN5-670

$8.29

27

COLLAR (6X4)

90127-KF0-770

$3.26

28

NUT, FIXING

90321-315-670

$6.97

29

BAND, WIRE (95MM)

90650-KV6-003

$2.97

30

BOLT, RECESSED (5X8)

92301-05008-0A

$1.22

31

SCREW, PAN (4X12)

93500-04012-0A

$0.76

31

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.76

32

SCREW, PAN (5X16)

93500-05016-0G

$0.84

33

SCREW, PAN (5X18)

93500-05018-0G

$0.43

34

SCREW, PAN (5X18)

93500-05018-0G

$0.43

35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

35

NUT, HEX. (6MM)

94001-06200-0S

$1.21

36

WASHER, PLAIN (5MM)

94103-05000

$0.57

37

WASHER, SPRING (4MM)

94111-04000

$0.99
