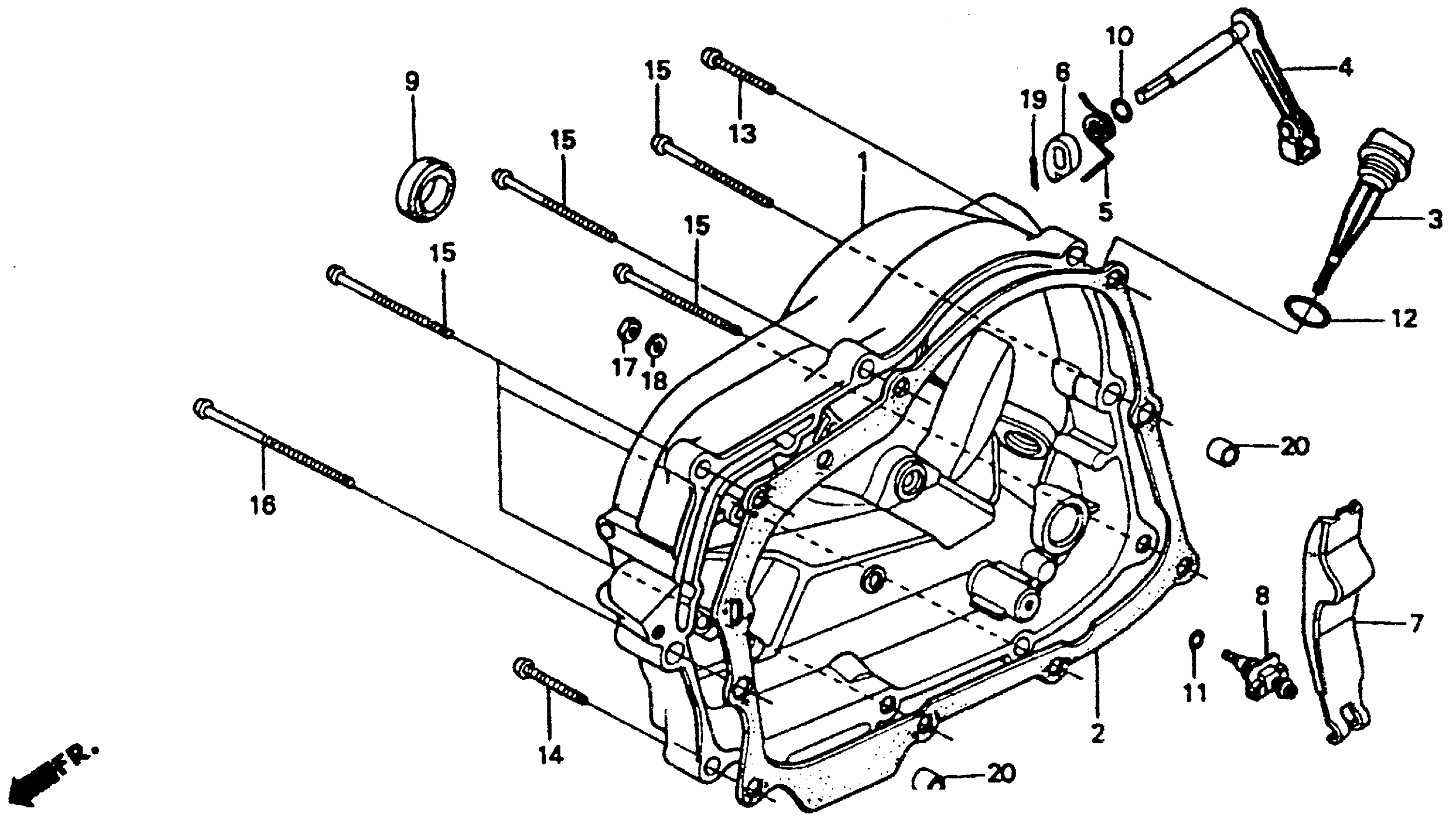

Honda XR80RA (94) MOTORCYCLE, JPN, VIN# JH2HE010-RK300001 TO JH2HE010-RK399999 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-GN1-305

Unavailable

COVER, R. CRANKCASE This part replaces 11330-GN1-870.

11330-GN1-305

Unavailable

COVER, R. CRANKCASE This part replaces 11330-GN1-871.

11330-GN1-305

Unavailable

GASKET, R. This part replaces 11393-KN4-750.

11393-KN4-752

$16.94

GASKET, R. This part replaces 11393-KN4-751.

11393-KN4-752

$16.94

DIPSTICK, OIL

15650-KA9-680

$7.78

LEVER, CLUTCH

22810-GN1-760

$44.64

SPRING, CLUTCH LEVER

22815-149-000

$2.54

CAM, CLUTCH LIFTER

22821-116-000

$7.75

LEVER, CLUTCH ADJUSTING

22830-436-000

$22.56

SCREW, CLUTCH ADJUSTING

22831-436-000

$26.90

OIL SEAL (18X29X7)

91204-286-003

$4.31

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

O-RING (6MM)

91301-704-000

$2.92

O-RING (18X3)

91307-035-000

$2.92

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

BOLT, FLANGE (6X35)

96001-06035-07

$2.06

BOLT, FLANGE (6X80)

96001-06080-07

$2.23

BOLT, FLANGE (6X100)

96001-06100-07

$2.15

NUT, HEX. (6MM)

94001-06070-0S

$1.49

WASHER, PLAIN (6MM)

94101-06700

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25
