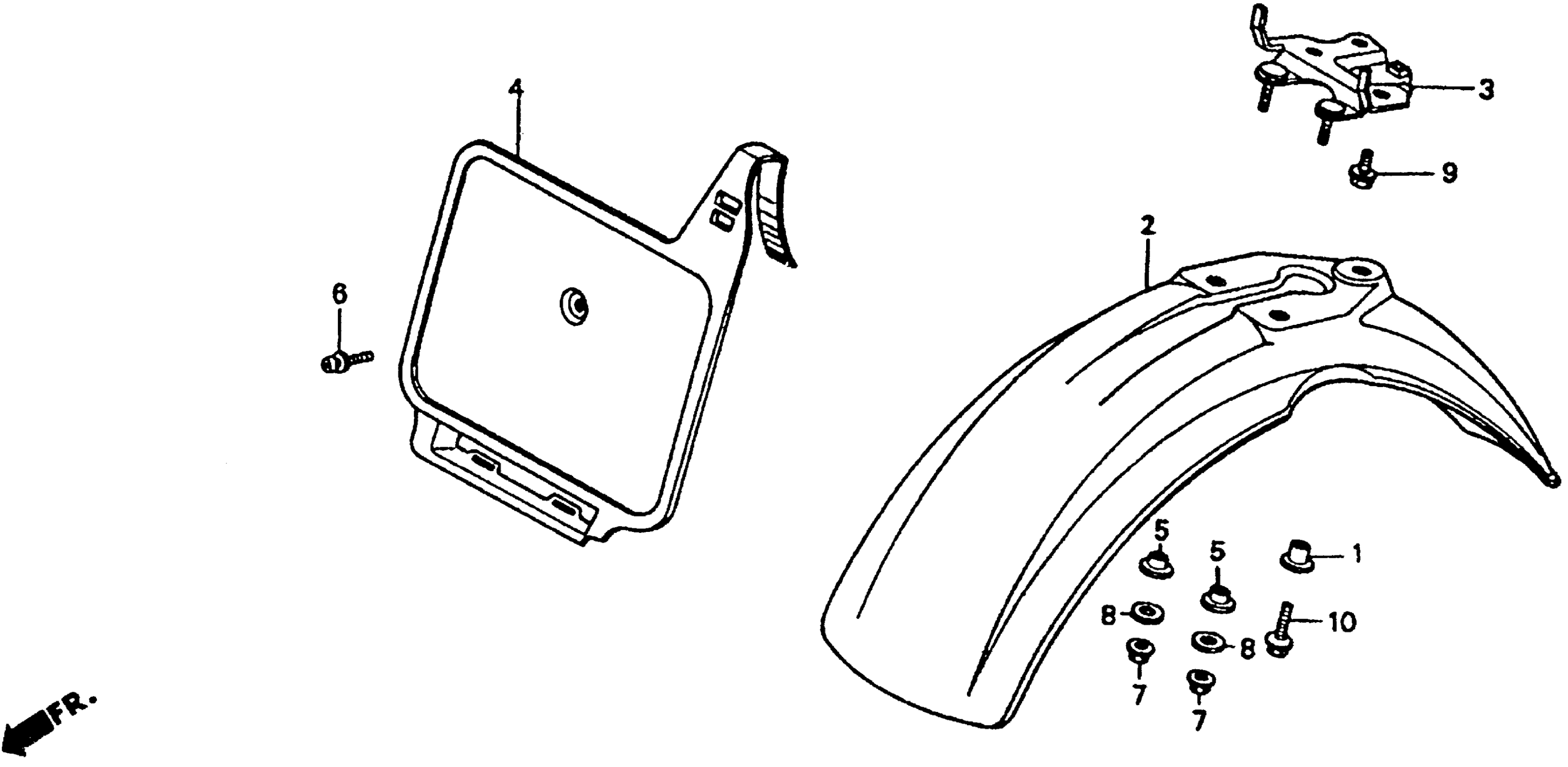

Honda XR80RA (94) MOTORCYCLE, JPN, VIN# JH2HE010-RK300001 TO JH2HE010-RK399999 FRONT FENDER Diagram

COLLAR, RESERVE TANK SETTING

19107-415-000

$3.10

FENDER, FR. *NH138* (SHASTA WHITE) (NOT AVAILABLE)

61100-GC4-730ZB

Unavailable

STAY, FR. FENDER *NH1* (BLACK)

61102-GN1-000ZC

Unavailable

PLATE, FR. NUMBER *NH196* (ROSS WHITE) This part replaces 61136-GN1-000ZB.

61136-GN1-000ZE

$39.36

PLATE, FR. NUMBER *NH196* (ROSS WHITE)

61136-GN1-000ZE

$39.36

COLLAR (6.4)

90522-GN1-760

Unavailable

SCREW-WASHER (5X12)

93891-05012-00

$1.49

SCREW-WASHER (5X12) This part replaces 93891-05012-10.

93891-05012-00

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X20)

96300-06020-00

$1.49
