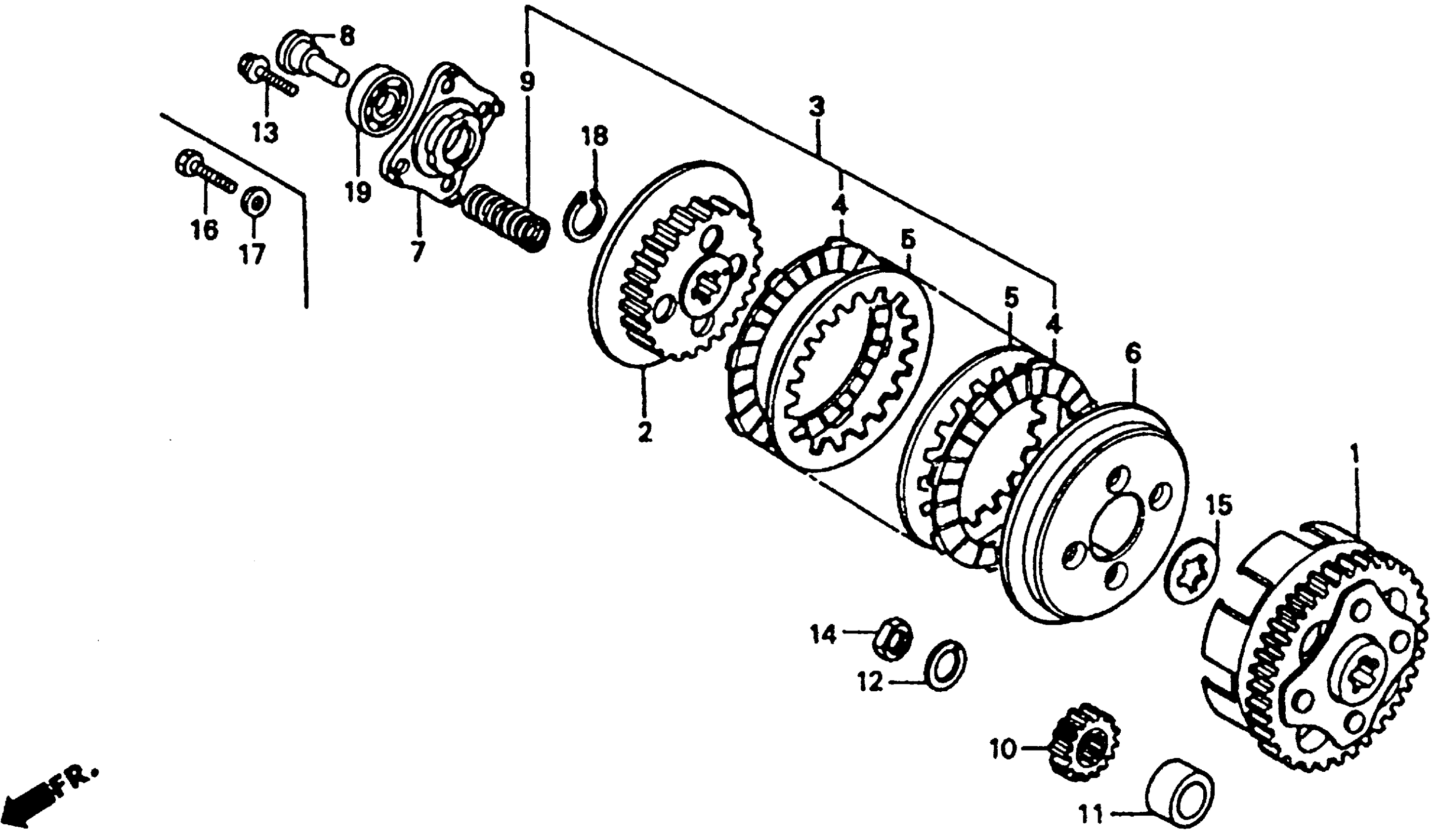

Honda XR80RA (94) MOTORCYCLE, JPN, VIN# JH2HE010-RK300001 TO JH2HE010-RK399999 CLUTCH Diagram

CLUTCH OUTER (71T)

22100-149-000

$170.49

CENTER, CLUTCH

22121-115-010

$62.68

DISK, CLUTCH FRICTION

22201-166-000

$16.07

DISK, CLUTCH FRICTION | (Optional). This part replaces 22201-GC4-701.

22201-MR8-000

$13.59

DISK, CLUTCH FRICTION | (Optional). This part replaces 22201-GS2-000.

22201-MR8-000

$13.59

DISK, CLUTCH FRICTION | (Optional).

22201-MR8-000

$13.59

PLATE, CLUTCH

22311-KN4-680

$6.02

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.02

PLATE, CLUTCH PRESSURE

22350-115-020

$37.22

PLATE, CLUTCH LIFTER

22361-107-000

$16.12

PIN, CLUTCH LIFTER GUIDE

22366-115-000

$29.10

SPRING, CLUTCH

22401-HB6-000

$4.58

GEAR, PRIMARY DRIVE (16T)

23121-149-000

Unavailable

COLLAR, PRIMARY DRIVE GEAR

23122-149-000

$8.49

WASHER, LOCK

90033-115-000

Unavailable

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

Unavailable

NUT, SPECIAL (14MM)

90201-836-000

Unavailable

WASHER B, SPLINE (17MM)

90462-115-010

$5.41

CIRCLIP (OUTER) (17MM)

94510-17000

$1.12

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.32
