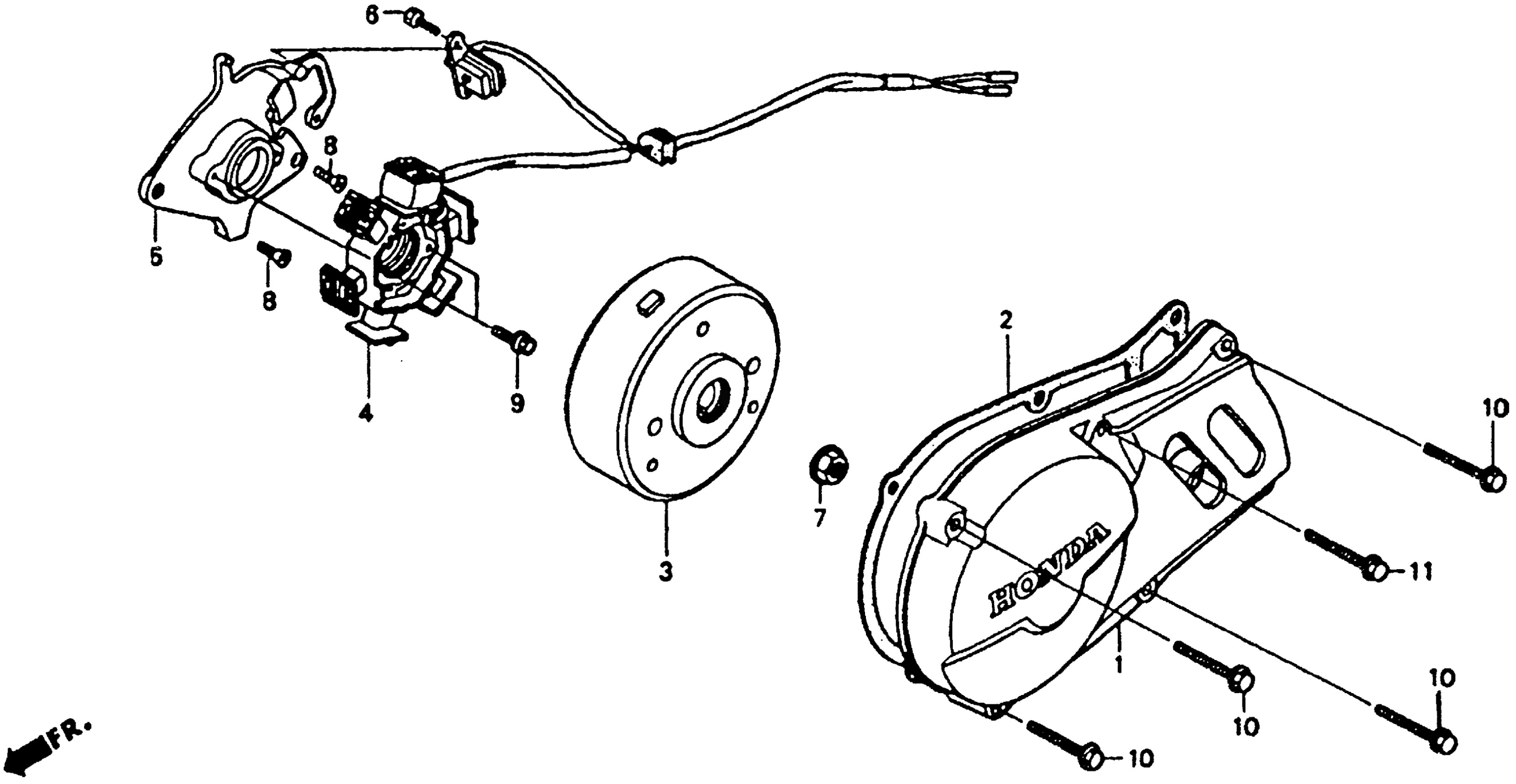

Honda XR80RA (93) MOTORCYCLE, JPN, VIN# JH2HE010-PK200001 TO JH2HE010-PK204429 LEFT CRANKCASE COVER 93-94 Diagram

#

Description

Price

1

COVER, L. CRANKCASE This part replaces 11341-GN1-870.

11341-GN1-872

$62.02

1

COVER, L. CRANKCASE This part replaces 11341-GN1-871.

11341-GN1-872

$62.02

1

COVER, L. CRANKCASE

11341-GN1-872

$62.02

2

GASKET, L. This part replaces 11394-KN4-750.

11394-KN4-752

$10.66

2

GASKET, L. This part replaces 11394-KN4-751.

11394-KN4-752

$10.66

3

FLYWHEEL (MITSUBA)

31110-GN1-691

$237.28

4

STATOR (MITSUBA)

31120-GN1-691

$218.94

5

BASE, STATOR

31131-GT9-000

$55.06

6

SET (SOCKET5X10) This part replaces 90089-GT9-000.

90089-GT9-305

$2.93

7

NUT, FLANGE (12MM)

90309-375-003

$7.93

8

SCREW, FLAT (6X16)

93600-06016-0A

$0.91

9

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

10

BOLT, FLANGE (6X35)

96001-06035-07

$2.59

11

BOLT, FLANGE (6X35)

96001-06035-07

$2.59
