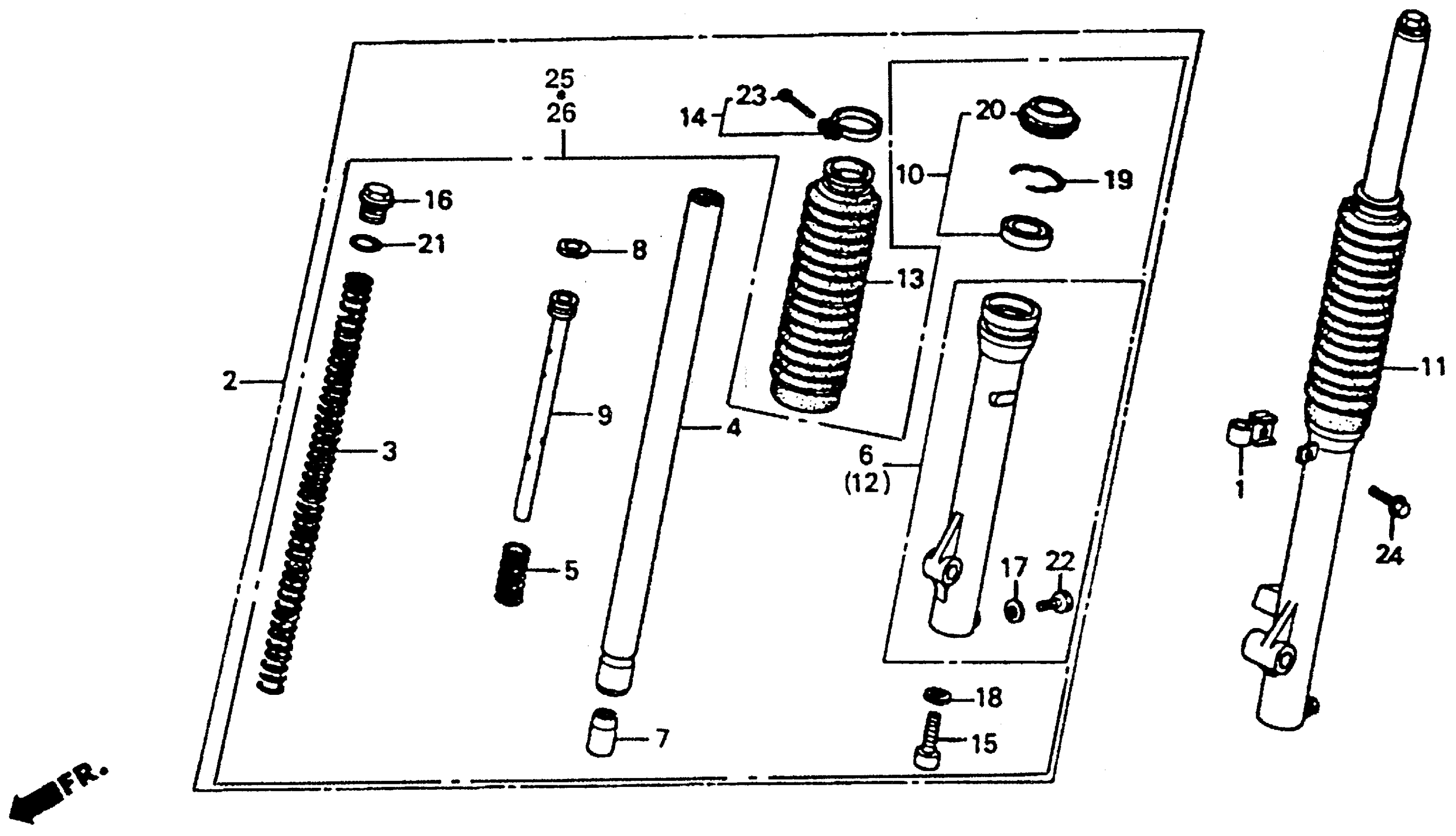

Honda XR80RA (93) MOTORCYCLE, JPN, VIN# JH2HE010-PK200001 TO JH2HE010-PK204429 FRONT FORK 88-94 Diagram

#

Description
Price

1

CLAMP, BRAKE CABLE

45461-GN1-000

$4.99

2

FORK ASSY., R. FR. *B106* (CAPRI BLUE) (NOT AVAILABLE)

51400-GN1-763ZB

Unavailable

3

SPRING, FR. FORK (SHOWA)

51401-GN1-003

Unavailable

4

PIPE, FR. FORK (SHOWA)

51410-GN1-003

$160.63

5

SPRING, REBOUND (SHOWA)

51412-KA8-711

$7.15

6

CASE, R. (LOWER) This part replaces 51420-GN1-762.

51420-GN1-763

Unavailable

6

CASE, R. (LOWER)

51420-GN1-763

Unavailable

7

PIECE, OIL LOCK (SHOWA)

51432-GN1-003

$18.91

8

RING, PISTON

51437-GM0-003

$4.84

8

RING, PISTON This part replaces 51437-383-721.

51437-GM0-003

$4.84

9

PIPE, SEAT (SHOWA)

51470-GN1-003

Unavailable

10

SEAL SET, FR. FORK

51490-GN1-013

$26.63

11

FORK ASSY., L. FR. *B106* (CAPRI BLUE) (NOT AVAILABLE)

51500-GN1-762ZB

Unavailable

12

CASE, L. (LOWER) (NOT AVAILABLE)

51520-GN1-761

Unavailable

13

BOOT, FR. FORK *B106* (CAPRI BLUE)

51611-GN1-762ZB

Unavailable

14

BAND, FR. FORK BOOT

51612-KF9-900

$9.89

15

BOLT, SOCKET (8X27)

90116-383-721

$4.89

16

BOLT, FORK (SHOWA)

90123-KA8-771

$22.11

17

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.28

18

WASHER, SPECIAL (8MM)

90544-283-000

$2.65

19

RING, OIL SEAL STOPPER (SHOWA)

90601-383-721

$4.89

20

DUST SEAL (SHOWA)

91254-GN1-013

$12.71

21

O-RING (17.8X2.4) (SHOWA)

91256-383-721

$2.12

22

BOLT, HEX. (6X8)

92101-06008-0A

$1.26

23

SCREW, PAN (3X20)

93500-03020-0G

$0.69

24

BOLT, FLANGE (6X16)

95701-06016-00

$1.50
