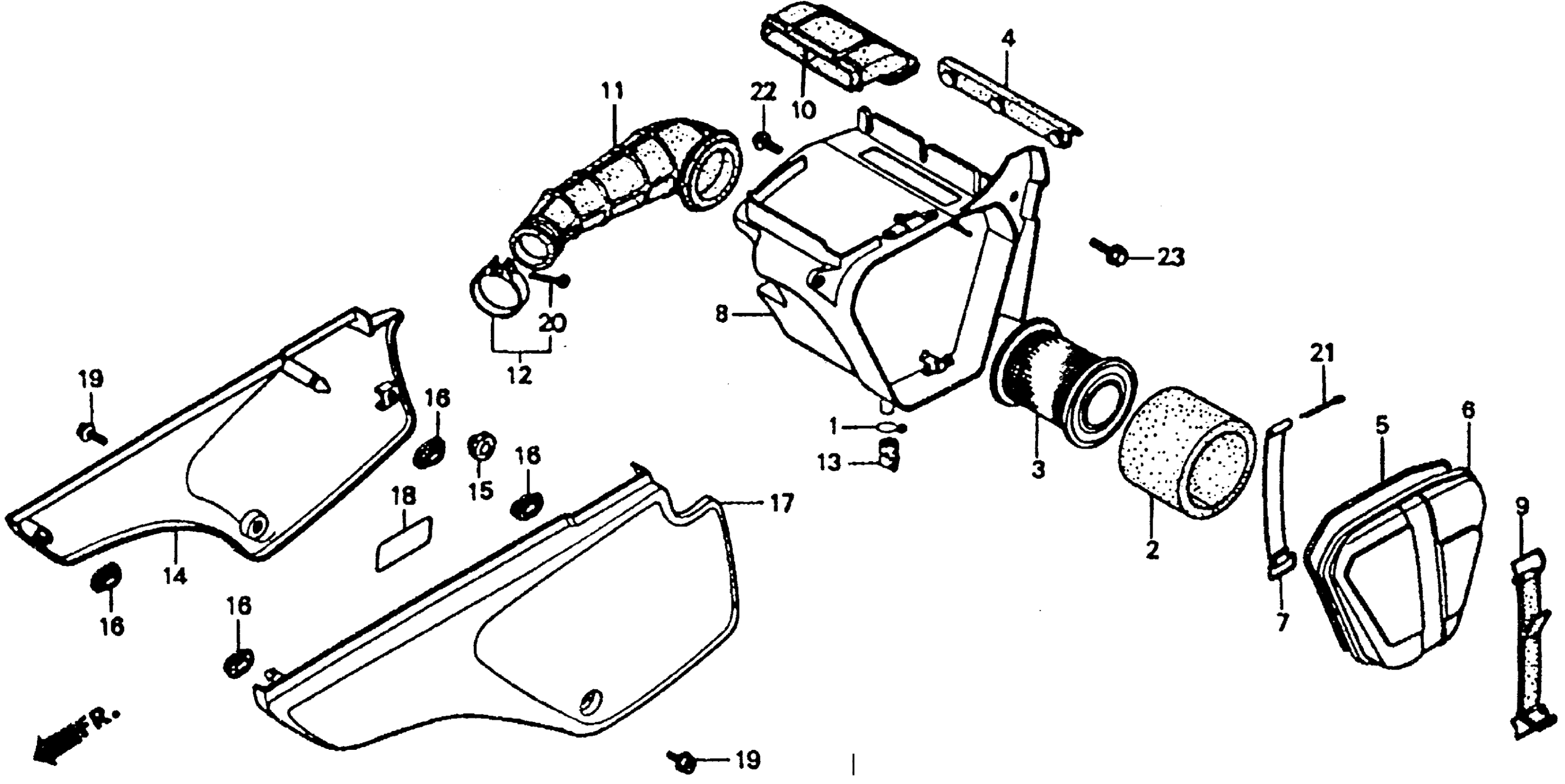

Honda XR80RA (93) MOTORCYCLE, JPN, VIN# JH2HE010-PK200001 TO JH2HE010-PK204429 AIR CLEANER + SIDE COVERS Diagram

CLIP, BREATHER TUBE

15772-292-010

$2.80

AIR CLEANER This part replaces 17211-GN1-760.

17254-HF7-000

$8.77

AIR CLEANER

17254-HF7-000

$8.77

HOLDER, AIR CLEANER ELEMENT

17212-KJ2-003

$46.25

SPLASH GUARD, AIR CLEANER

17215-GN1-000

$10.51

SEAL, AIR CLEANER COVER This part replaces 17219-GN1-000.

17222-MN4-405

$6.97

SEAL, AIR CLEANER COVER

17222-MN4-405

$6.97

COVER, AIR CLEANER

17220-GN1-760

$24.33

SPRING

17225-GN1-000

$8.23

HOUSING, AIR CLEANER

17230-GN1-760

Unavailable

BAND, AIR CLEANER COVER

17235-GN1-680

$11.02

DUCT, AIR IN.

17240-KB7-000

$33.51

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-GN1-000

Unavailable

BAND, AIR CLEANER CONNECTING TUBE

17255-GN1-000

$7.60

TUBE, DRAIN

17358-170-000

$3.58

COVER SET, R. SIDE *NH138* (SHASTA WHITE) This part replaces 83501-GN1-870ZA.

83501-GN1-870ZD

Unavailable

RUBBER, SIDE COVER

83512-KA4-700

$4.37

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

COVER SET, L. SIDE *NH138* (SHASTA WHITE) This part replaces 83601-GN1-870ZA.

83601-GN1-870ZD

Unavailable

BOLT, FLANGE (6MM)

90111-KM1-000

$4.05

SCREW, PAN (4X20)

93500-04020-0G

$0.72

PIN, SPLIT (3.0X45)

94201-30450

$0.96

BOLT, FLANGE (6X12)

95701-06012-00

$1.84

BOLT, FLANGE (6X14)

95701-06014-00

$0.93
