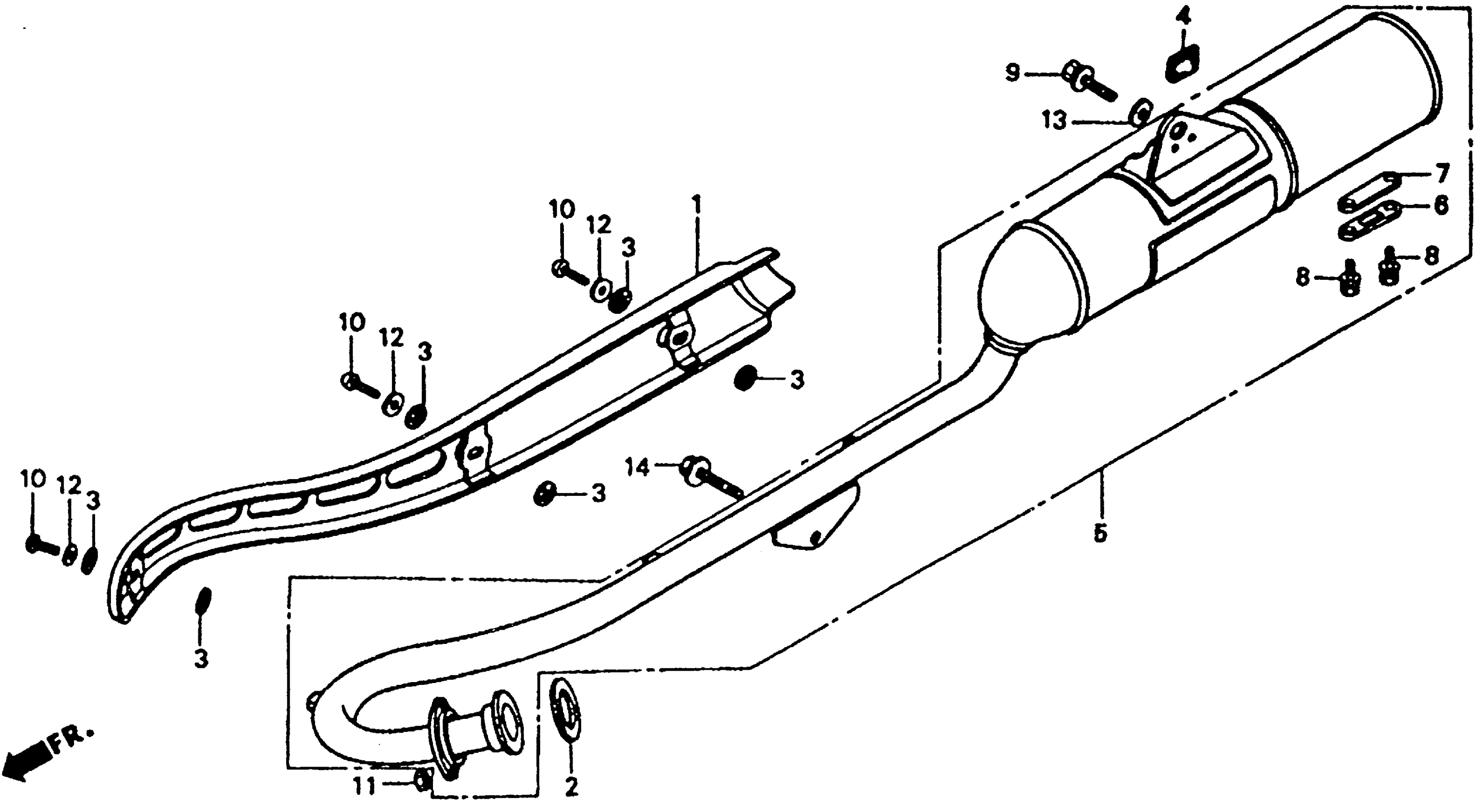

Honda XR80RA (91) MOTORCYCLE, JPN, VIN# JH2HE010-MK100001 TO JH2HE010-MK102778 MUFFLER Diagram

PROTECTOR, EX. PIPE This part replaces 18240-GN1-000.

18240-KN4-780

Unavailable

PROTECTOR, EX. PIPE

18240-KN4-780

Unavailable

GASKET, EX. PIPE This part replaces 18291-028-000.

18291-028-306

$7.30

GASKET, EX. PIPE

18291-028-306

$7.30

RUBBER, PROTECTOR GASKET

18293-147-000

$4.04

MUFFLER, EX. This part replaces 18300-GN1-760.

18300-GN1-761

Unavailable

MUFFLER, EX.

18300-GN1-761

Unavailable

LID, MUFFLER

18373-429-010

$9.15

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

GASKET, MUFFLER LID

18374-MN1-880

$4.21

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

BOLT-WASHER (6X12)

93401-06012-07

$1.62

BOLT, FLANGE (8X20) This part replaces 96400-08020-07.

96300-08020-07

$2.00

BOLT, FLANGE (8X20)

96300-08020-07

$2.00

BOLT, FLANGE (6X8)

96001-06008-07

$1.49

NUT, CAP (6MM)

90304-438-000

$7.14

WASHER, PLAIN (6MM)

94101-06700

$1.49

WASHER, PLAIN (8MM)

94101-08700

$1.49

BOLT, FLANGE (8X14)

96300-08014-07

$1.90
