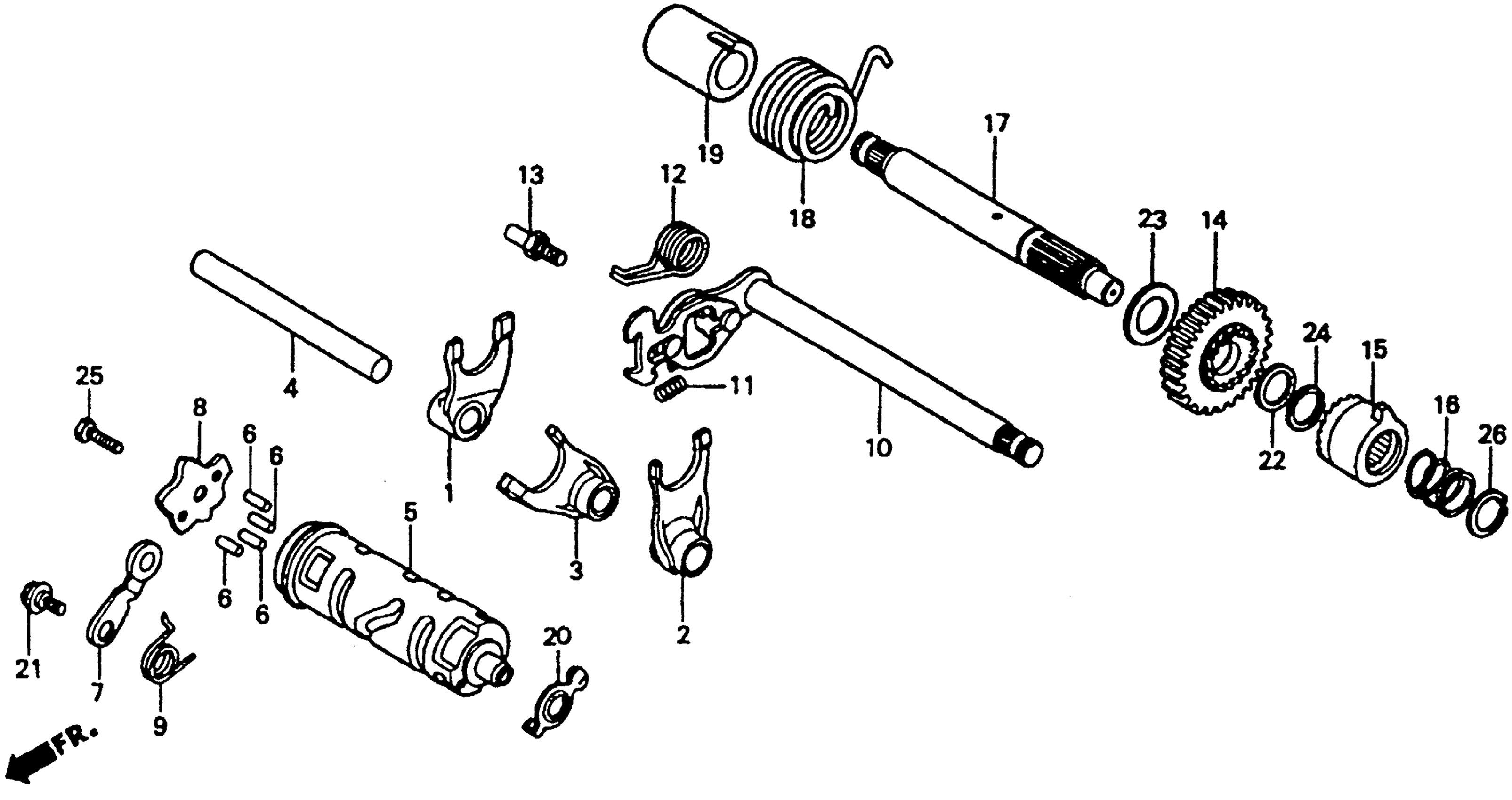

Honda XR80RA (91) MOTORCYCLE, JPN, VIN# JH2HE010-MK100001 TO JH2HE010-MK102778 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-149-000

Unavailable

2

FORK, L. GEARSHIFT

24221-115-000

$67.56

3

FORK, CENTER GEARSHIFT

24231-115-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-149-000

Unavailable

5

DRUM, GEARSHIFT

24301-149-000

$96.84

6

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

6

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

7

STOPPER, GEARSHIFT DRUM

24430-115-010

$12.67

8

PLATE, GEARSHIFT DRUM STOPPER

24435-115-040

$11.30

9

SPRING, SHIFT DRUM STOPPER

24436-149-000

$2.90

10

SPINDLE, GEARSHIFT

24610-GN1-000

$69.71

11

SPRING, GEARSHIFT ARM

24641-115-010

$2.92

12

SPRING, GEARSHIFT RETURN

24651-107-000

$5.81

13

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

14

PINION, KICK STARTER (27T)

28211-436-000

Unavailable

15

RATCHET, STARTER DRIVE

28221-149-010

Unavailable

16

SPRING, RATCHET

28223-149-000

$3.10

17

SPINDLE, KICK STARTER

28251-436-010

$72.74

18

SPRING, KICK STARTER (CHUO HATSUJO)

28281-149-003

$10.36

18

SPRING, KICK STARTER (CHUO HATSUJO) This part replaces 28281-149-000.

28281-149-003

$10.36

19

COLLAR, KICK STARTER SPRING

28282-149-000

Unavailable

20

ROTOR, NEUTRAL SWITCH

35753-KR3-010

$2.75

20

ROTOR, NEUTRAL SWITCH This part replaces 35753-115-000.

35753-KR3-010

$2.75

21

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

22

WASHER (18MM)

90401-149-000

$2.49

23

WASHER, THRUST (18MM)

90452-701-000

$2.34

24

CIRCLIP (18MM)

90601-149-000

$2.30

25

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

26

CIRCLIP (OUTER) (18MM)

94510-18120

$1.49
