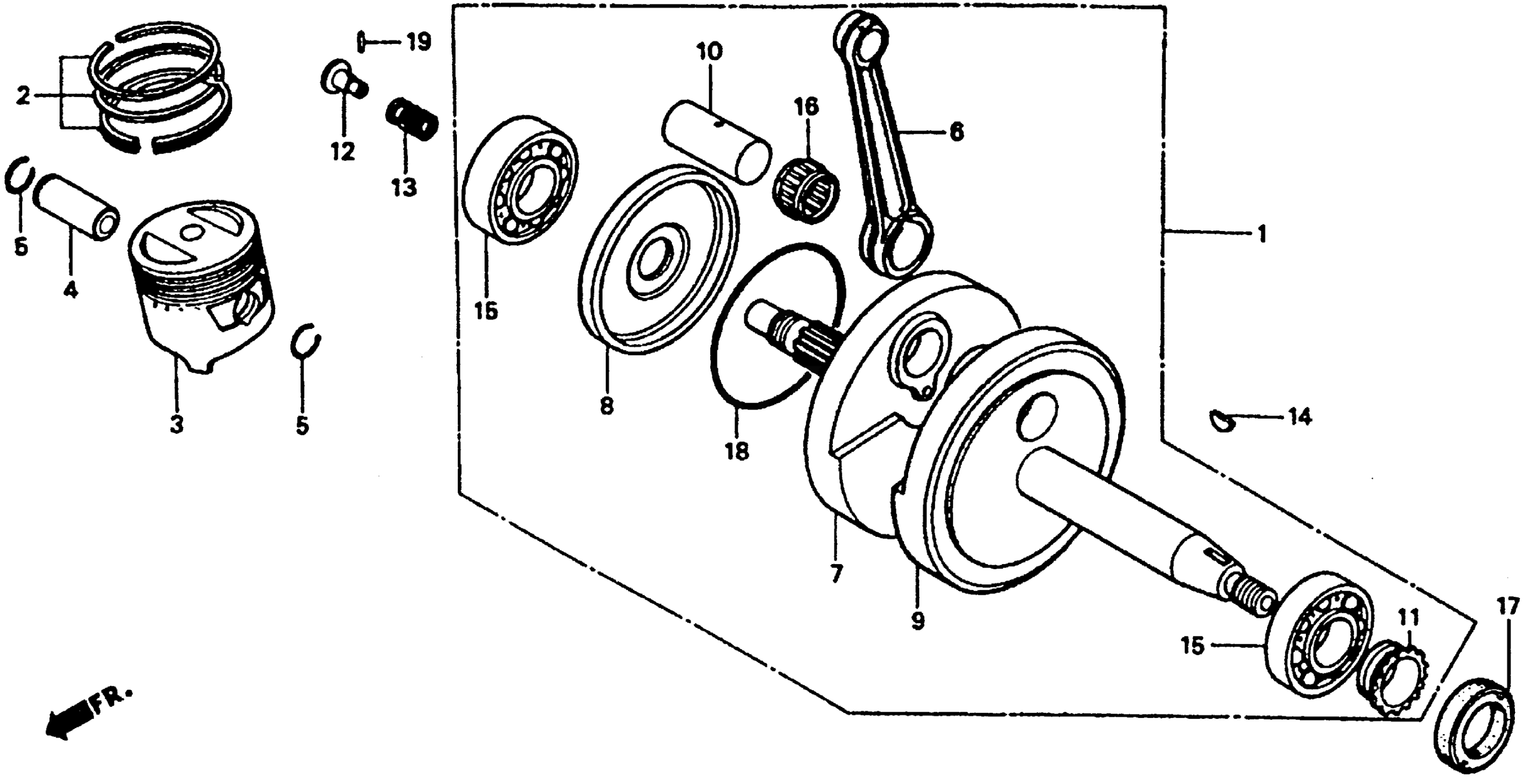

Honda XR80RA (91) MOTORCYCLE, JPN, VIN# JH2HE010-MK100001 TO JH2HE010-MK102778 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-176-020

Unavailable

2

RING SET, PISTON (STD) (TEIKOKU) This part replaces 13011-176-004.

13011-176-005

$52.69

2

RING SET, PISTON (STD) (TEIKOKU)

13011-176-005

$52.69

2

RING SET, PISTON (OS 0.25) (TEIKOKU) | (Optional). This part replaces 13021-176-004.

13021-176-005

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) (TEIKOKU) | (Optional).

13021-176-005

Unavailable

2

RING SET, PISTON (OS 0.50) (TEIKOKU) | (Optional). This part replaces 13031-176-004.

13031-176-005

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.50) (TEIKOKU) | (Optional).

13031-176-005

Unavailable

2

RING SET, PISTON (0.75) (TEIKOKU) | (Optional). This part replaces 13041-176-004.

13041-176-005

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) (TEIKOKU) | (Optional).

13041-176-005

Unavailable

2

RING SET, PISTON (1.00) (TEIKOKU) | (Optional). This part replaces 13051-176-004.

13051-176-005

Unavailable

2

RING SET, PISTON (1.00) (TEIKOKU) (NOT AVAILABLE) | (Optional).

13051-176-005

Unavailable

3

PISTON (STD)

13101-176-000

Unavailable

3

PISTON (OVER SIZE) (0.25) | (Optional).

13102-176-000

Unavailable

3

PISTON (OVER SIZE) (0.50) | (Optional).

13103-176-000

Unavailable

3

PISTON (OVER SIZE) (0.75) | (Optional).

13104-176-000

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-176-000

Unavailable

4

PIN, PISTON

13111-GB0-910

$11.67

4

PIN, PISTON This part replaces 13111-087-000.

13111-GB0-910

$11.67

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

ROD, CONNECTING

13201-176-000

Unavailable

7

CRANKSHAFT, R.

13311-176-300

Unavailable

8

PLATE, SIDE

13312-176-000

Unavailable

9

CRANKSHAFT, L. (NOT AVAILABLE)

13321-176-310

Unavailable

10

PIN, CRANK

13381-176-300

Unavailable

11

SPROCKET, TIMING (14T)

14311-035-000

$19.28

12

THROUGH, OIL

15441-149-000

$10.12

13

SPRING, OIL THROUGH

15447-149-000

$2.92

14

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

15

BEARING, SPECIAL (22) (KOYO) This part replaces 91001-176-014.

91002-HA5-003

Unavailable

15

BEARING, SPECIAL (22) (KOYO)

91002-HA5-003

Unavailable

16

BEARING, CONNECTING ROD (RED)

91101-176-003

$39.46

16

BEARING, CONNECTING ROD (BLUE)

91102-176-003

$39.46

16

BEARING, CONNECTING ROD (WHITE)

91103-176-003

$39.46

17

OIL SEAL (19X36X7)

91202-115-015

$7.32

18

O-RING (70X2.4)

91309-302-000

$10.00

19

ROLLER (2X11.8)

96220-20118

$1.49
