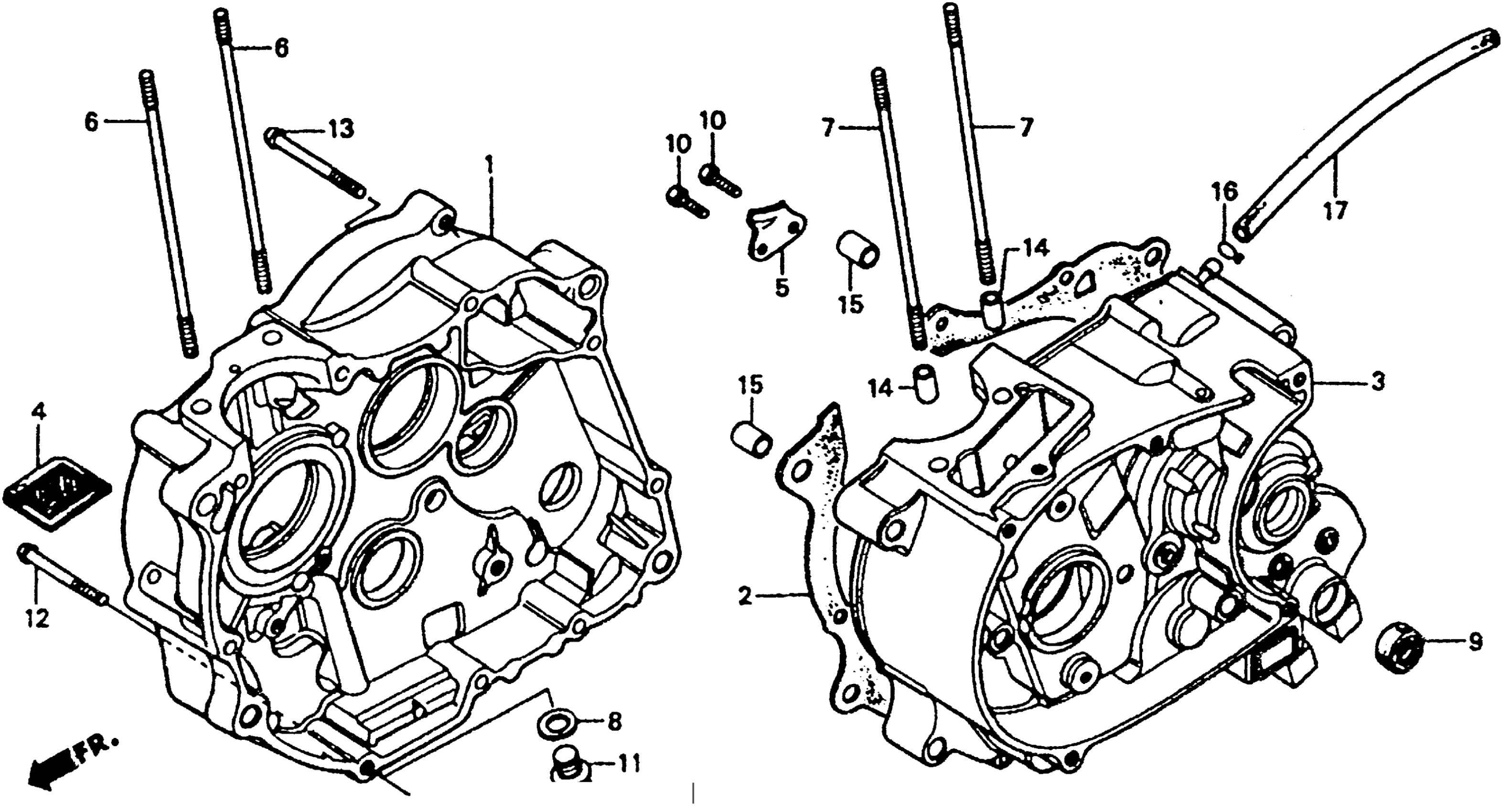

Honda XR80RA (91) MOTORCYCLE, JPN, VIN# JH2HE010-MK100001 TO JH2HE010-MK102778 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-GCR-000

$254.81

1

CRANKCASE, R. This part replaces 11100-176-020.

11100-GCR-000

$254.81

2

GASKET, CRANKCASE This part replaces 11191-GN1-880.

11191-GN1-732

$11.91

2

GASKET, CRANKCASE This part replaces 11191-149-000.

11191-GN1-732

$11.91

2

GASKET, CRANKCASE This part replaces 11191-149-306.

11191-GN1-732

$11.91

2

GASKET, CRANKCASE This part replaces 11191-GN1-730.

11191-GN1-732

$11.91

2

GASKET, CRANKCASE This part replaces 11191-GN1-731.

11191-GN1-732

$11.91

3

CRANKCASE, L.

11200-GN1-760

$326.54

4

SCREEN, OIL FILTER

15421-035-010

Unavailable

5

PLATE, RATCHET GUIDE

28259-149-000

Unavailable

6

BOLT A, CYLINDER STUD

90031-176-000

$9.14

7

BOLT B, CYLINDER STUD

90032-176-000

$9.09

8

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.71

9

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$3.87

9

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-020.

91208-KB4-671

$3.87

9

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$3.87

9

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$3.87

9

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$3.87

9

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-005.

91208-KB4-671

$3.87

9

OIL SEAL (11.6X24X10) (ARAI)

91208-KB4-671

$3.87

10

BOLT, HEX. (6X16)

92101-06016-0A

$1.35

11

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.08

12

BOLT, FLANGE (6X45)

96001-06045-00

$1.81

13

BOLT, FLANGE (6X55)

96001-06055-00

$1.50

14

PIN, DOWEL (10X16)

94301-10160

$2.80

15

PIN, DOWEL (12X20)

94301-12200

$2.80

16

CLIP, TUBE (C9)

95002-50000

$1.16

17

BULK HOSE, VACUUM (5X3000) (5X290)

95005-50003-30M

$22.30
