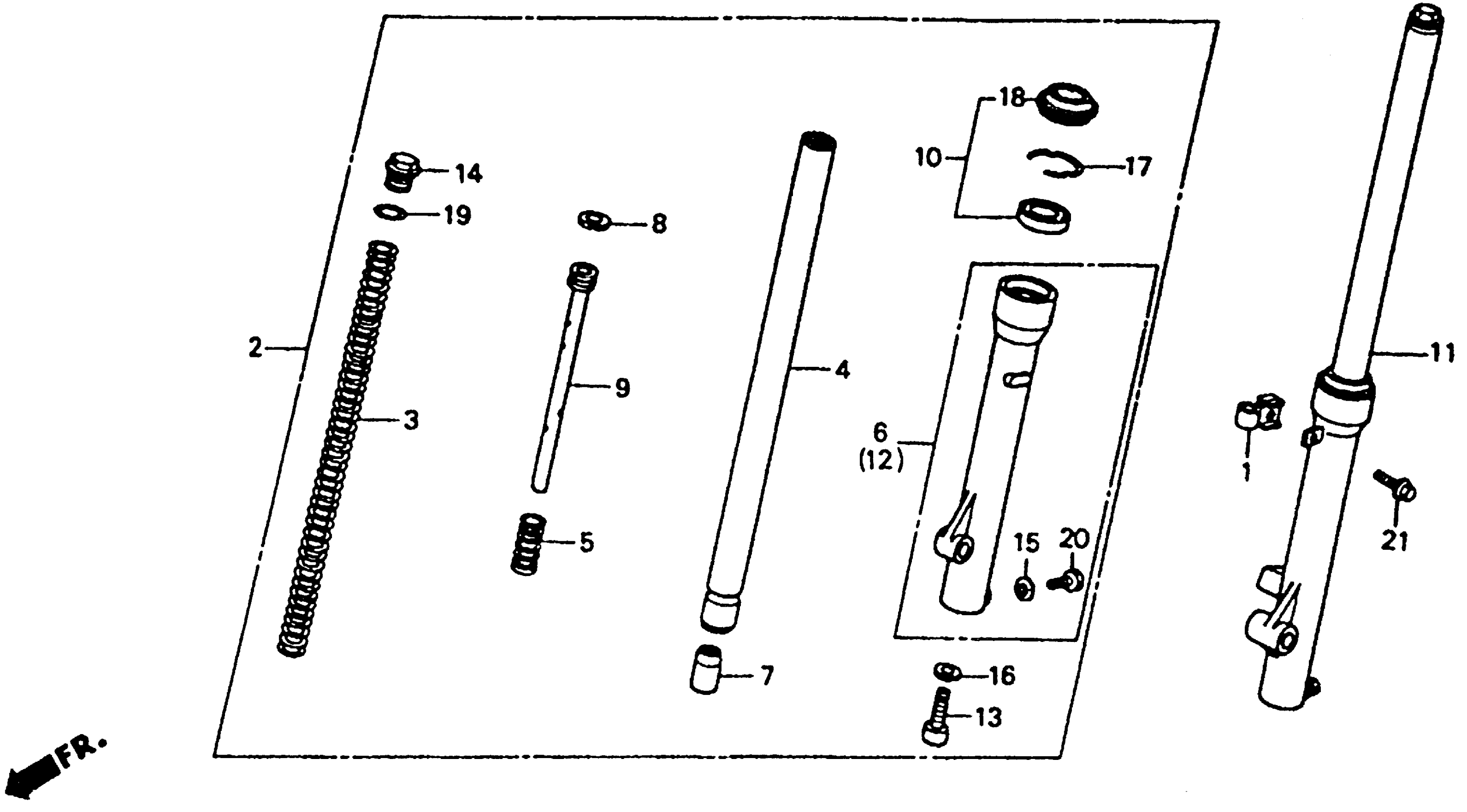

Honda XR80RA (87) MOTORCYCLE, JPN, VIN# JH2HE010-HK800004 TO JH2HE010-HK806021 FRONT FORK 85-87 Diagram

#

Description
Price

1

CLAMP, BRAKE CABLE

45461-GN1-000

$5.22

2

FORK ASSY., R. FR. This part replaces 51400-GN1-003.

51400-GN1-023

Unavailable

3

SPRING, FR. FORK (SHOWA)

51401-GN1-003

Unavailable

4

PIPE, FR. FORK (SHOWA)

51410-GN1-003

$173.84

5

SPRING, REBOUND (SHOWA)

51412-KA8-711

$7.74

6

CASE, R. (LOWER) This part replaces 51420-GN1-003.

51420-GN1-023

Unavailable

7

PIECE, OIL LOCK (SHOWA)

51432-GN1-003

$20.48

8

RING, PISTON

51437-GM0-003

$5.07

8

RING, PISTON This part replaces 51437-383-721.

51437-GM0-003

$5.07

9

PIPE, SEAT (SHOWA)

51470-GN1-003

Unavailable

10

SEAL SET, FR. FORK This part replaces 51490-GN1-003.

51490-GN1-013

$29.00

10

SEAL SET, FR. FORK

51490-GN1-013

$29.00

11

FORK ASSY., L. FR. This part replaces 51500-GN1-003.

51500-GN1-013

Unavailable

12

CASE, L. (LOWER) (SHOWA) (NOT AVAILABLE)

51520-GN1-003

Unavailable

13

BOLT, SOCKET (8X27)

90116-383-721

$5.13

14

BOLT, FORK (SHOWA)

90123-KA8-771

$25.54

15

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

16

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

17

RING, OIL SEAL STOPPER (SHOWA)

90601-383-721

$5.13

18

DUST SEAL (SHOWA) This part replaces 91254-GN1-003.

91254-GN1-013

$13.86

18

DUST SEAL (SHOWA)

91254-GN1-013

$13.86

19

O-RING (17.8X2.4) (SHOWA)

91256-383-721

$2.30

20

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

20

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

21

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

21

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
