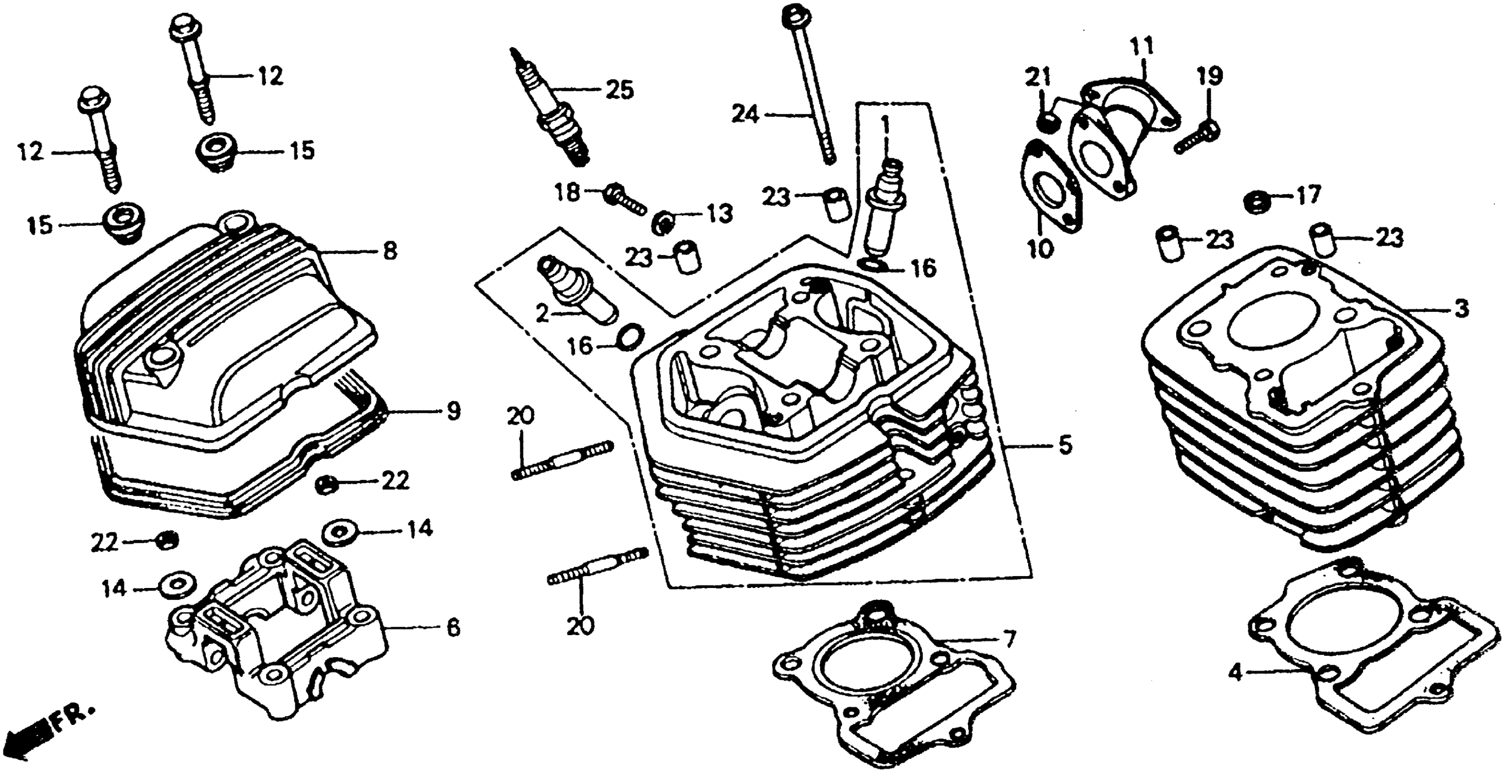

Honda XR80RA (87) MOTORCYCLE, JPN, VIN# JH2HE010-HK800004 TO JH2HE010-HK806021 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-149-300.

12021-149-405

$10.89

1

GUIDE, VALVE

12021-149-405

$10.89

2

GUIDE, VALVE This part replaces 12023-116-300.

12023-465-405

$17.36

2

GUIDE, VALVE

12023-465-405

$17.36

3

CYLINDER (NOT AVAILABLE)

12100-176-680

Unavailable

4

GASKET, CYLINDER This part replaces 12191-149-010.

12191-GN1-732

$6.32

4

GASKET, CYLINDER This part replaces 12191-GN1-730.

12191-GN1-732

$6.32

5

CYLINDER HEAD (NOT AVAILABLE)

12200-176-680

Unavailable

6

HOLDER, CAMSHAFT

12210-149-020

$105.43

7

GASKET, CYLINDER HEAD

12251-GN1-880

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-152-040.

12251-GN1-880

Unavailable

8

COVER, CYLINDER HEAD This part replaces 12301-KA9-681.

12301-KA9-682

Unavailable

8

COVER, CYLINDER HEAD

12301-KA9-682

Unavailable

9

GASKET, HEAD COVER (ARAI)

12391-149-003

$18.67

10

GASKET, IN. PIPE This part replaces 16229-GN1-880.

16229-GN1-A43

$5.64

10

GASKET, IN. PIPE This part replaces 16229-153-000.

16229-GN1-A43

$5.64

10

GASKET, IN. PIPE This part replaces 16229-153-306.

16229-GN1-A43

$5.64

10

GASKET, IN. PIPE This part replaces 16229-GN1-A41.

16229-GN1-A43

$5.64

10

GASKET, IN. PIPE This part replaces 16229-GN1-A42.

16229-GN1-A43

$5.64

10

GASKET, IN. PIPE This part replaces 16229-GN1-730.

16229-GN1-A43

$5.64

11

PIPE, INLET

17110-GN1-000

$54.18

12

BOLT, SPECIAL (6X45.5)

90017-436-000

$11.08

13

WASHER, SEALING (6MM)

90441-028-010

$3.29

14

WASHER (8MM)

90483-028-000

$1.40

15

RUBBER, MOUNTING

90541-195-670

$4.09

16

O-RING (10X1.6)

91301-200-000

$2.87

17

GASKET, RUBBER (9MM) This part replaces 91306-035-000.

91306-141-000

$4.44

17

GASKET, RUBBER (9MM)

91306-141-000

$4.44

18

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.35

18

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.35

18

BOLT, HEX. (6X16)

92101-06016-0A

$1.35

19

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.43

19

BOLT, HEX. (6X22) This part replaces 92000-06022-0A.

92101-06022-0A

$1.43

19

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.43

19

BOLT, HEX. (6X22) This part replaces 92100-06022.

92101-06022-0A

$1.43

19

BOLT, HEX. (6X22)

92101-06022-0A

$1.43

20

BOLT, STUD (6X32)

92700-06032-0B

$1.63

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

21

NUT, HEX. (6MM)

94001-06200-0S

$1.21

22

NUT, HEX. (8MM)

94002-08200-0S

$1.21

23

PIN, DOWEL (10X16)

94301-10160

$2.80

24

BOLT, FLANGE (6X110) This part replaces 95700-06110-00.

95701-06110-00

$4.01

24

BOLT, FLANGE (6X110)

95701-06110-00

$4.01

25

SPARK PLUG (CR6HS) (NGK) | (Optional).

98056-56716

$2.35

25

SPARK PLUG (CR7HS) (NGK)

98056-57716

$2.35

25

SPARK PLUG (CR8HS) (NGK) | (Optional).

98056-58716

$2.35

25

SPARK PLUG (U20FSR-U) (DENSO) | (Optional).

98056-56726

$2.28

25

SPARK PLUG (U22FSR-U) (DENSO)

98056-57726

$2.28

25

SPARK PLUG (U24FSR-U) (DENSO) | (Optional).

98056-58726

$2.28
