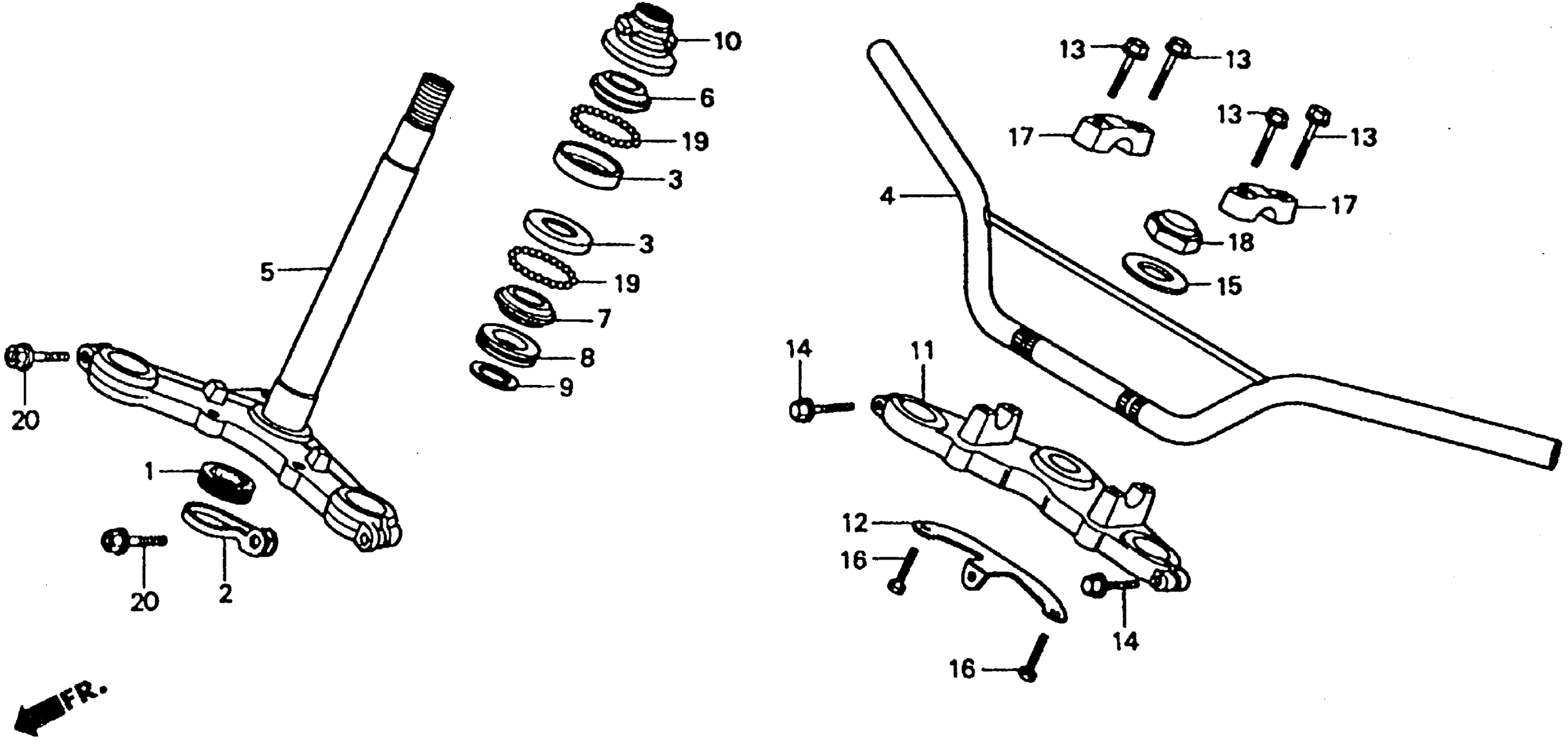

Honda XR80RA (85) MOTORCYCLE, JPN, VIN# JH2HE010-FK600006 TO JH2HE010-FK612267 HANDLEBAR + STEERING STEM Diagram

#

Description
Price

1

INNER, CABLE GUIDE

45466-329-000

$2.95

2

GUIDE, BRAKE CABLE (LOWER)

45468-GN1-000

Unavailable

3

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

3

RACE, STEERING BALL

50301-041-010

$12.39

4

HANDLEBAR (NOT AVAILABLE)

53100-GN1-000

Unavailable

5

STEM SUB-ASSY., STEERING This part replaces 53200-GN1-000.

53219-GN1-A10

Unavailable

6

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

6

RACE, STEERING TOP CONE

53211-028-010

$11.09

7

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

7

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

8

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

9

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

10

THREAD, STEERING HEAD TOP

53220-167-000

$18.84

11

BRIDGE, FORK TOP

53230-GN1-010

Unavailable

12

STAY B, FR. NUMBER PLATE

64111-KN4-000

Unavailable

13

BOLT, FLANGE (6X28)

90117-383-000

$2.39

14

BOLT, FLANGE (7X32)

90155-KA8-710

Unavailable

15

WASHER, STEERING STEM

90503-166-010

Unavailable

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

17

HOLDER A2, HANDLEBAR (UPPER)

95014-21201

Unavailable

18

NUT, STEERING STEM

90304-159-000

$7.02

18

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$7.02

19

BALL, STEEL (#6) (3/16)

96211-06000

$1.49

20

BOLT, FLANGE (8X32)

96400-08032-00

$2.17
