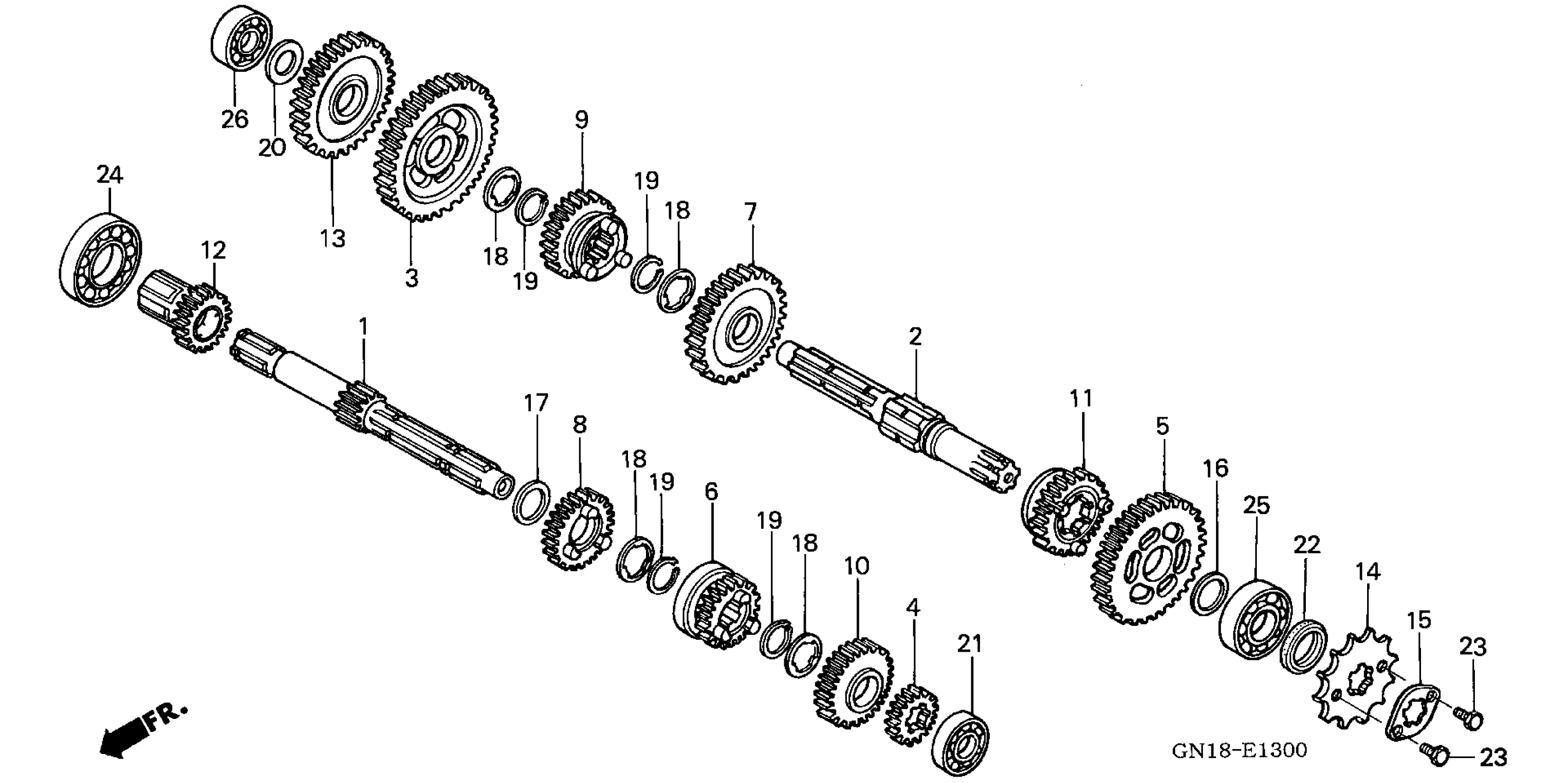

Honda XR80RA (03) MOTORCYCLE, JPN, VIN# JH2HE010-3K200001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T)

23211-153-010

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-149-000

$120.25

3

GEAR, COUNTERSHAFT LOW (35T)

23426-153-010

Unavailable

4

GEAR, MAINSHAFT SECOND (17T)

23441-115-010

$43.03

5

GEAR, COUNTERSHAFT SECOND (31T)

23451-153-000

Unavailable

6

GEAR, MAINSHAFT THIRD (20T)

23461-115-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (28T)

23471-115-020

$58.84

8

GEAR, MAINSHAFT FOURTH (23T)

23481-115-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (26T)

23491-115-010

$107.61

10

GEAR, MAINSHAFT TOP (25T)

23501-149-010

$54.62

11

GEAR, COUNTERSHAFT TOP (24T)

23511-115-010

$69.56

12

GEAR, PRIMARY STARTER (19T)

23520-436-000

$109.41

13

GEAR, STARTER IDLE (29T)

23531-149-000

$68.43

14

SPROCKET, DRIVE (14T) This part replaces 23800-116-010.

23801-178-000

$16.40

14

SPROCKET, DRIVE (14T) This part replaces 23800-141-010.

23801-178-000

$16.40

14

SPROCKET, DRIVE (14T)

23801-178-000

$16.40

15

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

16

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

17

WASHER B, THRUST (17MM)

90453-115-000

$2.28

18

WASHER, SPLINE (17MM)

90461-115-000

$2.66

19

CIRCLIP, OUTER (17MM)

90601-001-000

$1.49

20

WASHER (12MM)

90608-072-000

$3.80

21

BEARING, RADIAL BALL (6201U) This part replaces 91002-436-004.

96140-62010-00

$9.63

21

BEARING, RADIAL BALL (6201U)

96140-62010-00

$9.63

22

OIL SEAL (17X29X5) (NOK)

91203-GBG-900

$6.99

22

OIL SEAL (17X29X5) (ARAI) This part replaces 91203-GB5-761.

91203-GBG-900

$6.99

23

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

24

BEARING, RADIAL BALL (6005)

96100-60050-00

$11.25

25

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70

26

BEARING, RADIAL BALL (6201U)

96140-62010-00

$9.63
