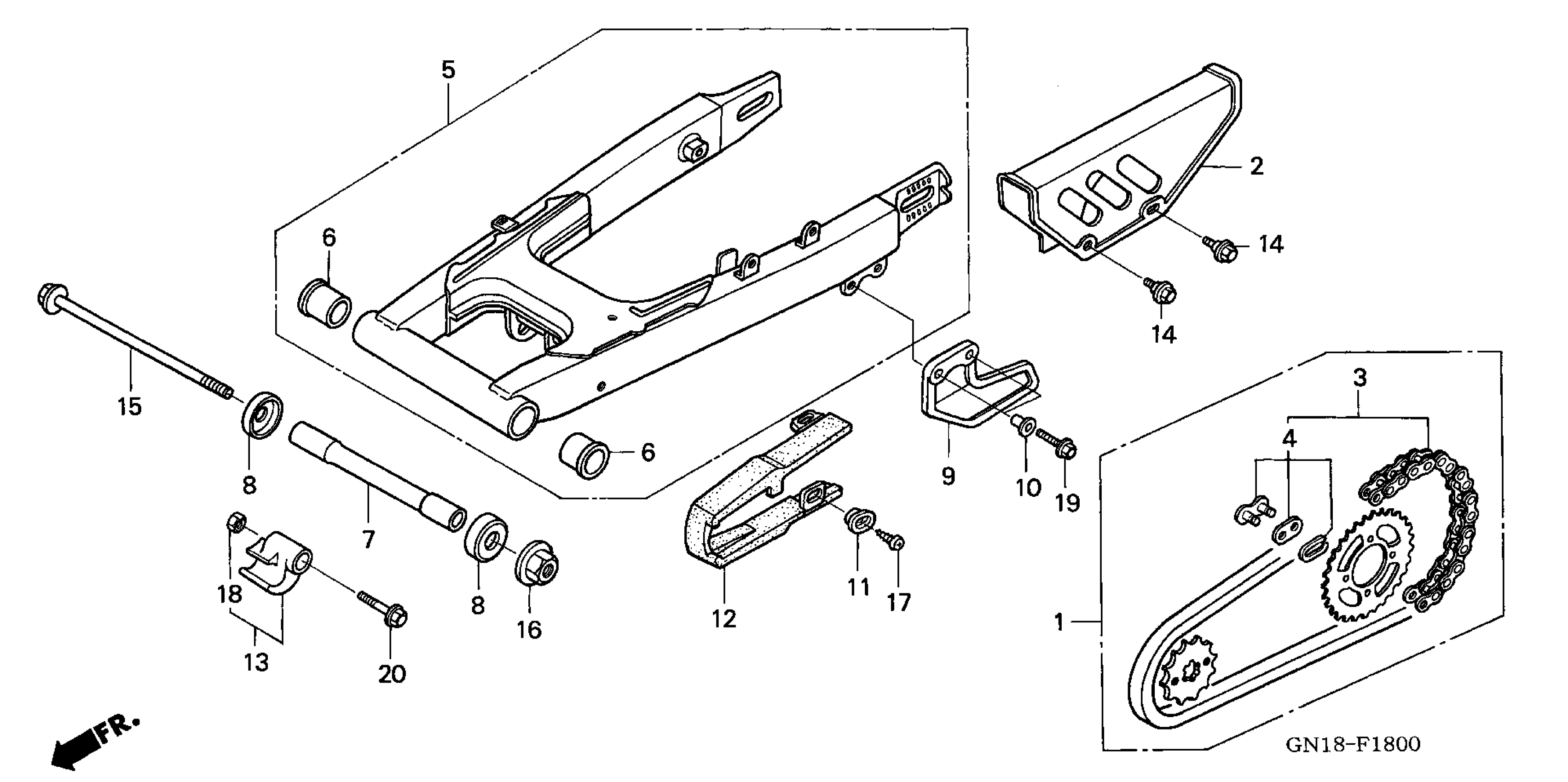

Honda XR80RA (03) MOTORCYCLE, JPN, VIN# JH2HE010-3K200001 SWINGARM Diagram

#

Description
Price

1

CHAIN KIT, DRIVE (420-110L)

06406-GN1-A30

Unavailable

2

CASE, DRIVE CHAIN

40510-GN1-760

$29.64

3

CHAIN, DRIVE

405W3-GN1-505

Unavailable

3

CHAIN, DRIVE (RK420MZ-110RJ) (RK EXCEL)

40530-GN1-A22

$52.72

3

CHAIN, DRIVE This part replaces 40530-GN1-003.

405W3-GN1-505

Unavailable

3

CHAIN, DRIVE This part replaces 40530-GN1-005.

405W3-GN1-505

Unavailable

4

MASTER LINK (DAIDO)

40531-098-003

$3.58

4

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.58

5

SWINGARM ASSY. *NH146M* (ACCURATE SILVER METALLIC)

52100-GN1-860ZB

Unavailable

6

BUSH, PIVOT THRUST

52109-GJ1-003

$16.93

7

COLLAR, SWINGARM

52141-GN1-000

$42.78

8

CAP, DUST SEAL (NOK)

52144-360-005

$10.83

9

GUARD, CHAIN

52156-GN1-000

$23.93

10

COLLAR, CHAIN GUARD

52157-GC5-000

$4.28

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.38

12

SLIDER, CHAIN

52175-GN1-000

$25.10

13

SLIDER, CHAIN (UPPER)

52180-GN1-000

$13.92

14

BOLT, FLANGE (6MM)

90111-187-000

$7.39

15

BOLT, SWINGARM PIVOT

90121-GN1-000

$28.60

16

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.68

17

SCREW, TAPPING (5X8)

93901-25080

$0.90

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

18

NUT, HEX. (6MM)

94001-06200-0S

$1.31

19

BOLT, FLANGE (6X18)

96300-06018-00

Unavailable

20

BOLT, FLANGE (6X28)

96300-06028-00

$1.37
