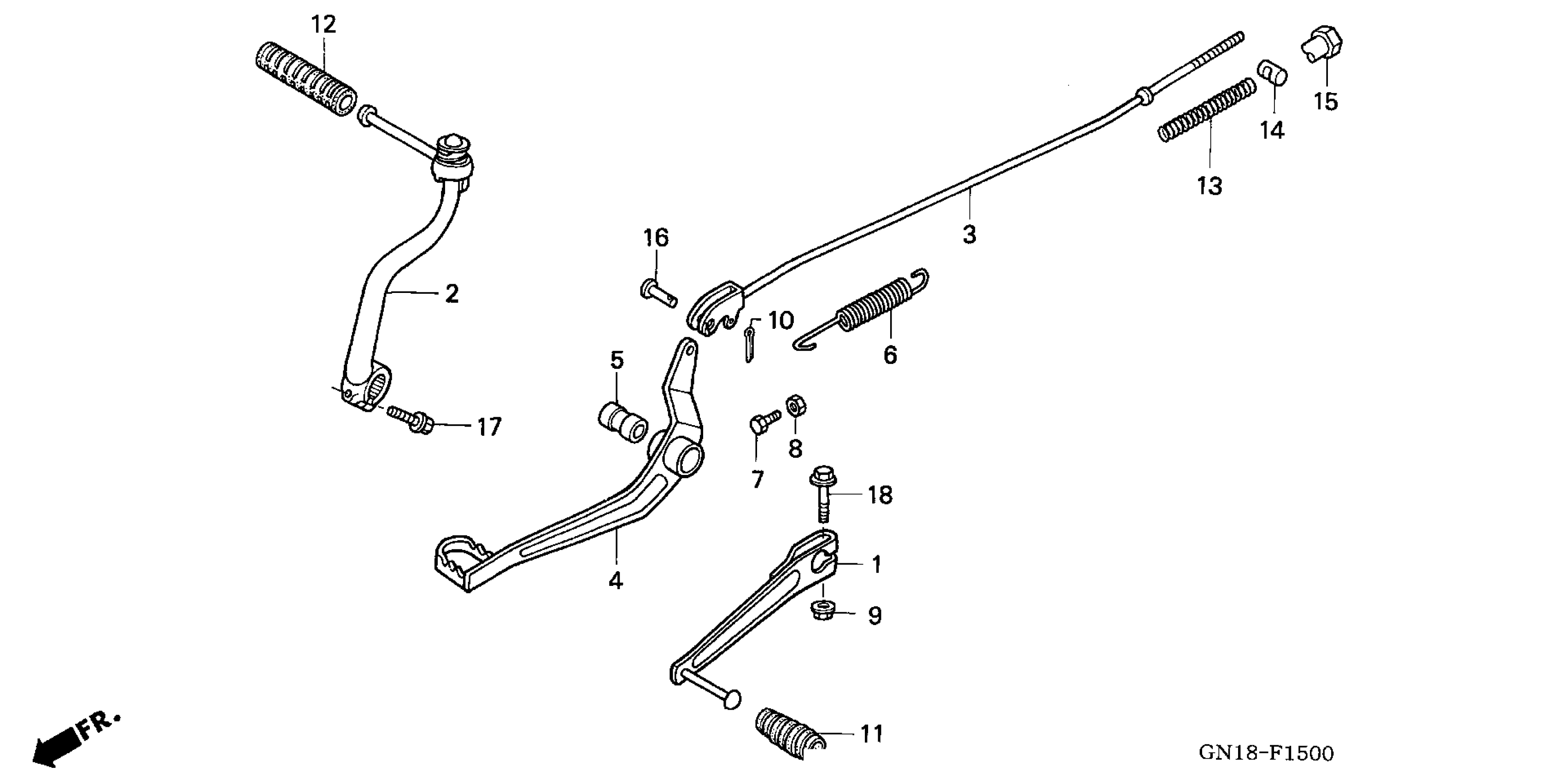

Honda XR80RA (03) MOTORCYCLE, JPN, VIN# JH2HE010-3K200001 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-KN4-A60

$41.74

1

PEDAL, GEARSHIFT This part replaces 24701-KSJ-305.

24701-KN4-A60

$41.74

2

ARM ASSY., KICK STARTER

28300-KN4-A60

$70.48

3

ROD, RR. BRAKE

43451-GN1-A50

$14.82

4

PEDAL, BRAKE

46500-KN4-A60

Unavailable

5

SLEEVE, RR. BRAKE PIVOT

46506-GN1-000

$7.88

6

SPRING, BRAKE PEDAL

46514-MB0-000

$9.38

7

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

8

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

8

NUT, HEX. (6MM)

94001-06200-0S

$1.49

9

NUT, FLANGE (6MM)

94050-06000

$1.49

10

PIN, SPLIT (2.0X12)

94201-20120

$1.49

11

RUBBER, CHANGE PEDAL

95011-40000

$1.49

12

RUBBER B, KICK STARTER

95011-52000

$4.12

13

SPRING A, BRAKE ROD

95014-73100

$1.49

14

JOINT B, BRAKE ARM

95015-32001

$1.49

15

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

16

PIN C, JOINT

95015-53000

$3.06

17

BOLT, FLANGE (6X25)

96300-06025-00

$1.49

18

BOLT, FLANGE (6X28)

96300-06028-00

$1.49
