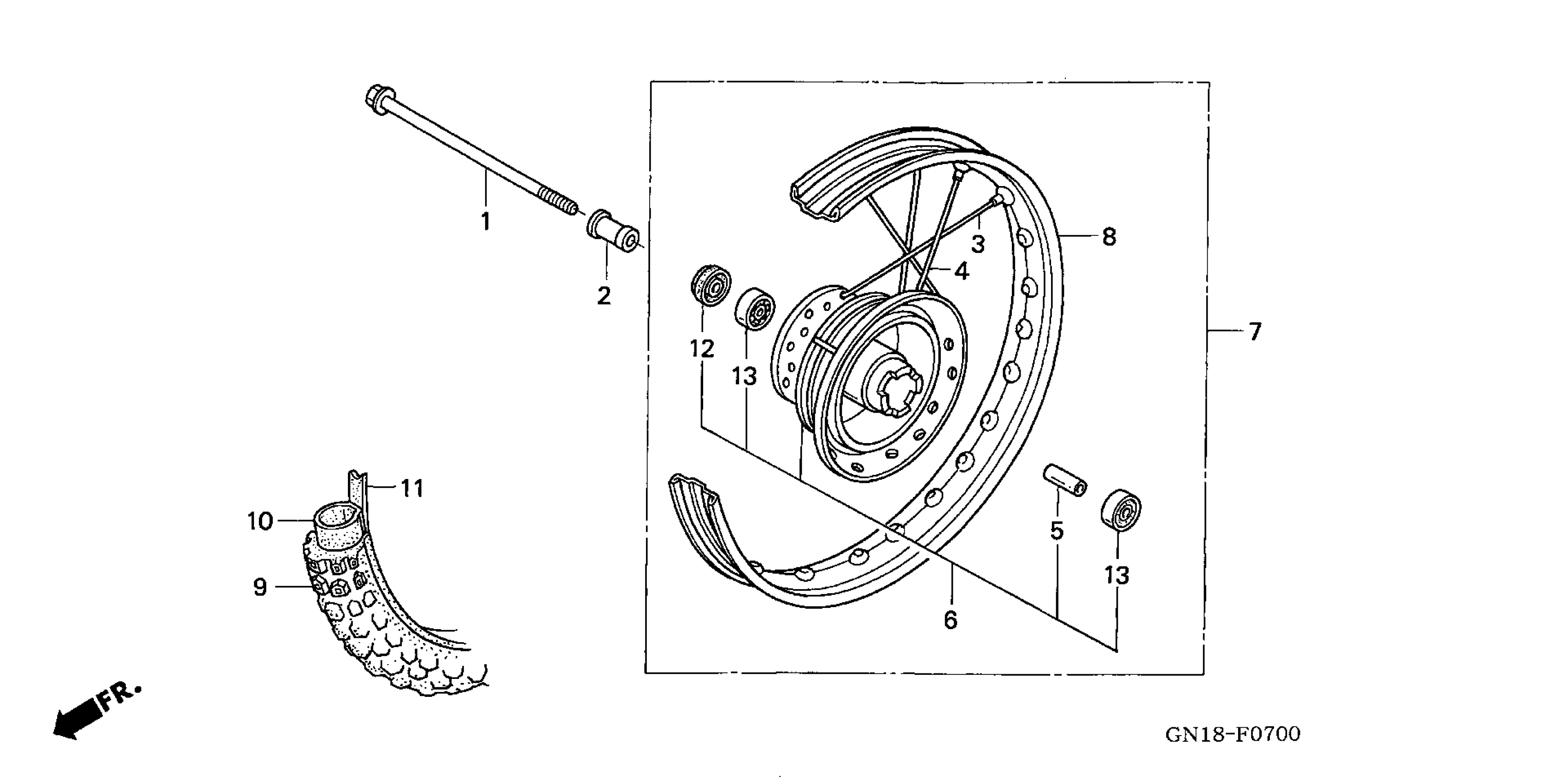

Honda XR80RA (03) MOTORCYCLE, JPN, VIN# JH2HE010-3K200001 FRONT WHEEL Diagram

#

Description
Price

1

AXLE, FR. WHEEL

44301-GCF-670

$25.82

1

AXLE, FR. WHEEL This part replaces 44301-GE2-000.

44301-GCF-670

$25.82

2

COLLAR, FR. WHEEL SIDE

44311-GN1-000

$10.91

3

SPOKE SET B (10X183)

44610-GN1-405

$6.46

4

SPOKE SET B (10X147.5)

44611-GN1-405

$6.46

5

COLLAR, FR. AXLE DISTANCE

44620-GC4-700

$13.18

6

HUB SUB-ASSY., FR.

44635-KN4-A60

$181.89

7

WHEEL SUB-ASSY., FR. This part replaces 44650-GN1-680.

44650-GFW-315

$468.25

7

WHEEL SUB-ASSY., FR. This part replaces 44650-GN1-681.

44650-GFW-315

$468.25

8

RIM, FR. WHEEL This part replaces 44701-GN1-003.

44701-GN1-023

$50.19

8

RIM, FR. WHEEL This part replaces 44701-GN1-013.

44701-GN1-023

$50.19

9

TIRE, FR. (2.50-16) (4PR/36L GS45Z1) (IRC) This part replaces 44711-169-005.

44711-169-015

$67.14

10

TUBE, TIRE (2.25-16) (INOUE) This part replaces 0Y400-11810.

44712-197-005

Unavailable

10

TUBE, TIRE (2.25-16) (INOUE) This part replaces 08400-11810.

44712-197-005

Unavailable

10

TUBE, TIRE (2.25-16) (INOUE) This part replaces 44712-GC1-004.

44712-197-005

Unavailable

10

TUBE, TIRE (2.25-16) (INOUE) This part replaces 44712-116-671.

44712-197-005

Unavailable

10

TUBE, TIRE (2.25-16) (INOUE) This part replaces 44712-118-003.

44712-197-005

Unavailable

10

TUBE, TIRE (2.25-16) (INOUE) This part replaces 44712-118-006.

44712-197-005

Unavailable

10

TUBE, TIRE (2.25-16) (INOUE)

44712-197-005

Unavailable

11

FLAP, TIRE (IRC)

44713-116-671

$7.61

12

DUST SEAL (32X21X5) (NOK)

90745-GC4-701

$5.05

12

DUST SEAL (32X21X5.5) (ARAI)

90745-GC4-702

$5.05

13

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28
