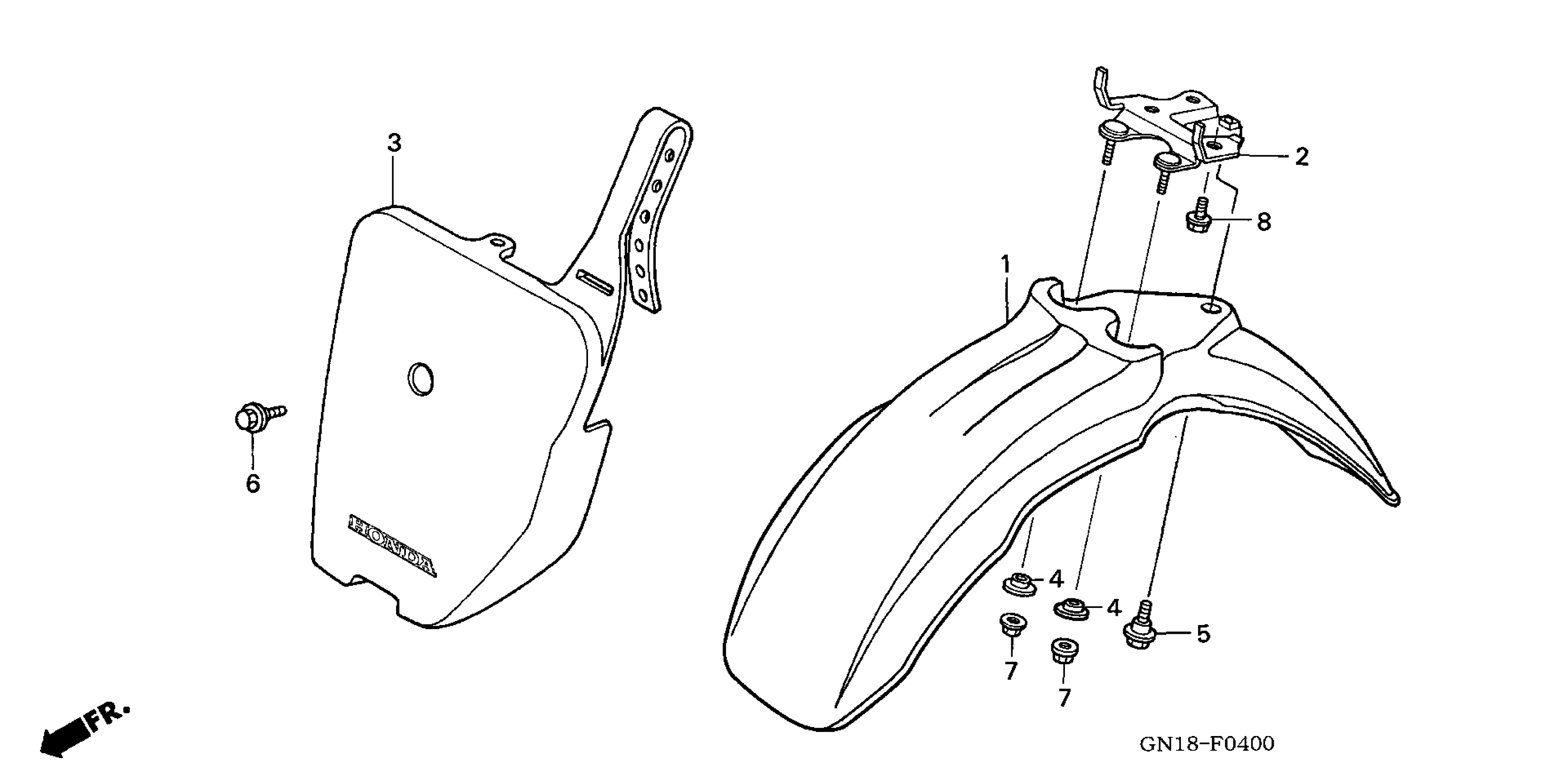

Honda XR80RA (03) MOTORCYCLE, JPN, VIN# JH2HE010-3K200001 FRONT FENDER Diagram

#

Description

Price

1

FENDER, FR. R134 (FIGHTING RED)

61100-KN4-A60ZA

Unavailable

2

STAY, FR. FENDER NH1 (BLACK)

61102-GN1-000ZC

Unavailable

3

PLATE SET, FR. NUMBER NH196 (WL) (ROSS WHITE)

61140-KN4-A70ZB

$33.53

4

COLLAR, SEAT SETTING

77103-GC4-000

$3.68

5

BOLT, FLANGE (6MM)

90111-147-000

$2.62

6

BOLT, FLANGE (5X9)

90508-GC8-000

$4.06

7

NUT, FLANGE (6MM)

94050-06000

$0.59

8

BOLT, FLANGE (6X16)

95701-06016-00

$1.48
