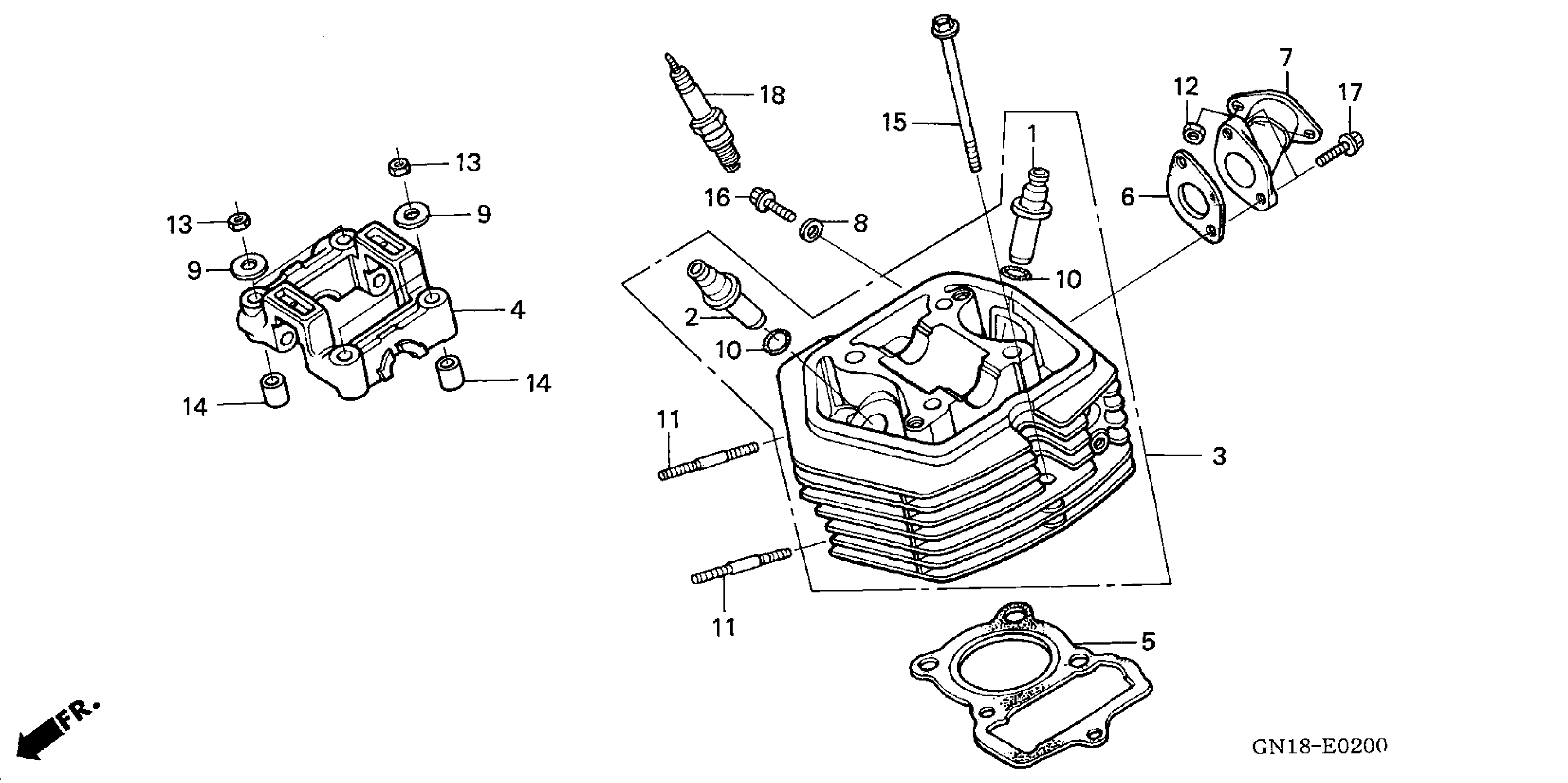

Honda XR80RA (03) MOTORCYCLE, JPN, VIN# JH2HE010-3K200001 CYLINDER HEAD Diagram

GUIDE, VALVE This part replaces 12021-149-300.

12021-149-405

$11.86

GUIDE, VALVE

12021-149-405

$11.86

GUIDE, VALVE This part replaces 12023-116-300.

12023-465-405

$18.90

GUIDE, VALVE

12023-465-405

$18.90

CYLINDER HEAD

12200-GN1-A40

$232.24

HOLDER, CAMSHAFT

12210-149-020

$114.85

GASKET, CYLINDER HEAD

12251-GN1-731

$22.41

GASKET, IN. PIPE This part replaces 16229-GN1-A41.

16229-GN1-A43

$5.90

GASKET, IN. PIPE This part replaces 16229-GN1-A42.

16229-GN1-A43

$5.90

PIPE, INLET

17110-GN1-000

$59.02

WASHER A (6MM)

90478-700-000

$1.49

WASHER (8MM)

90483-028-000

$1.51

O-RING (10X1.6)

91301-200-000

$3.01

BOLT, STUD (6X32)

92700-06032-0B

$1.69

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (8MM)

94002-08200-0S

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

SPARK PLUG (CR6HSA) (NGK) | (Optional).

98056-56718

$2.62

SPARK PLUG (U20FSR-U) (DENSO) | (Optional).

98056-56726

$2.54

SPARK PLUG (CR7HSA) (NGK)

98056-57718

$2.62

SPARK PLUG (U22FSR-U) (DENSO)

98056-57726

$2.54

SPARK PLUG (CR8HSA) (NGK) | (Optional).

98056-58718

$2.62

SPARK PLUG (U24FSR-U) (DENSO) | (Optional).

98056-58726

$2.54
