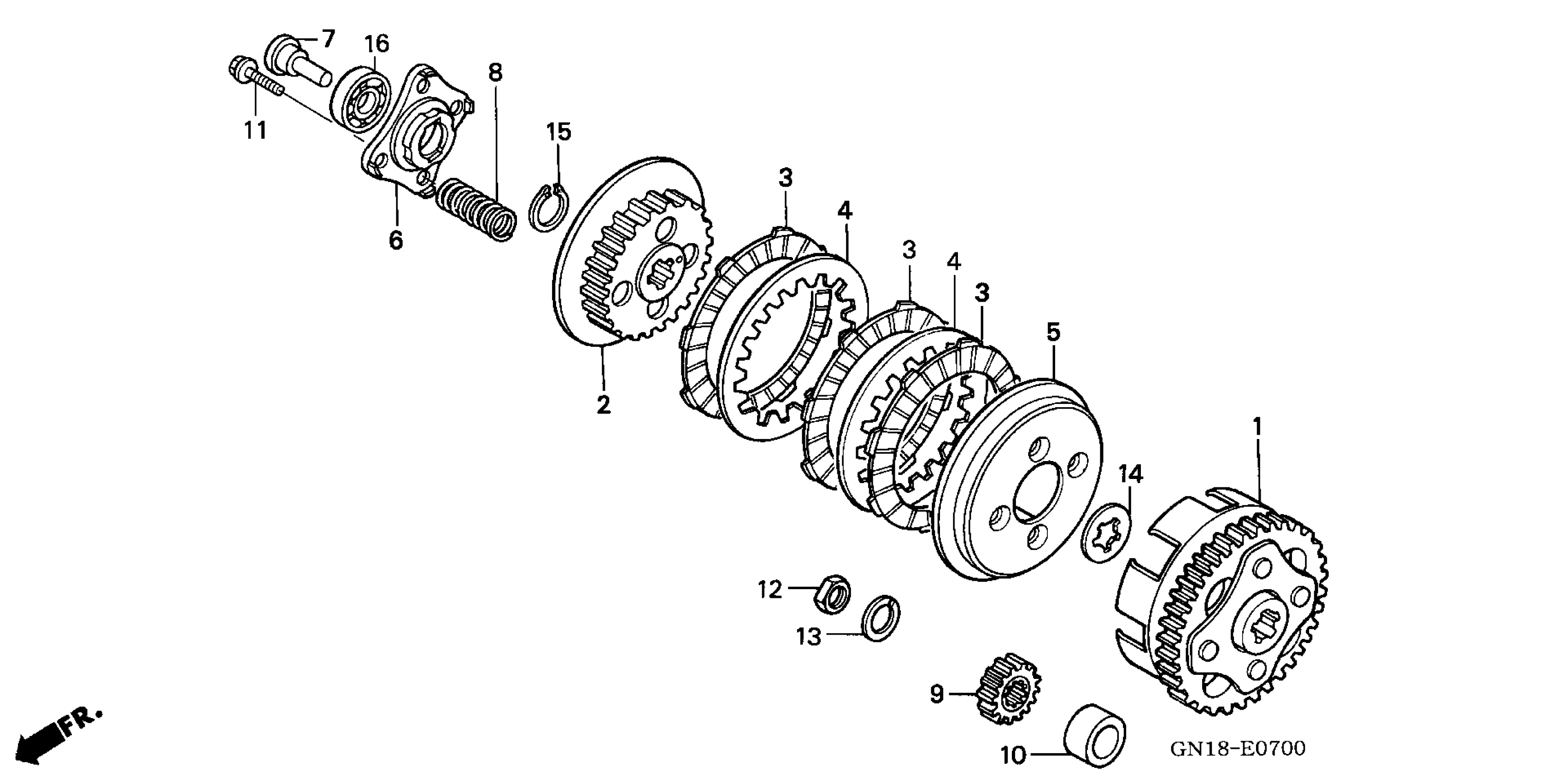

Honda XR80RA (03) MOTORCYCLE, JPN, VIN# JH2HE010-3K200001 CLUTCH Diagram

CLUTCH KIT (INCLUDES FRICTION & METAL PLATES, SPRINGS & O-RING) | (Optional).

06001-GN1-000

Unavailable

CLUTCH OUTER (71T)

22100-149-000

$184.49

CENTER, CLUTCH

22121-115-010

$67.82

DISK, CLUTCH FRICTION

22201-166-000

$17.44

PLATE, CLUTCH

22311-KN4-680

$6.31

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

PLATE, CLUTCH PRESSURE

22350-115-020

$41.76

PLATE, CLUTCH LIFTER

22361-107-000

$17.55

PIN, CLUTCH LIFTER GUIDE

22366-115-000

$31.49

SPRING, CLUTCH

22401-HB6-000

$4.78

GEAR, PRIMARY DRIVE (16T)

23121-149-000

Unavailable

COLLAR, PRIMARY DRIVE GEAR

23122-149-000

$9.18

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

NUT, SPECIAL (14MM)

90201-KBP-900

$4.99

WASHER (14.2X23X2.6)

90408-MN5-000

$5.64

WASHER B, SPLINE (17MM)

90462-115-010

$5.33

CIRCLIP (OUTER) (17MM)

94510-17000

$1.49

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
