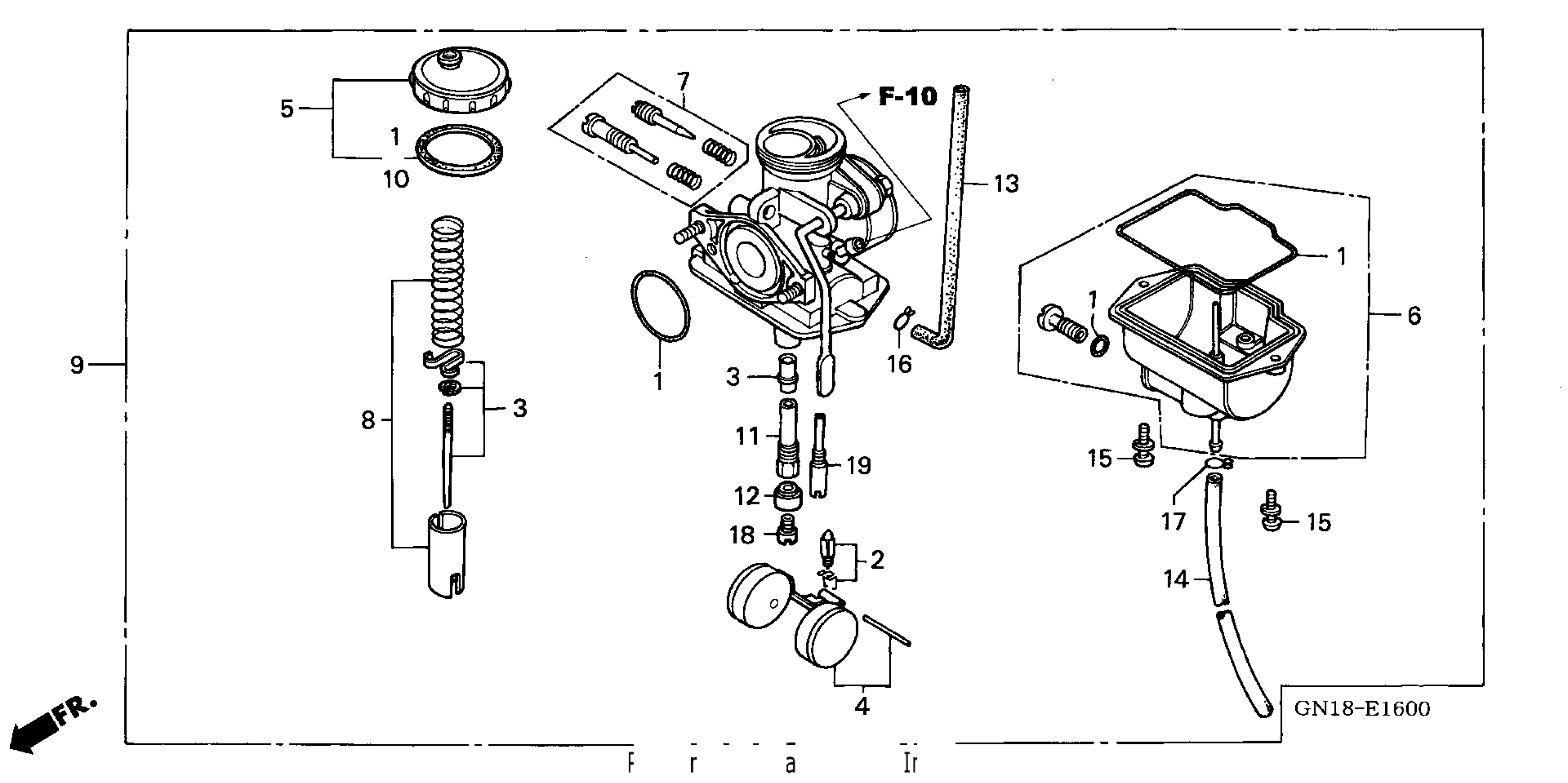

Honda XR80RA (03) MOTORCYCLE, JPN, VIN# JH2HE010-3K200001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-GCR-000

$13.86

1

GASKET SET This part replaces 16010-116-700.

16010-GCR-000

$13.86

1

GASKET SET This part replaces 16010-116-701.

16010-GCR-000

$13.86

2

VALVE SET, FLOAT

16011-881-741

$24.85

3

NEEDLE SET, JET

16012-GN1-A41

$23.90

4

FLOAT SET

16013-107-810

$35.88

5

TOP SET

16014-GN1-681

Unavailable

6

CHAMBER SET, FLOAT

16015-GN1-671

Unavailable

7

SCREW SET

16016-143-620

$24.01

8

VALVE SET, THROTTLE

16022-153-004

$51.10

9

CARBURETOR ASSY. (PC20M A) This part replaces 16100-GN1-A51.

16100-GN1-A83

$207.23

10

GASKET, TOP

16110-GN1-771

$8.08

11

HOLDER, NEEDLE JET

16165-GN1-682

$33.28

12

HOLDER, JET

16168-355-700

$9.15

13

TUBE, AIR VENT

16199-KN4-A61

$6.10

14

TUBE, OVERFLOW

16199-435-771

$11.39

15

SCREW-WASHER (4X12)

93892-04012-08

$1.49

15

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

16

CLIP, TUBE (B7)

95002-02070

$1.80

17

CLIP, TUBE (B6.5)

95002-02650

$1.49

18

JET, MAIN (#90) | (Optional). This part replaces 99101-116-0900.

99102-GHB-0900

$9.46

18

JET, MAIN (#95) This part replaces 99101-116-0950.

99102-GHB-0950

$9.46

18

JET, MAIN (#90) | (Optional).

99102-GHB-0900

$9.46

18

JET, MAIN (#95)

99102-GHB-0950

$9.46

19

JET, SLOW (#35)

99103-GN1-0350

$14.25
