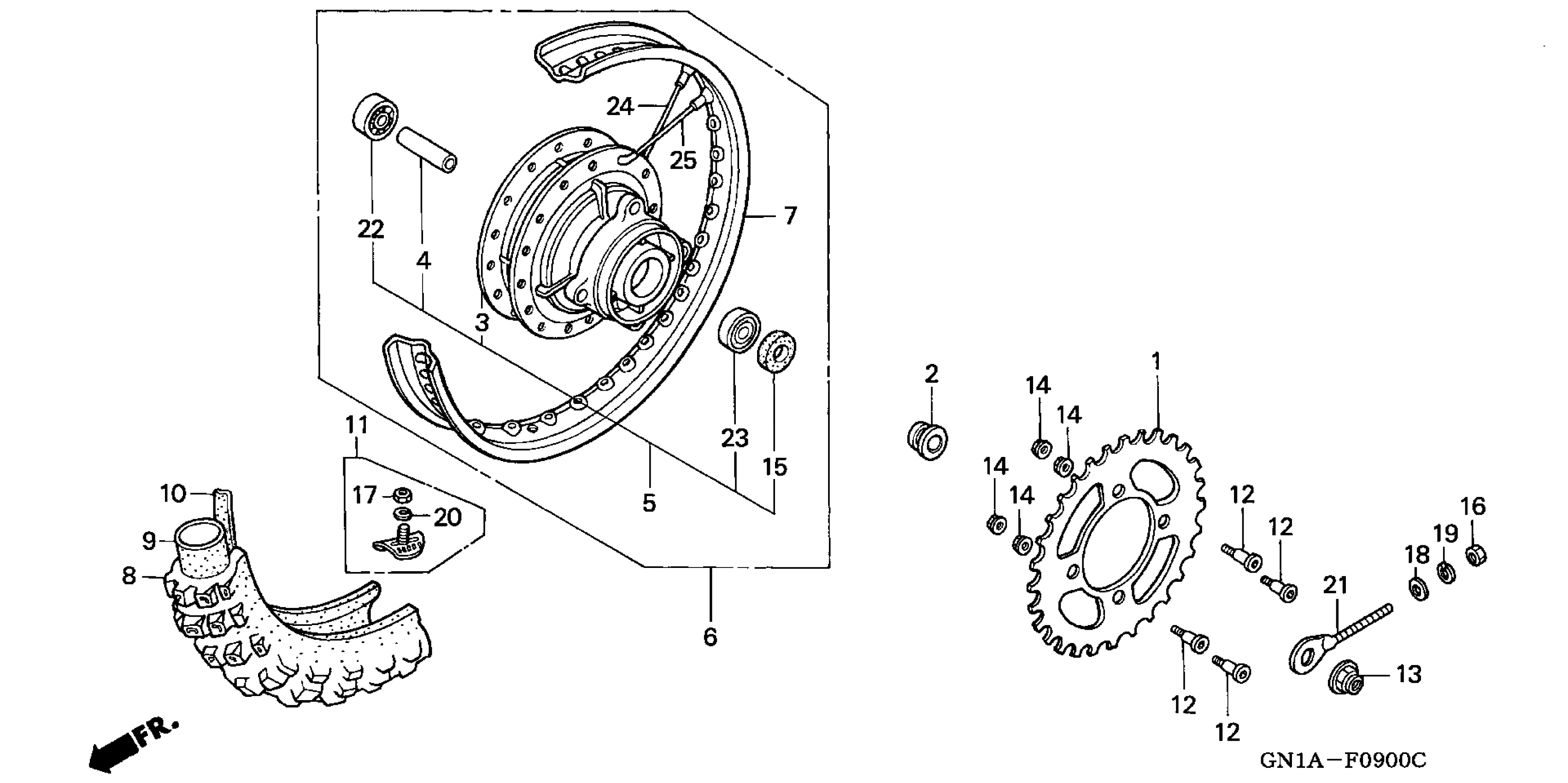

Honda XR80RA (02) MOTORCYCLE, JPN, VIN# JH2HE010-2K100001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (46T)

41201-GN1-000

$62.47

2

COLLAR, RR. WHEEL SIDE

42311-GC4-000

$14.79

4

COLLAR, RR. AXLE DISTANCE

42620-GC4-000

$14.76

5

HUB SUB-ASSY., RR.

42635-KN4-A60

$233.57

6

WHEEL SUB-ASSY., RR. This part replaces 42650-GFW-305.

42650-GFW-315

$394.51

6

WHEEL SUB-ASSY., RR. This part replaces 42650-GN1-680.

42650-GFW-315

$394.51

6

WHEEL SUB-ASSY., RR. This part replaces 42650-GN1-681.

42650-GFW-315

$394.51

7

RIM, RR. WHEEL This part replaces 42701-GN1-003.

42701-GN1-023

$52.96

7

RIM, RR. WHEEL This part replaces 42701-GN1-013.

42701-GN1-023

$52.96

8

TIRE, RR. (3.60-14) (4PR/43P) (IRC) This part replaces 42711-169-005.

42711-169-015

$87.87

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 0Y400-12801.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 08400-12801.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-GC1-004.

42712-116-672

Unavailable

9

TUBE, RR. WHEEL (3.00-14) (INOUE)

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-118-003.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-121-692.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-128-003.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-128-006.

42712-116-672

Unavailable

9

TUBE, TIRE (3.00-14) (INOUE) This part replaces 42712-169-005.

42712-116-672

Unavailable

10

FLAP, RR. TUBE (IRC)

42713-116-671

$6.91

11

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

12

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

13

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

14

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

14

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

15

DUST SEAL (21X37X5.5) (ARAI)

90755-GC4-003

$5.05

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (8MM)

94001-08000-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49

21

ADJUSTER S, R. CHAIN

95014-10010

$4.53

22

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28

23

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

24

SPOKE SET B (10X125.5)

97284-42091-K0

$1.79

25

SPOKE SET B (10X125.0)

97766-42090-K0

$1.79
