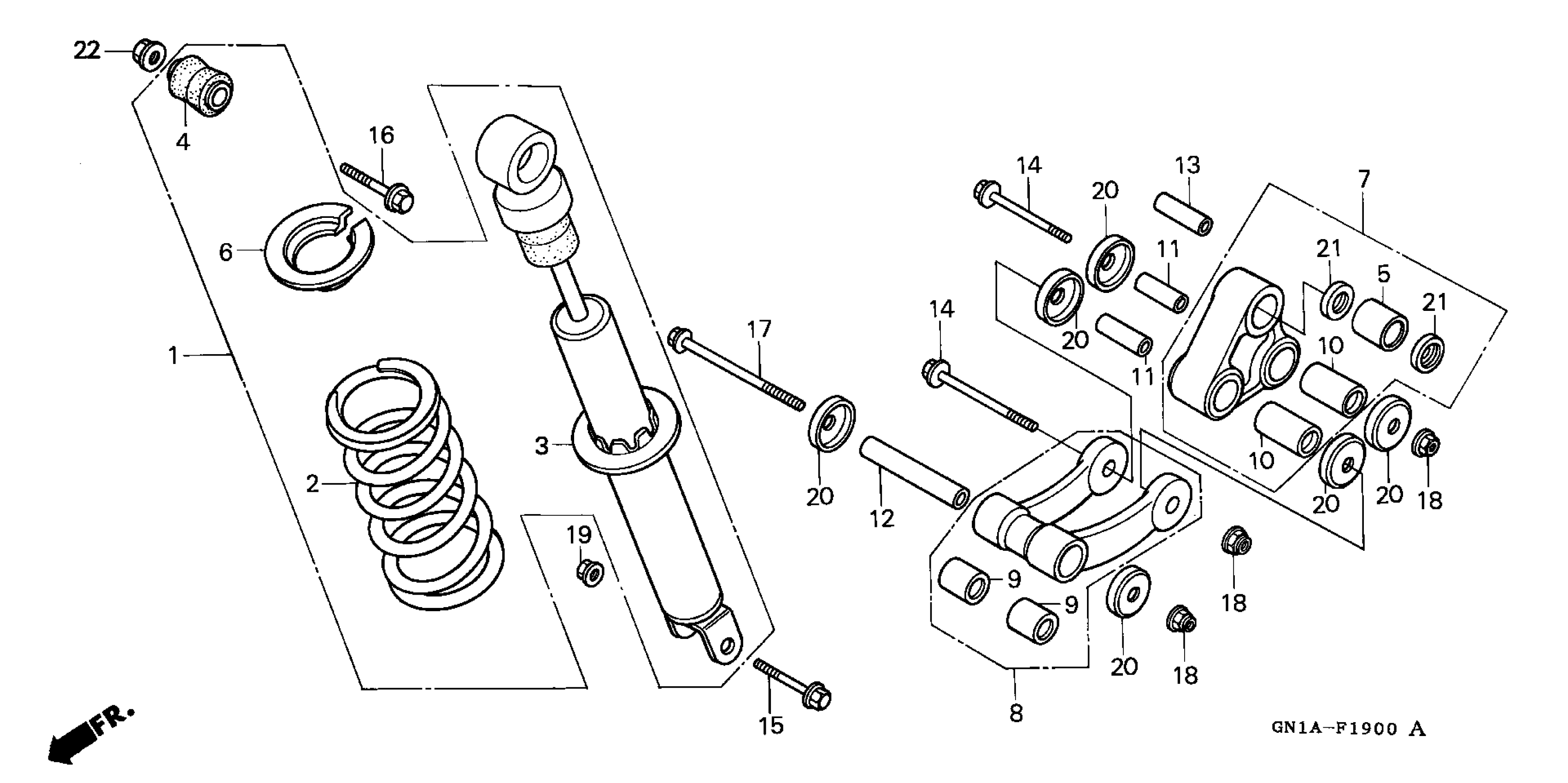

Honda XR80RA (02) MOTORCYCLE, JPN, VIN# JH2HE010-2K100001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR. *Y147* (SAFFRON YELLOW)

52400-GN1-013ZE

Unavailable

2

SPRING, RR. SHOCK ABSORBER *Y147* (SAFFRON YELLOW) (NOT AVAILABLE)

52401-GN1-003ZE

Unavailable

3

DAMPER, RR.

52410-GN1-013

Unavailable

4

BUSH, DAMPER (LOWER)

52451-MA0-000

$15.12

5

BUSH, DAMPER (LOWER)

52452-GN1-000

$12.22

6

SEAT, SPRING STOPPER (SHOWA)

52459-KC1-003

Unavailable

7

ARM SUB-ASSY., CUSHION

52465-GN1-A50

$227.36

8

ROD SUB-ASSY., CUSHION CONNECTING

52475-KN4-A60

$181.20

9

BUSH, CUSHION CONNECTING ROD

52472-GJ1-003

$24.47

10

BUSH, CUSHION ARM

52472-GN1-000

$24.49

11

COLLAR, CONNECTING ROD PIVOT

52473-GE2-000

$18.43

12

COLLAR, CONNECTING ROD

52473-GN1-000

$15.93

13

COLLAR, DAMPER (LOWER)

52486-GN1-000

$9.32

14

BOLT, FLANGE (10X61)

90128-GN1-000

$6.84

15

BOLT, FLANGE (8X47)

90150-GN1-000

$5.66

16

BOLT, FLANGE (10X55) This part replaces 90152-GN1-000.

95801-10055-00

$1.49

17

BOLT, FLANGE (10X98)

90154-GN1-000

$8.83

18

NUT, U FLANGE (10MM)

90304-KN4-A61

$2.85

19

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

19

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

20

CAP, DUST SEAL

91262-KN4-A61

$6.93

21

SEAL, DAMPER (LOWER)

91263-GN1-003

$4.75

22

NUT, U FLANGE (10MM)

90304-KN4-A60

Unavailable
