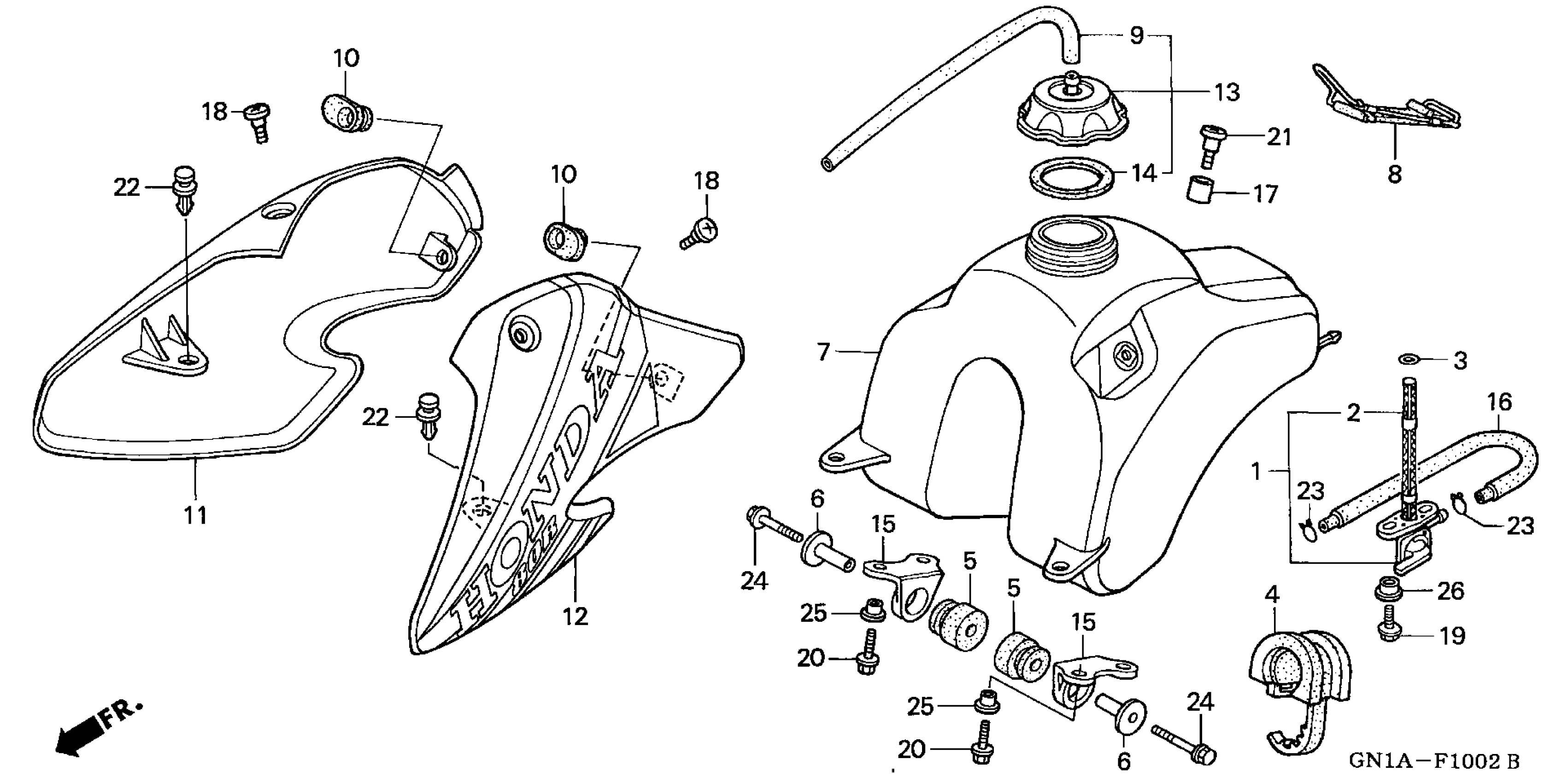

Honda XR80RA (02) MOTORCYCLE, JPN, VIN# JH2HE010-2K100001 FUEL TANK 01-02 Diagram

PETCOCK ASSY.

16950-GEL-701

$61.17

SCREEN SET, FUEL STRAINER

16952-GEL-701

$21.43

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER, TANK SETTING

17504-GN1-770

$15.40

RUBBER, TANK MOUNTING

17508-GBF-830

$5.90

COLLAR, TANK SETTING

17509-KN4-A60

$5.94

TANK, FUEL

17510-KN4-A60

Unavailable

BAND, RR. TANK This part replaces 17516-KN4-A60.

17516-KSJ-670

$14.70

BAND, RR. TANK

17516-KSJ-670

$14.70

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

GROMMET, SHROUD

17541-KN4-A60

$2.85

SHROUD SET, R. TANK (TYPE1) (WL)

17545-GN1-A60ZA

Unavailable

SHROUD SET, L. TANK (TYPE1) (WL)

17555-GN1-A60ZA

Unavailable

CAP ASSY., FUEL TANK

17620-GEL-770

$31.45

GASKET, FUEL CAP

17624-GEL-770

$4.58

BRACKET, FR. FUEL TANK

17634-KZ3-860

$14.53

TUBE, FUEL

17681-GN1-000

$9.82

COLLAR, BATTERY (LOWER)

83607-356-000

$2.92

SCREW A, COWL SETTING

90103-KV3-830

$2.92

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

SCREW, SPECIAL (6X17)

90381-GZ5-000

$2.00

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

CLIP, TUBE (B8)

95002-02080

$1.80

BOLT, FLANGE (6X40)

96300-06040-00

$2.00

COLLAR

84706-415-000

$2.23

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76
