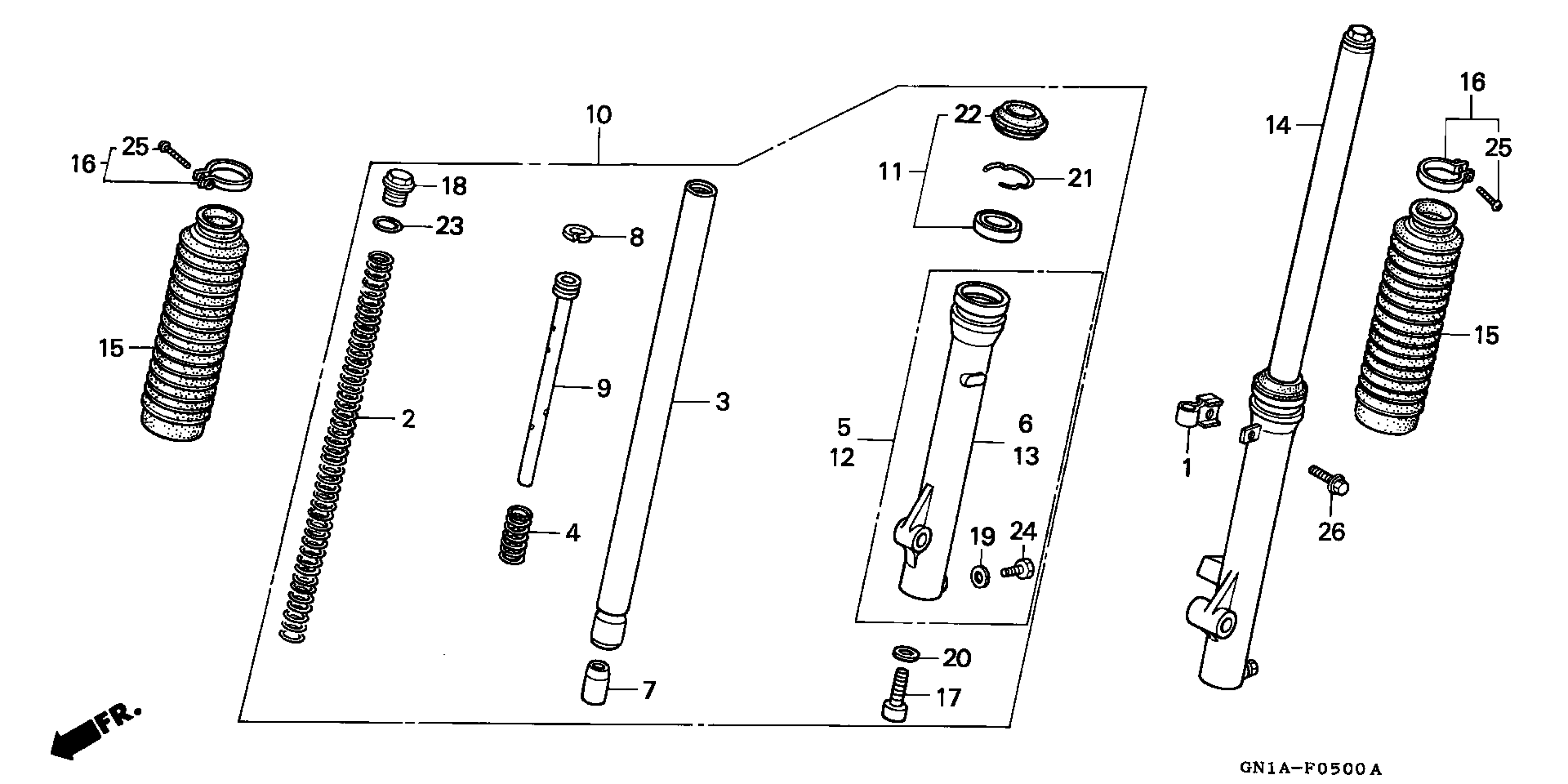

Honda XR80RA (02) MOTORCYCLE, JPN, VIN# JH2HE010-2K100001 FRONT FORK Diagram

#

Description
Price

1

CLAMP, BRAKE CABLE

45461-KN4-A60

$6.54

2

SPRING, FR. FORK (SHOWA)

51401-GN1-003

Unavailable

3

PIPE, FR. FORK (SHOWA)

51410-GN1-003

$173.84

4

SPRING, REBOUND (SHOWA)

51412-KA8-711

$7.74

6

CASE, R. (LOWER) (COO)

51420-GFW-305

$211.70

6

CASE, R. (LOWER) (COO) This part replaces 51420-KN4-A61.

51420-GFW-305

$211.70

7

PIECE, OIL LOCK (SHOWA)

51432-GN1-003

$20.48

8

RING, PISTON

51437-GM0-003

$5.07

8

RING, PISTON This part replaces 51437-383-721.

51437-GM0-003

$5.07

9

PIPE, SEAT (SHOWA)

51470-GN1-003

Unavailable

10

FORK SUB-ASSY., R. FR.

51480-GN1-A51

Unavailable

11

SEAL SET, FR. FORK

51490-GN1-013

$29.00

13

CASE, L. (LOWER) (COO)

51520-GFW-305

Unavailable

13

CASE, L. (LOWER) (COO) This part replaces 51520-KN4-A61.

51520-GFW-305

Unavailable

14

FORK SUB-ASSY., L. FR. (NOT AVAILABLE)

51580-GN1-A51

Unavailable

15

BOOT, FR. FORK *NH1* (BLACK)

51611-GN1-762ZD

$40.66

16

BAND, FR. FORK BOOT

51612-KF9-900

$10.78

17

BOLT, SOCKET (8X27)

90116-383-721

$5.13

18

BOLT, FORK (SHOWA)

90123-KA8-771

$25.54

20

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

21

RING, OIL SEAL STOPPER (SHOWA)

90601-383-721

$5.13

22

DUST SEAL (SHOWA)

91254-GN1-013

$13.86

23

O-RING (17.8X2.4) (SHOWA)

91256-383-721

$2.30

25

SCREW, PAN (3X20)

93500-03020-0G

$1.49

26

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
