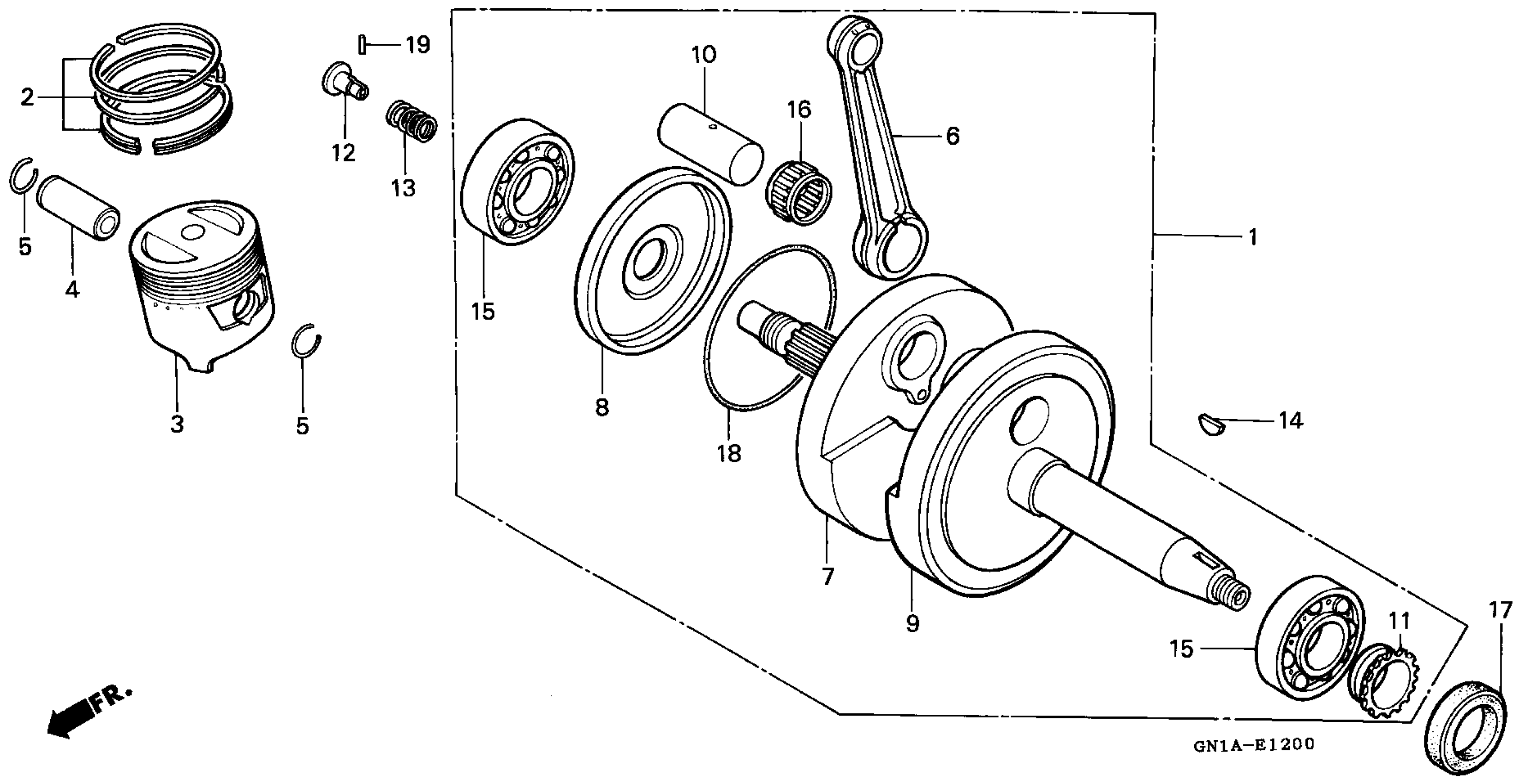

Honda XR80RA (02) MOTORCYCLE, JPN, VIN# JH2HE010-2K100001 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-GN1-A40

$382.16

2

RING SET, PISTON (STD) (RIKEN)

13011-GN1-A41

$36.86

2

RING SET, PISTON (0.25) (RIKEN) | (Optional).

13021-GN1-A41

$39.10

2

RING SET, PISTON (0.50) (RIKEN) | (Optional).

13031-GN1-A41

$36.86

2

RING SET, PISTON (0.75) (RIKEN) | (Optional).

13041-GN1-A41

$39.10

2

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13051-GN1-A41

$39.10

3

PISTON (STD)

13101-GN1-A40

$49.43

3

PISTON (0.25) | (Optional).

13102-GN1-A40

$52.43

3

PISTON (0.50) | (Optional).

13103-GN1-A40

$49.43

3

PISTON (0.75) | (Optional).

13104-GN1-A40

$52.43

3

PISTON (1.00) | (Optional).

13105-GN1-A40

Unavailable

4

PIN, PISTON

13111-GB0-910

$11.67

4

PIN, PISTON This part replaces 13111-087-000.

13111-GB0-910

$11.67

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

ROD, CONNECTING

13201-176-000

Unavailable

8

PLATE, SIDE

13312-176-000

Unavailable

9

CRANKSHAFT, L.

13321-GT9-300

Unavailable

10

PIN, CRANK

13381-176-300

Unavailable

11

SPROCKET, TIMING (14T)

14311-KEV-900

$9.43

12

THROUGH, OIL

15441-149-000

$10.12

13

SPRING, OIL THROUGH

15447-149-000

$2.92

14

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

15

BEARING, SPECIAL (22) (KOYO) This part replaces 91001-176-014.

91002-HA5-003

Unavailable

15

BEARING, SPECIAL (22) (KOYO)

91002-HA5-003

Unavailable

16

BEARING, CONNECTING ROD (RED)

91101-176-003

$39.46

16

BEARING, CONNECTING ROD (BLUE)

91102-176-003

$39.46

16

BEARING, CONNECTING ROD (WHITE)

91103-176-003

$39.46

17

OIL SEAL (19X36X7)

91202-115-015

$7.32

18

O-RING (70X2.4)

91309-302-000

$10.00

19

ROLLER (2X11.8)

96220-20118

$1.49
