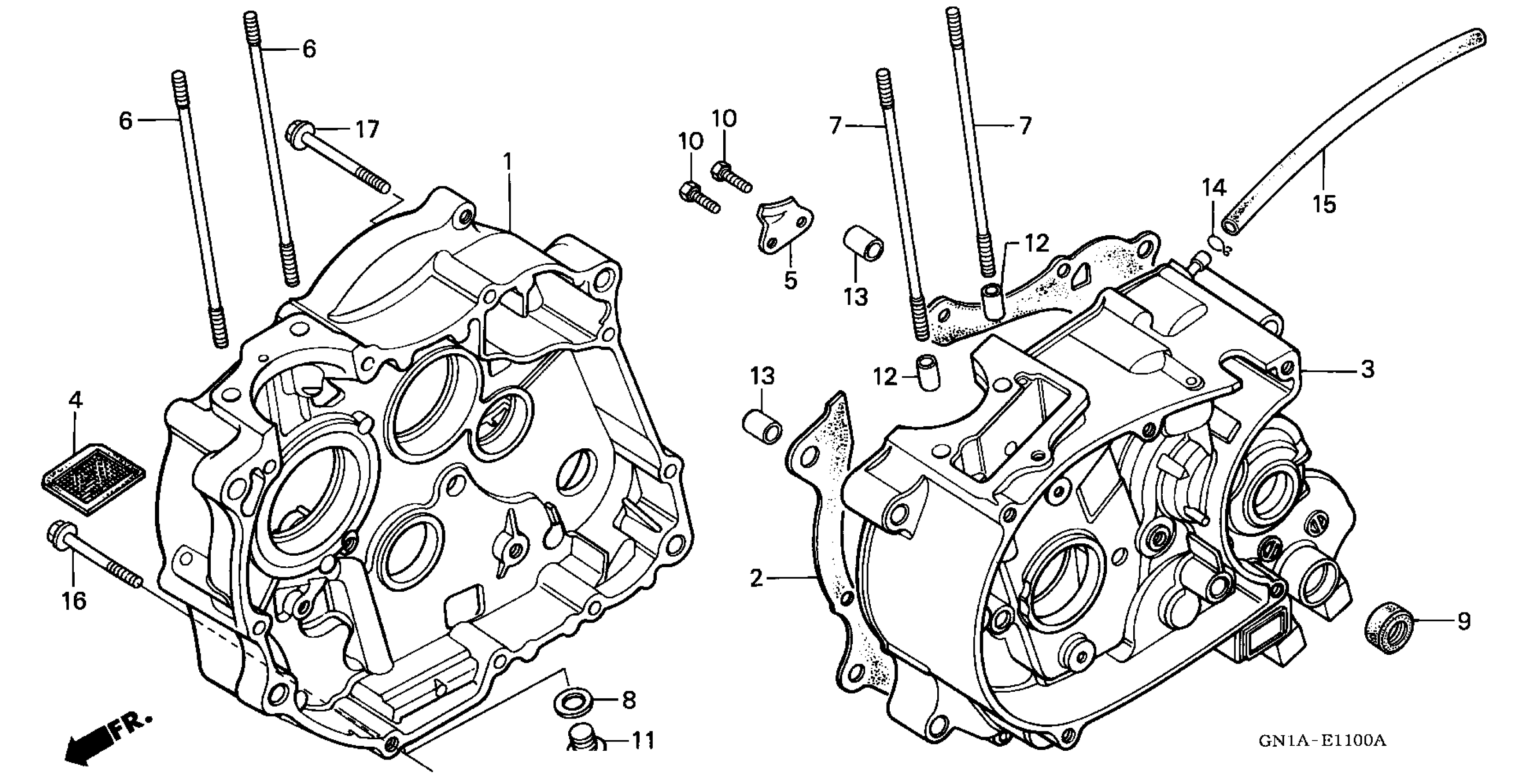

Honda XR80RA (02) MOTORCYCLE, JPN, VIN# JH2HE010-2K100001 CRANKCASE Diagram

CRANKCASE, R.

11100-GCR-000

$254.81

GASKET, CRANKCASE This part replaces 11191-GN1-730.

11191-GN1-732

$12.27

GASKET, CRANKCASE This part replaces 11191-GN1-731.

11191-GN1-732

$12.27

CRANKCASE, L.

11200-GN1-760

$326.54

SCREEN, OIL FILTER

15421-035-010

$3.63

PLATE, RATCHET GUIDE

28259-149-000

Unavailable

BOLT A, CYLINDER STUD

90031-176-000

$9.14

BOLT B, CYLINDER STUD

90032-176-000

$9.09

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.71

OIL SEAL (11.6X24X10) (ARAI)

91208-KB4-671

$3.87

BOLT, HEX. (6X16)

92101-06016-0A

$1.47

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.26

PIN, DOWEL (10X16)

94301-10160

$2.80

PIN, DOWEL (12X20)

94301-12200

$2.80

BOLT, FLANGE (6X45)

96001-06045-00

$1.81

BOLT, FLANGE (6X55)

96001-06055-00

Unavailable
