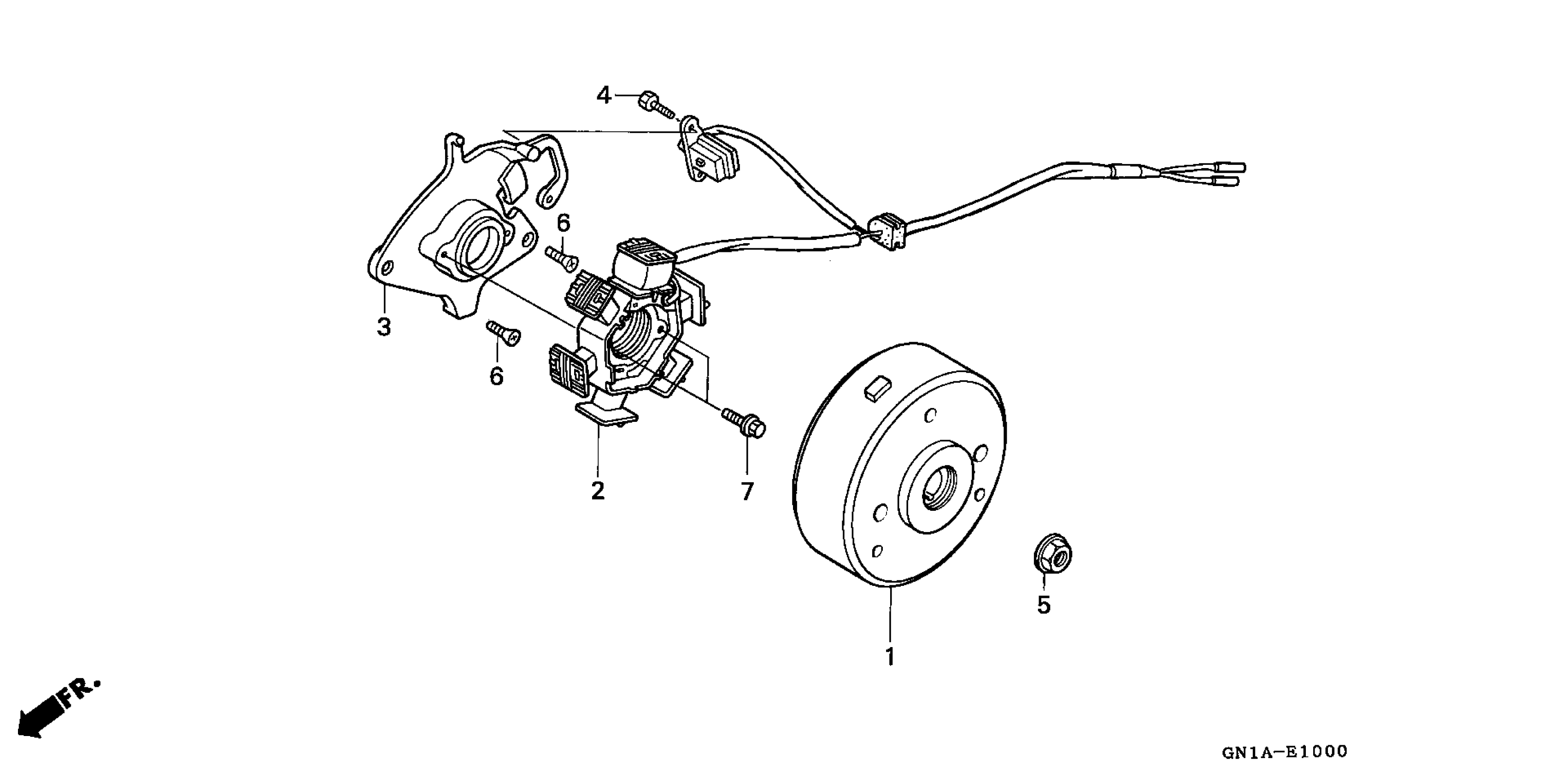

Honda XR80RA (02) MOTORCYCLE, JPN, VIN# JH2HE010-2K100001 ALTERNATOR Diagram

#

Description

Price

1

FLYWHEEL (MITSUBA)

31110-GN1-691

$237.28

2

STATOR (MITSUBA)

31120-GN1-691

$218.94

3

BASE, STATOR

31131-GT9-000

$55.06

4

SET (SOCKET5X10) This part replaces 90089-GT9-000.

90089-GT9-305

$2.93

5

NUT, FLANGE (12MM)

90309-375-003

$7.93

6

SCREW, FLAT (6X16)

93600-06016-0A

$0.97

7

BOLT, FLANGE (6X20)

96001-06020-00

$1.15
