Description

Price

1

PEDAL, GEARSHIFT

24701-167-000

$44.38

2

ARM ASSY., KICK STARTER

28300-GN1-000

Unavailable

3

ROD, RR. BRAKE

43451-GN1-730

Unavailable

5

SPRING A, BRAKE ROD

43472-KB9-750

$3.10

6

PEDAL, BRAKE

46500-KN4-A30

Unavailable

7

SLEEVE, RR. BRAKE PIVOT

46506-GN1-000

$7.88

8

SPRING, BRAKE PEDAL

46514-MB0-000

$9.38

9

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM)

94001-06200-0S

$1.49

11

NUT, FLANGE (6MM)

94050-06070

$1.49

12

PIN, SPLIT (2.0X12)

94201-20120

$1.49

13

RUBBER, CHANGE PEDAL

95011-40000

$1.49

14

RUBBER B, KICK STARTER

95011-52000

$4.12

15

JOINT B, BRAKE ARM

95015-32001

$1.49

16

PIN C, JOINT

95015-53000

$3.06

17

BOLT, FLANGE (6X25)

96300-06025-07

$1.90

18

BOLT, FLANGE (6X28)

96300-06028-07

$1.80

19

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

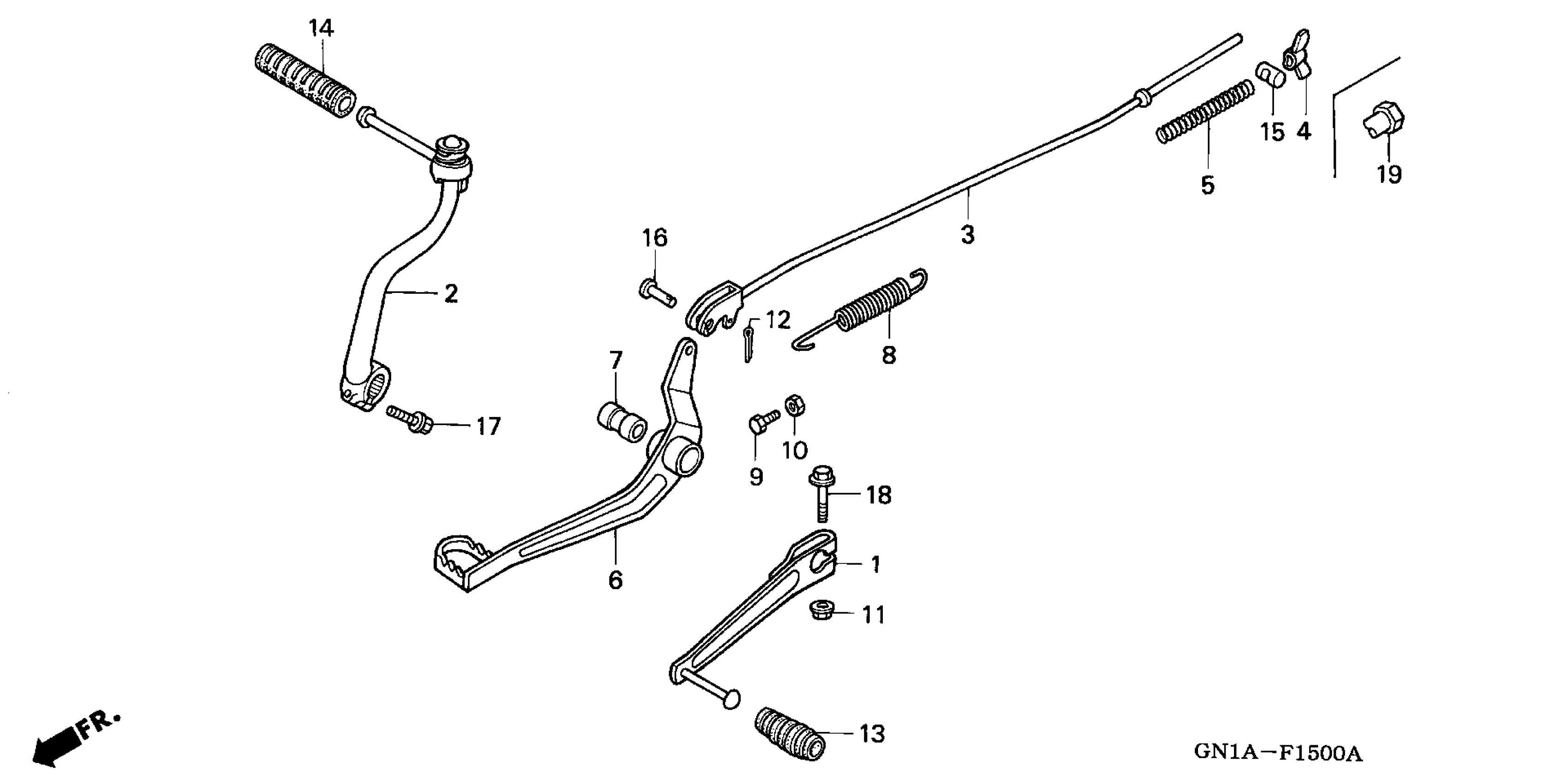

Honda XR80RA (00) MOTORCYCLE, JPN, VIN# JH2HE010-YK900001 PEDAL Diagram

PEDAL, GEARSHIFT

ARM ASSY., KICK STARTER

ROD, RR. BRAKE

SPRING A, BRAKE ROD

PEDAL, BRAKE

SLEEVE, RR. BRAKE PIVOT

SPRING, BRAKE PEDAL

BOLT, HEX. (6X16)

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

NUT, HEX. (6MM)

NUT, FLANGE (6MM)

PIN, SPLIT (2.0X12)

RUBBER, CHANGE PEDAL

RUBBER B, KICK STARTER

JOINT B, BRAKE ARM

PIN C, JOINT

BOLT, FLANGE (6X25)

BOLT, FLANGE (6X28)

NUT B, BRAKE ROD ADJUSTING
