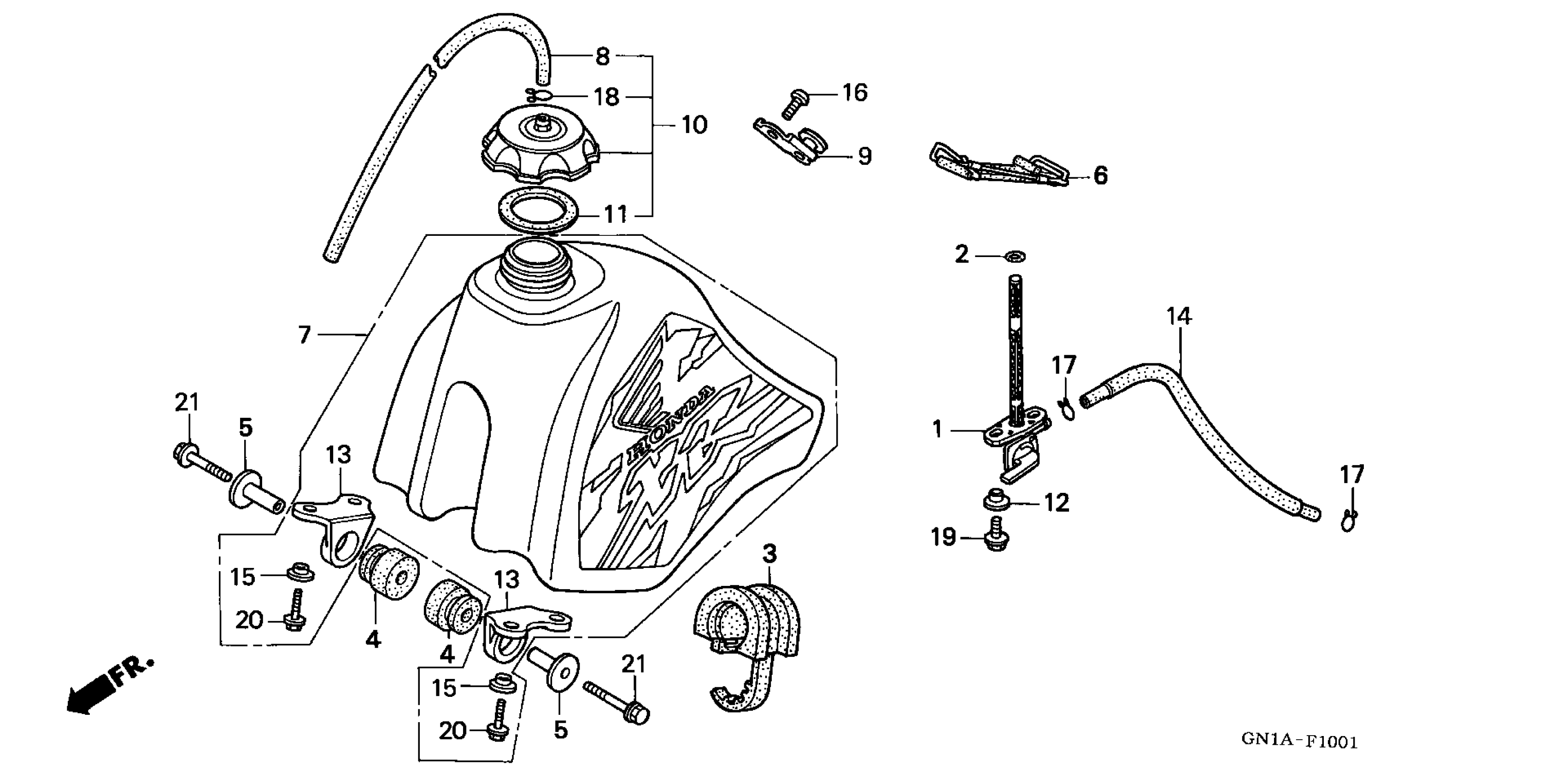

Honda XR80RA (00) MOTORCYCLE, JPN, VIN# JH2HE010-YK900001 FUEL TANK 98-00 Diagram

PETCOCK ASSY.

16950-GCF-671

$74.07

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER, TANK SETTING

17504-GN1-770

$15.40

RUBBER, TANK MOUNTING

17508-GBF-830

$5.90

COLLAR, TANK SETTING

17509-KS6-700

$9.13

BAND, RR. TANK

17516-GF5-000

$37.83

TANK SET, FUEL (TYPE1) (WL)

17520-KN4-A30ZA

Unavailable

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

STAY, FUEL TANK SETTING

17525-KN4-A10

Unavailable

CAP ASSY., FUEL TANK

17620-KT1-780

$31.82

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

BRACKET, FR. FUEL TANK

17634-KZ3-860

$14.53

TUBE, FUEL

17681-GN1-000

$9.82

COLLAR

84706-415-000

$2.23

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

SCREW, PAN (6X10)

93500-06010-0A

$1.49

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

BOLT, FLANGE (6X40)

96300-06040-00

$2.00
