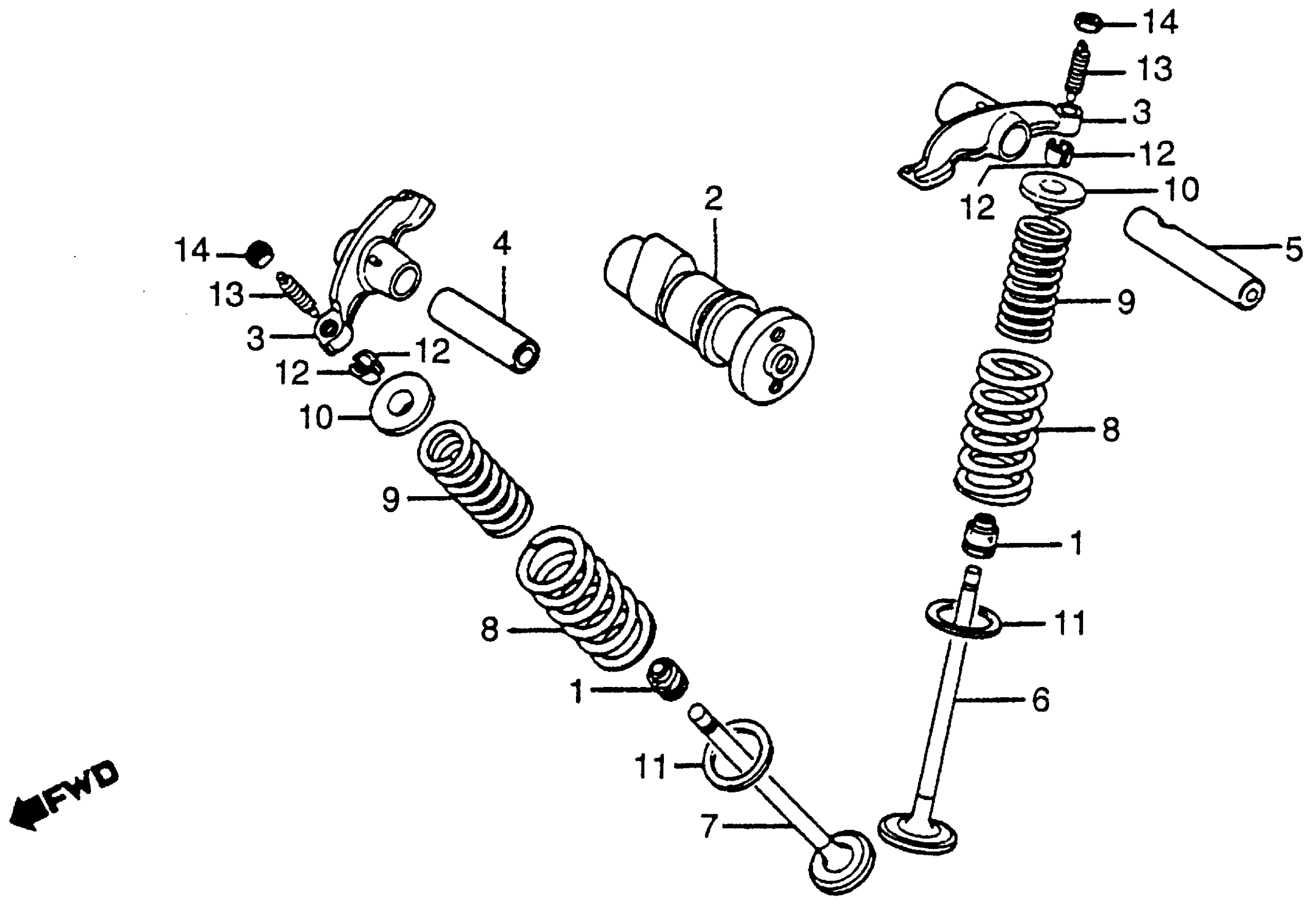

Honda XR80A (84) MOTORCYCLE, JPN, VIN# JH2HE010-EK500001 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM (ARAI) This part replaces 12208-MC0-003.

12208-413-003

$10.44

SEAL, VALVE STEM (ARAI)

12208-413-003

$10.44

SEAL, VALVE STEM (ARAI) This part replaces 12209-107-760.

12208-413-003

$10.44

CAMSHAFT This part replaces 14101-153-000.

14101-153-010

$70.02

ARM, VALVE ROCKER This part replaces 14431-116-000.

14431-116-010

$38.17

ARM, VALVE ROCKER

14431-116-010

$38.17

SHAFT, VALVE ROCKER ARM

14451-035-000

$8.09

SHAFT, VALVE ROCKER ARM

14451-149-000

$18.25

VALVE, IN.

14711-152-000

$34.11

VALVE, EX.

14721-176-000

$71.51

SPRING, VALVE (OUTER)

14751-149-000

$5.35

SPRING, VALVE (INNER)

14761-115-010

$4.63

RETAINER, VALVE SPRING

14771-107-020

$7.63

SEAT, VALVE SPRING (OUTER)

14775-107-000

$3.90

COTTER, VALVE (SANKO)

14781-107-003

$2.47

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.47

SCREW, TAPPET ADJ.

90012-333-000

$2.66

NUT, TAPPET ADJ.

90206-001-000

$1.60
