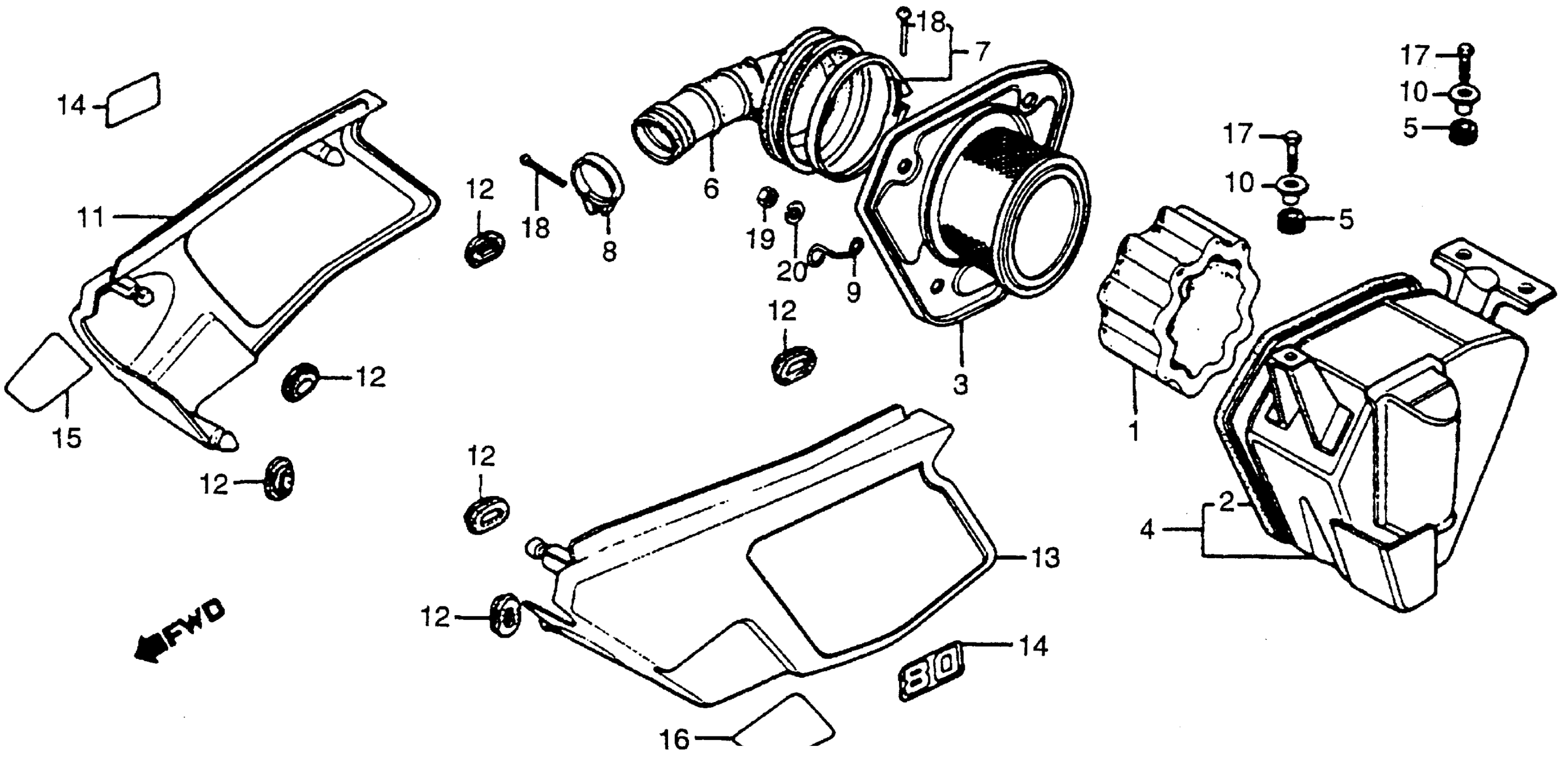

Honda XR80A (83) MOTORCYCLE, JPN, VIN# JH2HE010-DK400004 TO JH2HE010-DK412075 AIR CLEANER + SIDE COVER 83-84 Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-153-010

$11.18

2

GASKET, AIR CLEANER HOUSING (NOT AVAILABLE)

17226-152-300

Unavailable

3

COVER, AIR CLEANER (NOT AVAILABLE)

17228-153-000

Unavailable

4

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-176-750

Unavailable

5

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

6

TUBE, AIR CLEANER CONNECTING

17253-176-000

Unavailable

7

BAND, AIR CLEANER CONNECTING TUBE

17255-107-000

Unavailable

8

BAND, CARBURETOR INSULATOR

17256-GF5-000

Unavailable

8

BAND, CARBURETOR INSULATOR This part replaces 17256-159-000.

17256-GF5-000

Unavailable

9

CLIP, AIR VENT TUBE (NOT AVAILABLE)

17265-159-610

Unavailable

10

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

10

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

10

COLLAR, RR. FENDER

61105-428-000

Unavailable

11

COVER, R. SIDE *R119* (WOL) (FLASH RED) (NOT AVAILABLE)

83510-KA8-710ZB

Unavailable

12

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

13

COVER, L. SIDE *R119* (WOL) (FLASH RED) (NOT AVAILABLE)

83610-KA8-710ZB

Unavailable

14

EMBLEM, SIDE COVER (NOT AVAILABLE)

87127-176-680

Unavailable

15

LABEL, MUFFLER CAUTION (NOT AVAILABLE)

87504-KA8-710

Unavailable

16

LABEL, AIR CLEANER CAUTION

87508-KA8-710

Unavailable

17

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

17

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

18

SCREW, PAN (4X25)

93500-04025-0A

$1.93

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49
