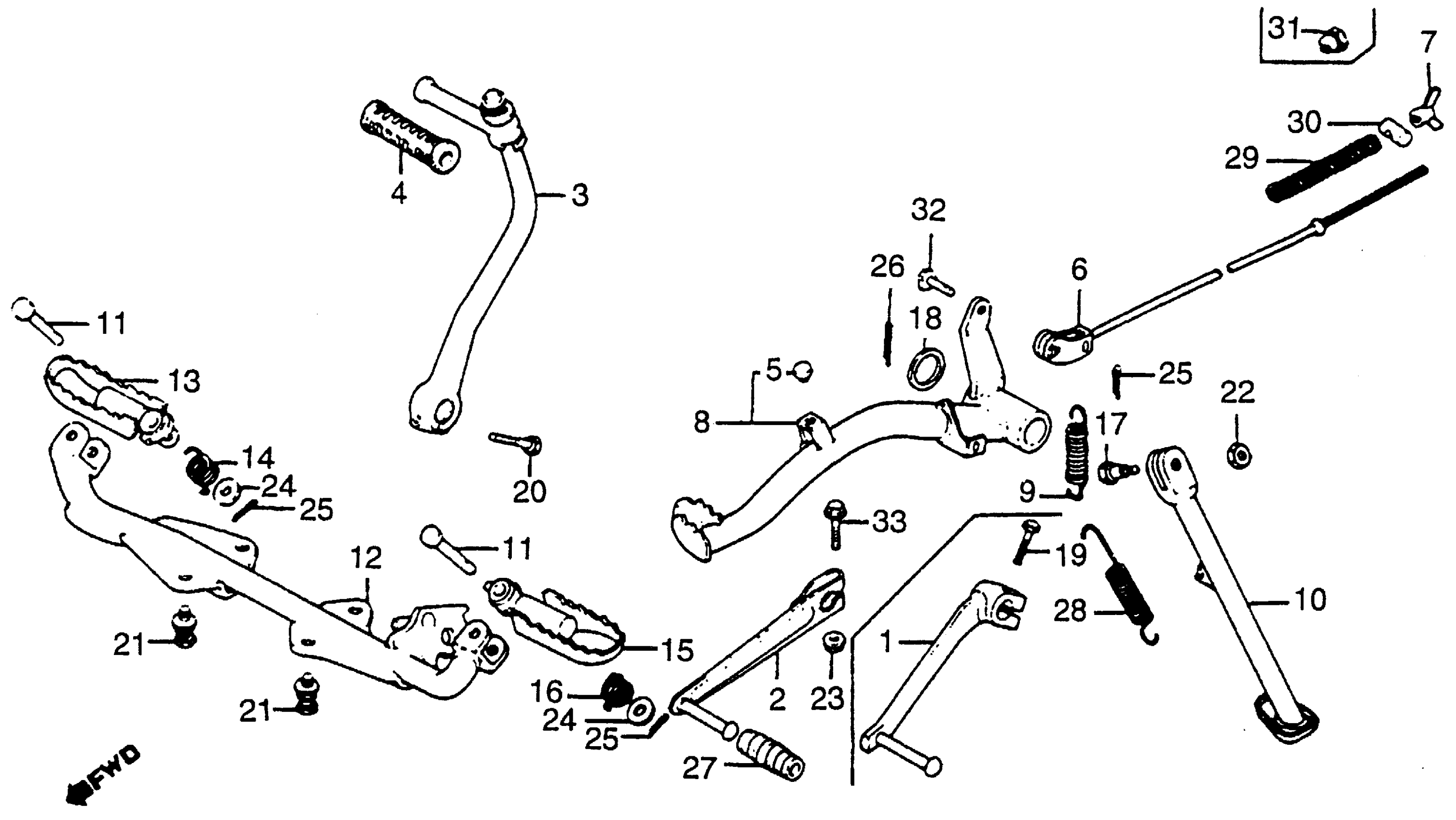

Honda XR80A (80) MOTORCYCLE, JPN, VIN# HE01-5100003 TO HE01-5122777 PEDAL + KICK STARTER ARM + STAND 80-84 Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-152-710

Unavailable

3

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-195-670

Unavailable

4

RUBBER, KICK STARTER

28311-342-000

$6.71

5

PLUG, CHAIN GUARD

40514-333-000

$2.57

6

ROD, RR. BRAKE

43451-195-670

Unavailable

8

PEDAL, BRAKE (NOT AVAILABLE)

46500-152-000

Unavailable

9

SPRING, BRAKE PEDAL

46514-052-000

Unavailable

10

BAR, SIDE STAND (NOT AVAILABLE)

50531-195-670

Unavailable

11

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

11

PIN, STEP BAR JOINT

50603-033-010

$3.30

12

BAR, FOOTPEG *NH1* (BLACK) (NOT AVAILABLE)

50610-195-670ZA

Unavailable

13

ARM, R. FOOTPEG (NOT AVAILABLE)

50616-110-790

Unavailable

13

ARM, R. FOOTPEG (NOT AVAILABLE) This part replaces 50616-152-000.

50616-110-790

Unavailable

14

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

15

ARM, L. FOOTPEG (NOT AVAILABLE)

50642-110-790

Unavailable

15

ARM, L. FOOTPEG (NOT AVAILABLE) This part replaces 50642-152-000.

50642-110-790

Unavailable

16

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

17

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

18

WASHER (17X22)

90521-028-000

$1.89

19

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

19

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

20

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

20

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

21

BOLT-WASHER (8X20) This part replaces 93413-08020-00.

93403-08020-00

Unavailable

21

BOLT-WASHER (8X20) This part replaces 93483-08020-00.

93403-08020-00

Unavailable

22

NUT, HEX. (10MM)

94002-10000-0S

$4.06

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

25

PIN, COTTER (1.6X25)

94201-16250

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

26

PIN, COTTER (3.0X45)

94201-30450

$1.49

27

RUBBER, SHIFT PEDAL

95011-40000

$1.49

28

SPRING A, SIDE STAND

95014-72102

$2.84

29

SPRING A, BRAKE ROD

95014-73100

$1.49

30

JOINT, BRAKE ARM

95015-32001

$1.49

31

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

32

PIN B, BRAKE ROD JOINT

95015-52000

$2.03
