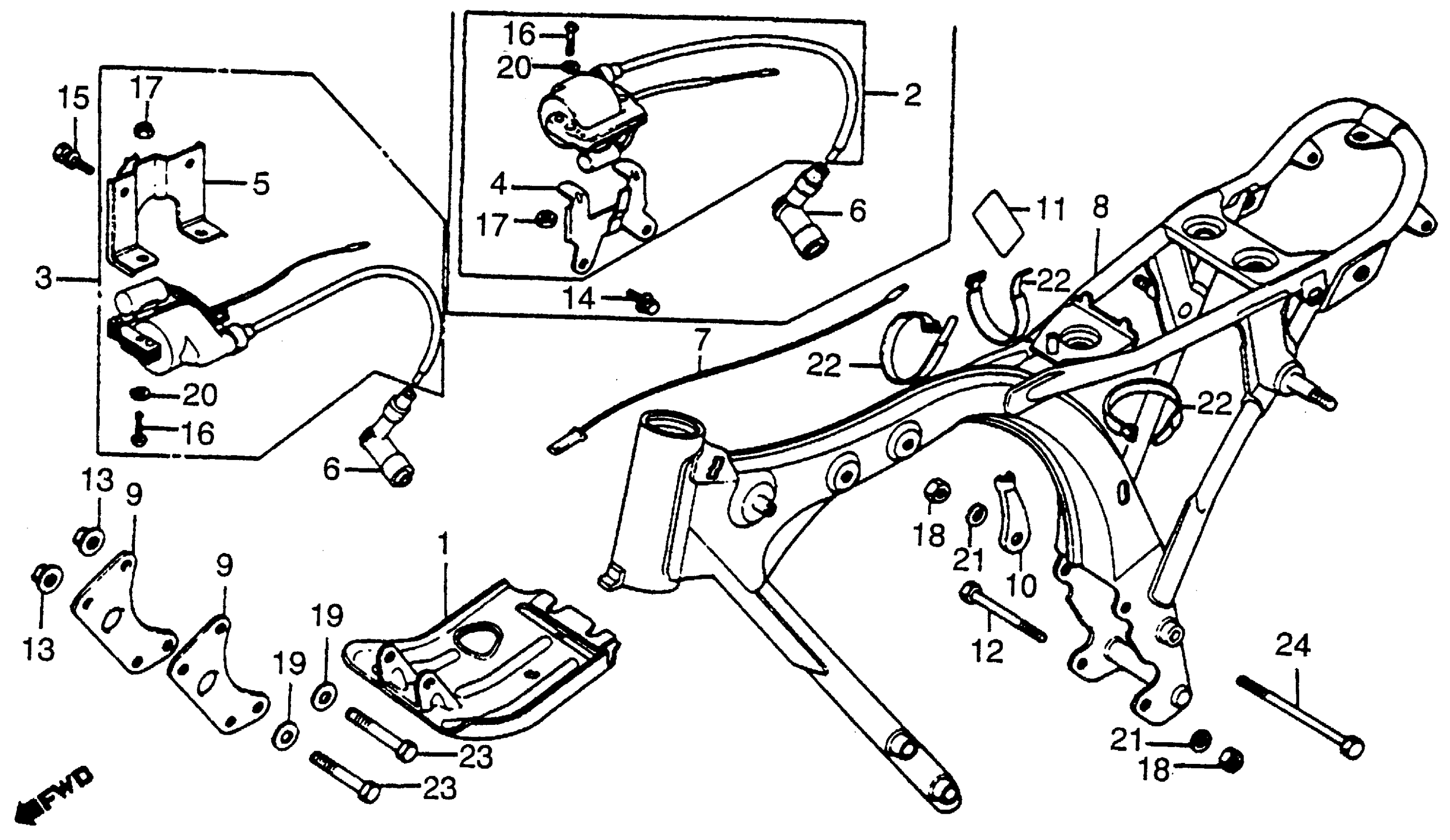

Honda XR80A (80) MOTORCYCLE, JPN, VIN# HE01-5100003 TO HE01-5122777 FRAME + IGNITION COIL Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE (NOT AVAILABLE) This part replaces 11911-195-670.

11911-195-000

Unavailable

2

COIL ASSY., IGNITION

30500-153-003

Unavailable

4

STAY, IGNITION COIL MOUNT (NOT AVAILABLE)

30501-153-000

Unavailable

6

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$16.05

6

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$16.05

7

WIRE HARNESS (NOT AVAILABLE)

32100-153-000

Unavailable

8

FRAME *R23* (TAHITIAN RED) (NOT AVAILABLE)

50100-176-670ZA

Unavailable

9

PLATE, FR. ENGINE HANGER *R23* (TAHITIAN RED) (NOT AVAILABLE)

50351-149-000ZB

Unavailable

10

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50356-149-000

Unavailable

11

LABEL, AIR CLEANER CAUTION

87508-120-000

$4.90

12

BOLT, HEX. (8X95) (NOT AVAILABLE)

90102-149-000

Unavailable

13

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$0.86

13

NUT, FLANGE (8MM)

94050-08000

$0.86

14

BOLT-WASHER (6X12)

93402-06012-00

$1.61

14

BOLT-WASHER (6X12) This part replaces 93412-06012-00.

93402-06012-00

$1.61

14

BOLT-WASHER (6X12) This part replaces 93482-06012-00.

93402-06012-00

$1.61

16

SCREW, PAN (6X20) This part replaces 93500-06020-08.

93500-06020-0H

$0.90

16

SCREW, PAN (6X20)

93500-06020-0H

$0.90

17

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.19

17

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.19

17

NUT, HEX. (6MM)

94001-06080-0S

$1.19

18

NUT, HEX. (8MM)

94030-08000

$0.97

19

WASHER, PLAIN (8MM)

94101-08000

$0.75

20

WASHER, SPRING (6MM)

94111-06800

$1.03

21

WASHER, SPRING (8MM)

94111-08000

$0.90

22

BAND A3, CABLE

95014-61300

$1.80

23

BOLT, HEX. (8X60) This part replaces 95300-08060-00.

95301-08060-00

$1.35

24

BOLT, HEX. (8X100)

95300-08100-00

Unavailable
