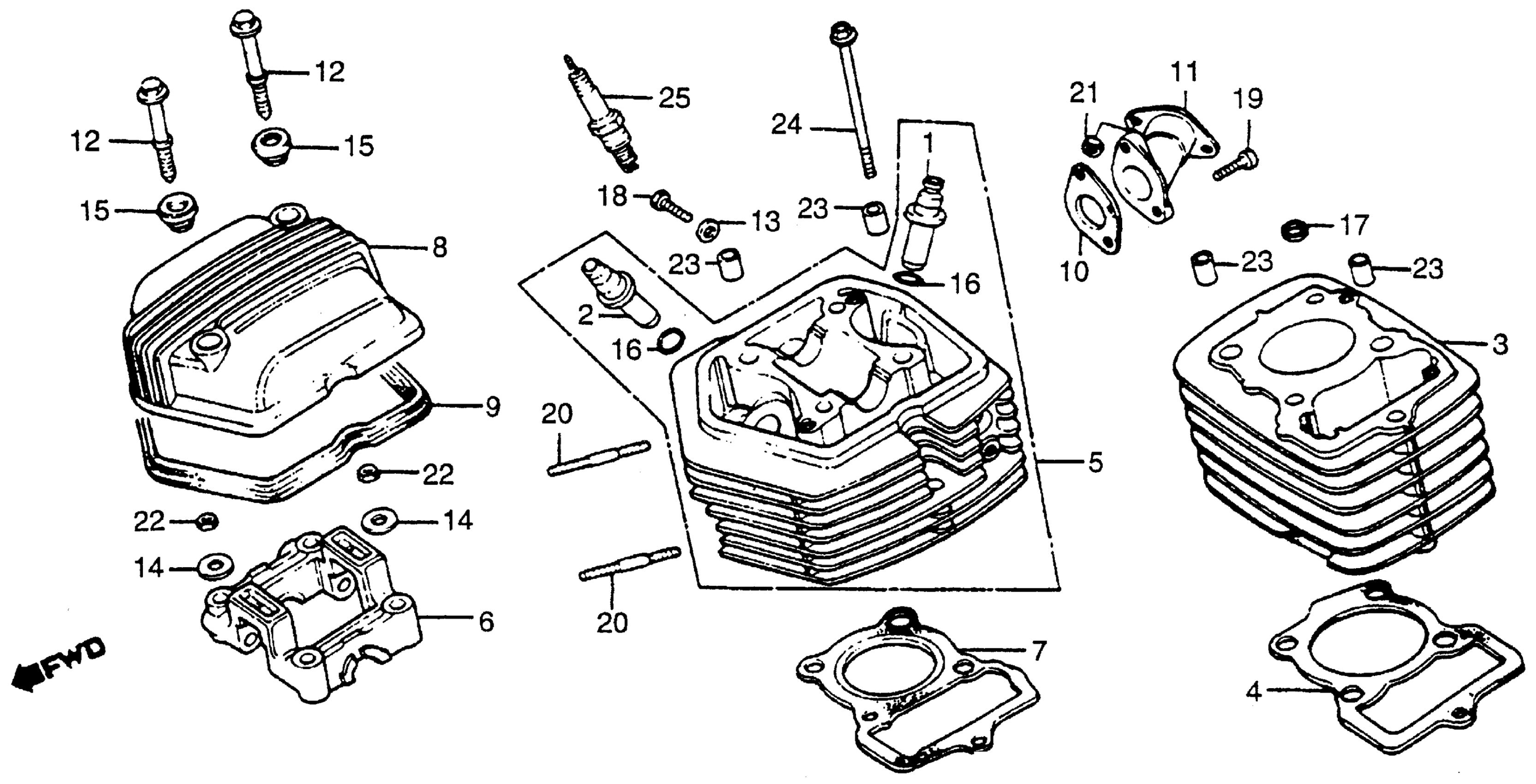

Honda XR80A (80) MOTORCYCLE, JPN, VIN# HE01-5100003 TO HE01-5122777 CYLINDER HEAD + CYLINDER Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-149-300.

12021-149-405

$11.86

1

GUIDE, VALVE

12021-149-405

$11.86

2

GUIDE, VALVE This part replaces 12023-116-300.

12023-465-405

$18.90

2

GUIDE, VALVE

12023-465-405

$18.90

3

CYLINDER

12100-176-000

Unavailable

4

GASKET, CYLINDER This part replaces 12191-GN1-730.

12191-GN1-732

$6.61

4

GASKET, CYLINDER This part replaces 12191-149-000.

12191-GN1-732

$6.61

4

GASKET, CYLINDER This part replaces 12191-149-010.

12191-GN1-732

$6.61

5

CYLINDER HEAD This part replaces 12200-152-020.

12200-152-030

Unavailable

5

CYLINDER HEAD

12200-152-030

Unavailable

6

HOLDER, CAMSHAFT

12210-149-020

$114.85

7

GASKET, CYLINDER HEAD | Use up to Engine SN 5105139 This part replaces 12251-152-010.

12251-GN1-880

Unavailable

7

GASKET, CYLINDER HEAD | Use up to Engine SN 5105139 This part replaces 12251-152-020.

12251-GN1-880

Unavailable

7

GASKET, CYLINDER HEAD

12251-GN1-880

Unavailable

7

GASKET, CYLINDER HEAD | Use up to Engine SN 5118819

12251-GN1-880

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-152-000.

12251-GN1-880

Unavailable

7

GASKET, CYLINDER HEAD | Use up to Engine SN 5118819 This part replaces 12251-152-000.

12251-GN1-880

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-152-030.

12251-GN1-880

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-152-040.

12251-GN1-880

Unavailable

8

COVER, CYLINDER HEAD This part replaces 12301-149-010.

12301-GN1-A80

$73.15

8

COVER, CYLINDER HEAD This part replaces 12301-149-020.

12301-GN1-A80

$73.15

8

COVER, CYLINDER HEAD This part replaces 12301-149-030.

12301-GN1-A80

$73.15

9

GASKET, HEAD COVER (ARAI)

12391-149-003

$20.33

10

GASKET, IN. PIPE This part replaces 16229-GN1-A41.

16229-GN1-A43

$5.90

10

GASKET, IN. PIPE This part replaces 16229-GN1-730.

16229-GN1-A43

$5.90

10

GASKET, IN. PIPE This part replaces 16229-GN1-880.

16229-GN1-A43

$5.90

10

GASKET, IN. PIPE This part replaces 16229-153-000.

16229-GN1-A43

$5.90

10

GASKET, IN. PIPE This part replaces 16229-153-306.

16229-GN1-A43

$5.90

11

PIPE, INLET (NOT AVAILABLE)

17110-176-000

Unavailable

12

BOLT, SPECIAL (6X45.5) | Use up to Engine SN 5105139

90016-415-000

Unavailable

12

BOLT, SPECIAL (6X45.5) | Use from Engine SN 5105140

90017-436-000

$12.06

13

WASHER, SEALING (6MM)

90441-028-010

$2.92

14

WASHER (8MM)

90483-028-000

$1.51

15

RUBBER, SETTING

90541-195-670

$4.28

16

O-RING (10X1.6)

91301-200-000

$3.01

17

GASKET, RUBBER (9MM) This part replaces 91306-035-000.

91306-141-000

$4.65

17

GASKET, RUBBER (9MM)

91306-141-000

$4.65

18

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

19

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

19

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

20

BOLT, STUD (6X18) This part replaces 92700-06030.

92900-06018-0B

$1.55

20

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.55

20

BOLT, STUD (6X18) This part replaces 92700-06032.

92900-06018-0B

$1.55

20

BOLT, STUD (6X18) This part replaces 92700-06032-30.

92900-06018-0B

$1.55

20

BOLT, STUD (6X18)

92900-06018-0B

$1.55

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (8MM)

94002-08200-0S

$1.49

23

PIN A, DOWEL (10X16)

94301-10160

$2.28

24

BOLT, FLANGE (6X110) This part replaces 95700-06110-08.

95701-06110-08

$3.79

24

BOLT, FLANGE (6X110)

95701-06110-08

$3.79

25

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57710.

98056-57713

$2.38

25

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57711.

98056-57713

$2.38

25

SPARK PLUG (C7HS) (NGK)

98056-57713

$2.38

25

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57717.

98056-57713

$2.38

25

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57722.

98056-57713

$2.38
