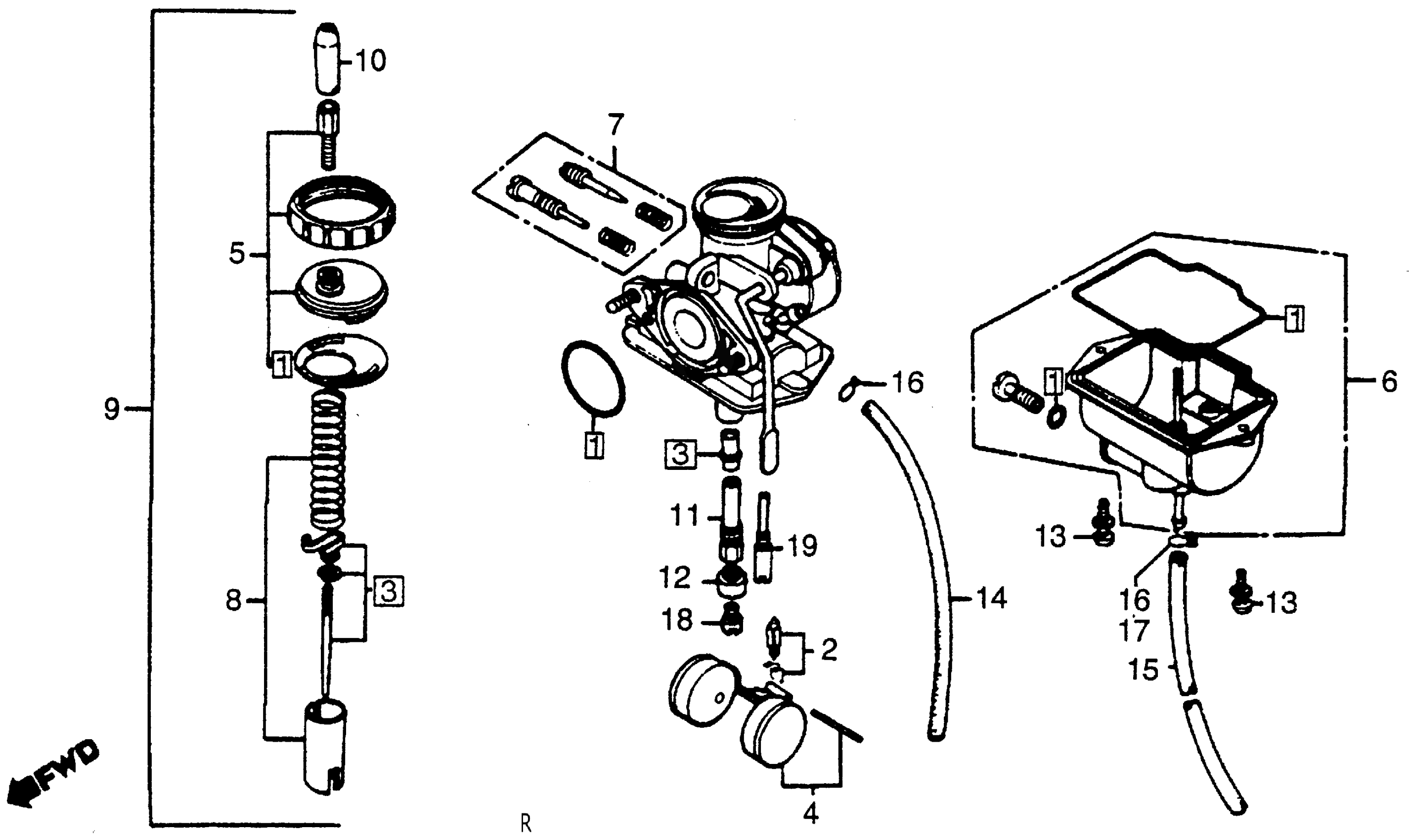

Honda XR80A (80) MOTORCYCLE, JPN, VIN# HE01-5100003 TO HE01-5122777 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-GCR-000

$13.86

1

GASKET SET This part replaces 16010-116-700.

16010-GCR-000

$13.86

2

VALVE SET, FLOAT This part replaces 16011-147-004.

16011-881-741

$24.85

2

VALVE SET, FLOAT This part replaces 16011-147-305.

16011-881-741

$24.85

2

VALVE SET, FLOAT

16011-881-741

$24.85

3

NEEDLE SET, JET

16012-176-004

Unavailable

4

FLOAT SET

16013-107-810

$35.88

5

TOP SET

16014-116-700

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-153-004

Unavailable

7

SCREW SET

16016-143-620

$24.01

8

VALVE SET, THROTTLE

16022-153-004

$51.10

9

CARBURETOR ASSY.

16100-176-671

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

10

CAP, CABLE SEALING

16118-166-004

$8.08

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-153-004

Unavailable

12

HOLDER, JET

16168-355-700

$9.15

13

SCREW-WASHER (4X12)

93892-04012-08

$1.49

14

BULK HOSE, FUEL (3.5X3000) (3.5X150)

95001-35003-60M

$20.85

15

TUBE, FUEL This part replaces 16199-402-004.

16199-KG4-405

$9.49

16

CLIP, TUBE (B7)

95002-02070

$1.80

17

CLIP, TUBE (B6.5)

95002-02650

$1.49

18

JET, MAIN (#95) This part replaces 99101-116-0950.

99102-GHB-0950

$9.46

18

JET, MAIN (#95)

99102-GHB-0950

$9.46

19

JET, SLOW (#35)

99103-116-0350

$18.15
