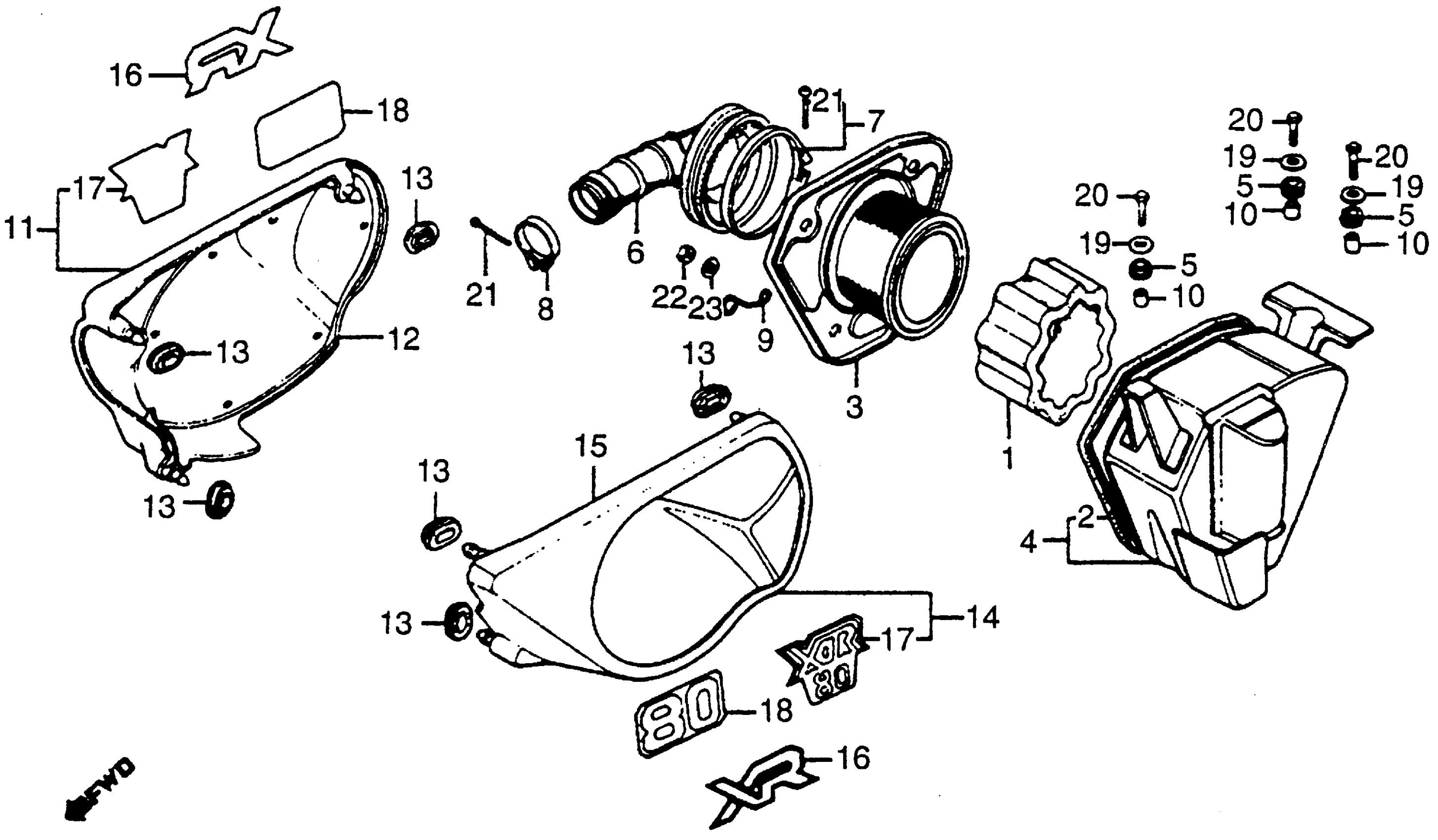

Honda XR80A (80) MOTORCYCLE, JPN, VIN# HE01-5100003 TO HE01-5122777 AIR CLEANER + SIDE COVER 79-82 Diagram

ELEMENT, AIR CLEANER

17211-153-010

$11.18

GASKET, AIR CLEANER HOUSING (NOT AVAILABLE)

17226-152-300

Unavailable

COVER, AIR CLEANER (NOT AVAILABLE)

17228-153-000

Unavailable

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-176-670

Unavailable

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

TUBE, AIR CLEANER CONNECTING

17253-176-000

Unavailable

BAND, AIR CLEANER CONNECTING TUBE

17255-107-000

Unavailable

BAND, CARBURETOR INSULATOR

17256-GF5-000

Unavailable

BAND, CARBURETOR INSULATOR This part replaces 17256-159-000.

17256-GF5-000

Unavailable

CLIP, AIR VENT TUBE (NOT AVAILABLE)

17265-159-610

Unavailable

COLLAR, RR. TURN SIGNAL STAY

33603-053-650

$1.64

COVER ASSY., R. SIDE *R23* (WL) (TAHITIAN RED) (NOT AVAILABLE)

83500-176-000ZA

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

COVER ASSY., L. SIDE *R23* (WL) (TAHITIAN RED) (NOT AVAILABLE)

83600-176-000ZA

Unavailable

EMBLEM, SIDE COVER (NOT AVAILABLE)

87128-176-300

Unavailable

WASHER, WHEEL (6MM)

90563-355-000

$3.13

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

SCREW, PAN (4X25)

93500-04025-0A

$1.93

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49
