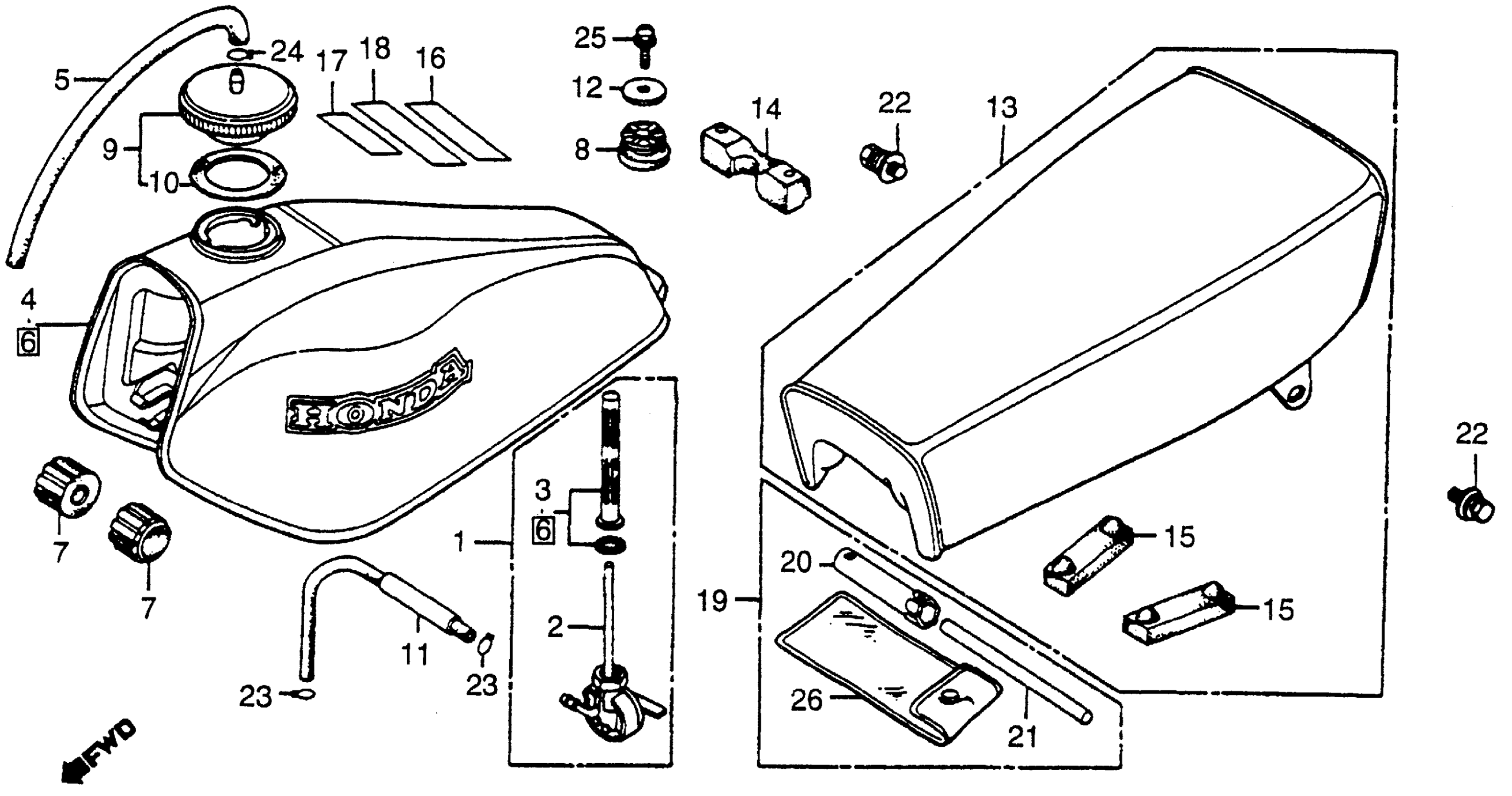

Honda XR80A (79) MOTORCYCLE, JPN, VIN# HE01-5000012 TO HE01-5027474 FUEL TANK + SEAT 79-80 Diagram

#

Description
Price

1

PETCOCK, FUEL | Use from Frame SN 5021215

16950-GF6-015

$67.92

1

PETCOCK, FUEL | Use from Frame SN 5021215 This part replaces 16950-KE6-830.

16950-GF6-015

$67.92

1

PETCOCK ASSY. | Use up to Frame SN 5021214 This part replaces 16950-149-005.

16950-149-025

$74.04

1

PETCOCK ASSY. | Use up to Frame SN 5021214 This part replaces 16950-149-015.

16950-149-025

$74.04

1

PETCOCK ASSY. | Use up to Frame SN 5021214

16950-149-025

$74.04

1

PETCOCK, FUEL | Use from Frame SN 5021215 This part replaces 16950-164-015.

16950-GF6-015

$67.92

1

PETCOCK, FUEL | Use from Frame SN 5021215 This part replaces 16950-164-025.

16950-GF6-015

$67.92

1

PETCOCK, FUEL | Use from Frame SN 5021215 This part replaces 16950-164-035.

16950-GF6-015

$67.92

2

BODY SET, PETCOCK (HONDA KIKAKI) | Use from Frame SN 5021215

16951-GF6-005

Unavailable

2

BODY SET, PETCOCK (HONDA KIKAKI) | Use up to Frame SN 5021214 This part replaces 16951-149-005.

16951-149-025

Unavailable

2

BODY SET, PETCOCK (HONDA KIKAKI) | Use up to Frame SN 5021214 This part replaces 16951-149-015.

16951-149-025

Unavailable

2

BODY SET, PETCOCK (HONDA KIKAKI) | Use up to Frame SN 5021214

16951-149-025

Unavailable

2

BODY SET, PETCOCK (HONDA KIKAKI) | Use from Frame SN 5021215 This part replaces 16951-164-015.

16951-GF6-005

Unavailable

2

BODY SET, PETCOCK (HONDA KIKAKI) | Use from Frame SN 5021215 This part replaces 16951-164-025.

16951-GF6-005

Unavailable

2

BODY SET, PETCOCK (HONDA KIKAKI) | Use from Frame SN 5021215 This part replaces 16951-164-035.

16951-GF6-005

Unavailable

3

SCREEN SET, FUEL STRAINER | Use up to Frame SN 5021214 This part replaces 16952-377-701.

16953-155-305

Unavailable

3

SCREEN SET, FUEL STRAINER | Use up to Frame SN 5021214 This part replaces 16953-155-015.

16953-155-305

Unavailable

3

SCREEN SET, FUEL STRAINER This part replaces 16953-155-015.

16953-155-305

Unavailable

3

SCREEN SET, FUEL STRAINER | Use up to Frame SN 5021214

16953-155-305

Unavailable

3

SCREEN SET, FUEL STRAINER

16953-155-305

Unavailable

4

TANK SUB-ASSY., FUEL *R23* (WL) (TAHITIAN RED) (NOT AVAILABLE)

17520-176-000ZA

Unavailable

5

TUBE, FUEL CAP BREATHER (NOT AVAILABLE)

17520-357-000

Unavailable

7

RUBBER, FR. FUEL TANK

17611-HA5-000

$5.21

7

RUBBER, FR. FUEL TANK This part replaces 17611-176-000.

17611-HA5-000

$5.21

8

RUBBER, RR. FUEL TANK

17613-176-000

$7.64

9

CAP, FUEL FILLER This part replaces 17620-373-010.

17620-428-020

Unavailable

9

CAP, FUEL FILLER This part replaces 17620-373-020.

17620-428-020

Unavailable

9

CAP, FUEL FILLER This part replaces 17620-428-000.

17620-428-020

Unavailable

9

CAP, FUEL FILLER This part replaces 17620-428-010.

17620-428-020

Unavailable

9

CAP, FUEL FILLER

17620-428-020

Unavailable

10

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

10

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

11

TUBE, FUEL This part replaces 17681-153-000.

17681-397-000

Unavailable

11

TUBE, FUEL

17681-397-000

Unavailable

12

WASHER, FR. COVER SETTING WASHER, TANK SETTING

64347-001-000

$2.10

13

SEAT COMP SINGLE This part replaces 77100-176-000.

77100-176-406

Unavailable

14

RUBBER, SEAT CUSHION (NOT AVAILABLE)

77205-176-000

Unavailable

15

RUBBER B, SEAT SETTING

77205-286-000

$5.28

16

LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE) This part replaces 87504-130-720ZB.

87504-130-720ZA

Unavailable

17

LABEL, OPERATOR WARNING *NH0* (CHAMPIONSHIP WHITE)

87510-147-670ZB

Unavailable

18

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

19

TOOL SET (NOT AVAILABLE)

89010-153-000

Unavailable

20

WRENCH, SPARK PLUG This part replaces 89216-045-000.

89216-045-010

$6.26

20

WRENCH, SPARK PLUG

89216-045-010

$6.26

20

WRENCH, SPARK PLUG This part replaces 89216-045-670.

89216-045-010

$6.26

21

BAR, HANDLE

89217-045-670

$4.94

22

BOLT-WASHER (8X16) This part replaces 93413-08016-00.

93403-08016-00

Unavailable

22

BOLT-WASHER (8X16) This part replaces 93483-08016-00.

93403-08016-00

Unavailable

23

CLIP, TUBE (B8)

95002-02080

$1.80

25

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

25

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

26

BAG, TOOL (160MM)

99008-01600

$2.22
