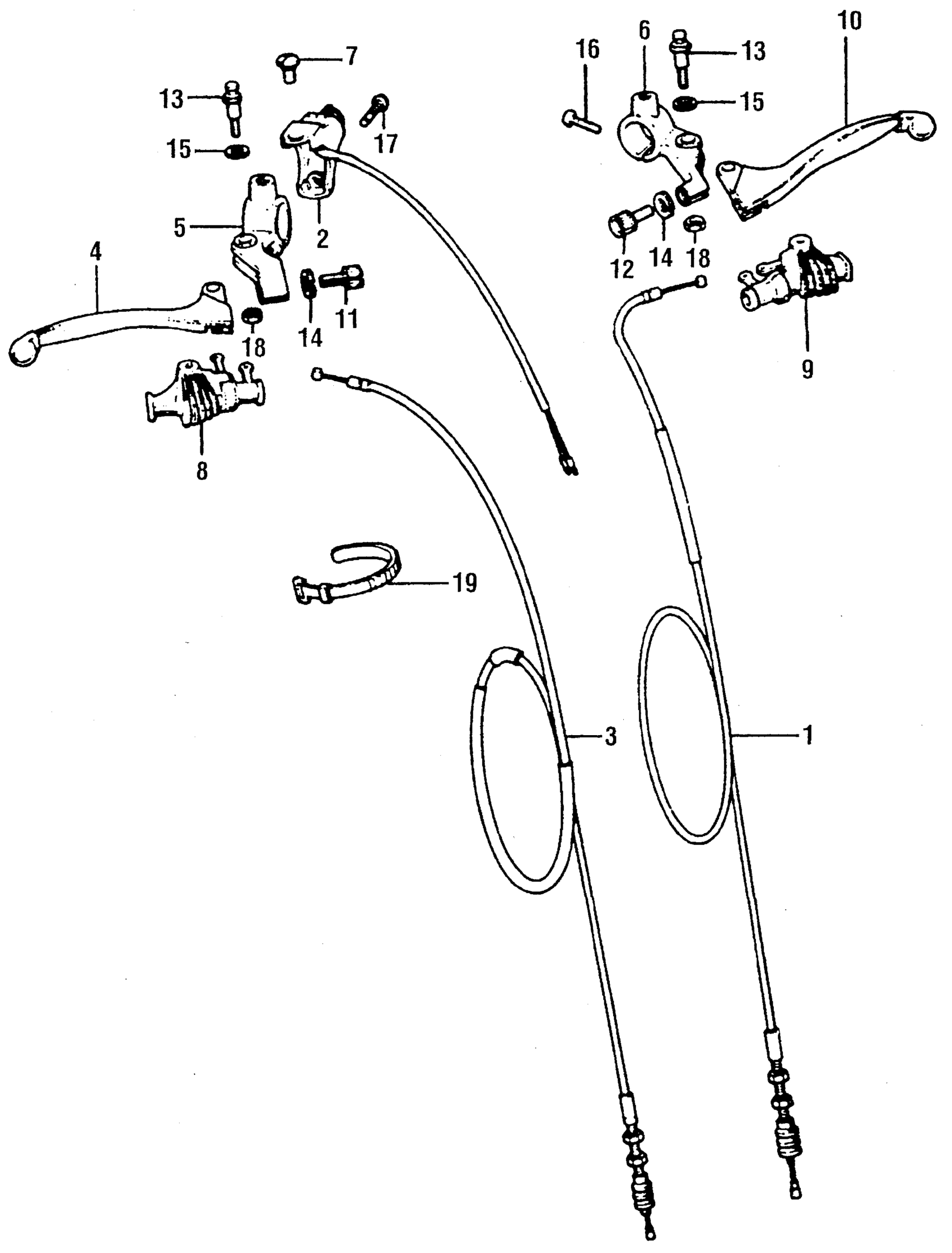

Honda XR75K2A MOTORCYCLE, JPN, VIN# XR75-1200002 TO XR75-1219301 STOP SWITCH + HANDLE LEVER Diagram

CABLE, CLUTCH (NA USE ALT:22870-GN1-000)

22870-107-610

Unavailable

CABLE, CLUTCH (NA USE ALT:22870-GN1-000) This part replaces 22870-116-670.

22870-107-610

Unavailable

CABLE, CLUTCH (NA USE ALT:22870-GN1-000) This part replaces 22870-116-671.

22870-107-610

Unavailable

SWITCH ASSY., STOP (NOT AVAILABLE)

35320-329-811

Unavailable

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-116-670

Unavailable

LEVER, R. HANDLEBAR This part replaces 53170-116-690.

53175-116-690

$16.94

LEVER, R. HANDLEBAR

53175-116-690

$16.94

BRACKET, R. HANDLEBAR

53171-312-003

$52.94

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

PLUG, HANDLEBAR BRACKET

53174-116-670

$2.48

COVER, R. CONTROL LEVER

53176-329-000

$12.41

COVER, L. CONTROL LEVER

53179-329-000

$15.07

BOLT, CLUTCH CABLE ADJUSTING

53192-203-000

$9.10

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

NUT, FIXING

90321-315-670

$7.31

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

WASHER (7X12)

90501-310-000

$1.74

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

SCREW, PAN (6X28)

93500-06028-0A

$1.49

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

BAND B1, CABLE

95014-62100

$1.64
