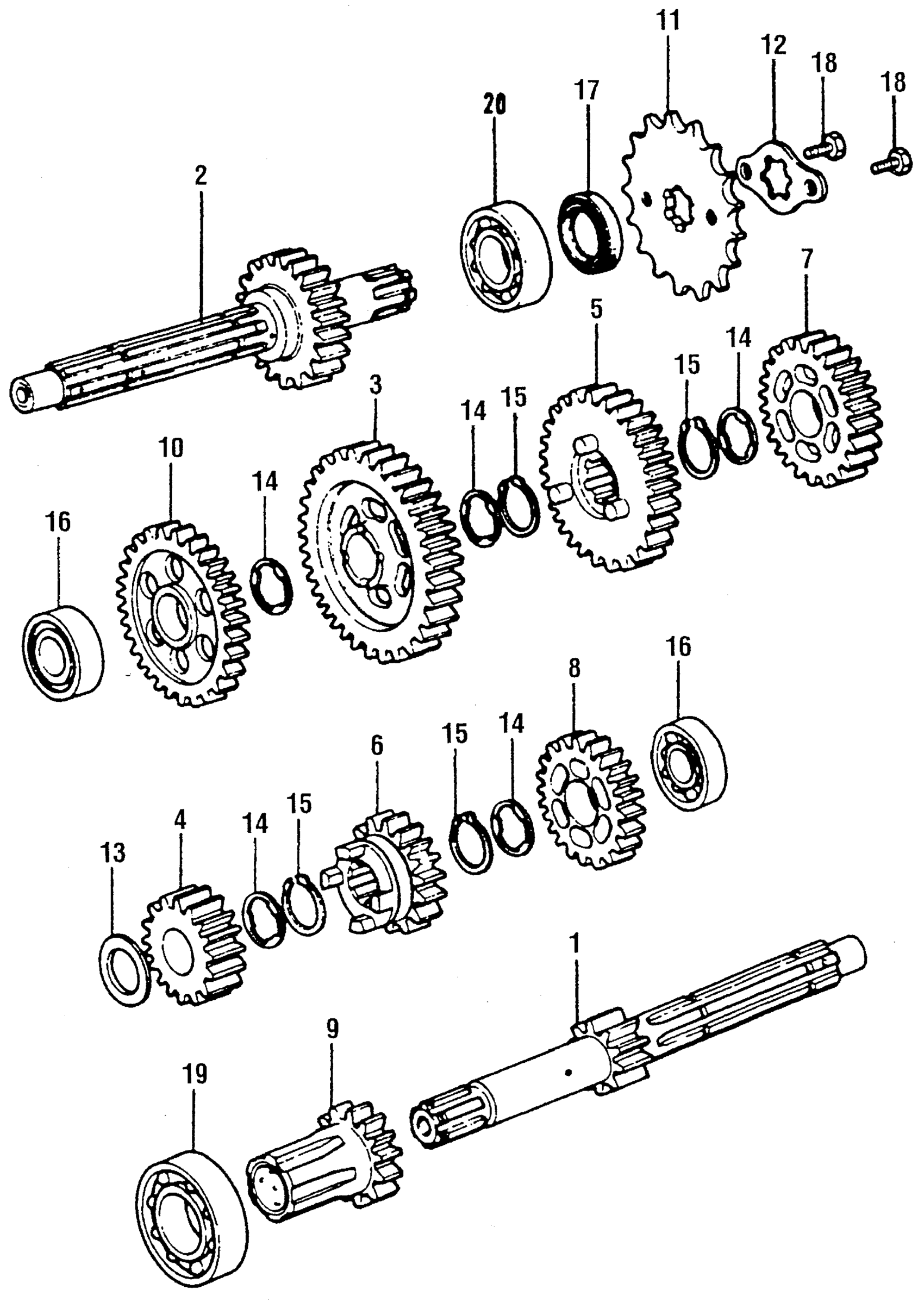

Honda XR75K1A MOTORCYCLE, JPN, VIN# XR75-1100001 TO XR75-1138920 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (14T)

23211-116-020

Unavailable

COUNTERSHAFT, TRANSMISSION (25T)

23221-116-010

Unavailable

GEAR, COUNTERSHAFT LOW (35T) (NOT AVAILABLE)

23426-116-020

$67.64

GEAR, MAINSHAFT SECOND (18T) (NOT AVAILABLE)

23441-116-010

Unavailable

GEAR, COUNTERSHAFT SECOND (31T) (NOT AVAILABLE)

23451-116-010

Unavailable

GEAR, MAINSHAFT THIRD (21T) (NOT AVAILABLE)

23461-116-010

Unavailable

GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE)

23471-116-010

Unavailable

GEAR, MAINSHAFT TOP (24T) (NOT AVAILABLE)

23501-116-010

Unavailable

GEAR, PRIMARY STARTER (17T) (NOT AVAILABLE)

23520-115-010

Unavailable

GEAR, PRIMARY IDLE (31T)

23530-116-000

Unavailable

SPROCKET, DRIVE (14T)

23800-040-010

$17.03

SPROCKET, DRIVE (14T) This part replaces 23800-116-010.

23801-178-000

$16.40

SPROCKET, DRIVE (14T) This part replaces 23800-141-010.

23801-178-000

$16.40

SPROCKET, DRIVE (14T)

23801-178-000

$16.40

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

WASHER B, THRUST (17MM)

90453-115-000

$2.28

WASHER, SPLINE (17MM)

90461-115-000

$2.66

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

BEARING, BALL (6201Z)

91001-115-000

$10.21

BEARING, RADIAL BALL (6201U) This part replaces 91002-436-004.

96140-62010-00

$9.63

BEARING, RADIAL BALL (6201U)

96140-62010-00

$9.63

OIL SEAL (17X29X5) (NOK) This part replaces 91203-035-000.

91203-035-005

$8.91

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

BEARING, RADIAL BALL (6005) This part replaces 96100-60050.

96100-60050-00

$11.25

BEARING, RADIAL BALL (6005)

96100-60050-00

$11.25

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
