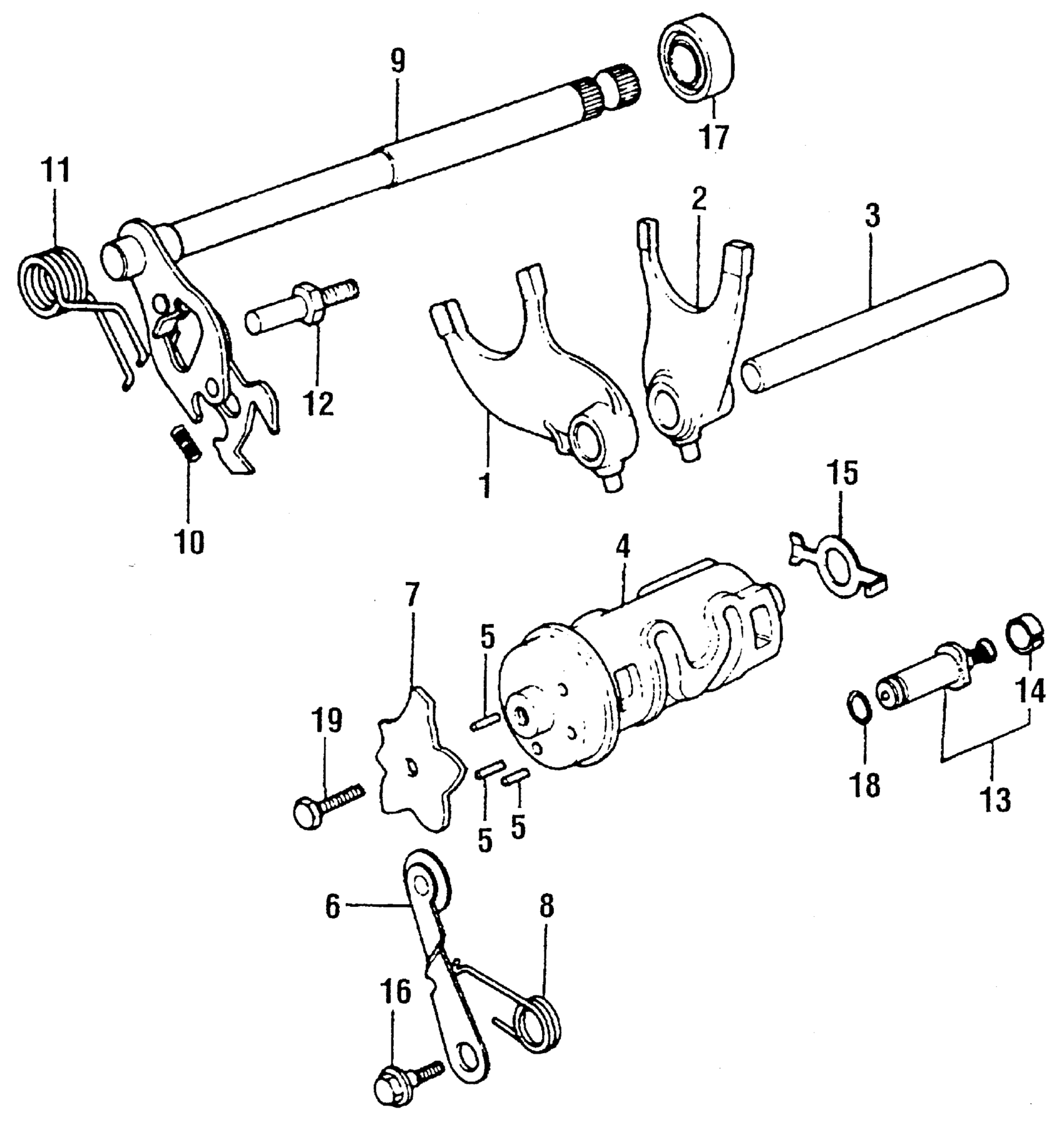

Honda XR75K1A MOTORCYCLE, JPN, VIN# XR75-1100001 TO XR75-1138920 GEARSHIFT Diagram

#

Description
Price

1

FORK, R. GEARSHIFT This part replaces 24211-115-000.

24211-149-000

Unavailable

1

FORK, R. GEARSHIFT

24211-149-000

Unavailable

2

FORK, CENTER GEARSHIFT

24231-115-000

Unavailable

3

SHAFT, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24241-116-000

Unavailable

4

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-116-010

Unavailable

5

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

5

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

6

STOPPER, GEARSHIFT DRUM This part replaces 24430-115-000.

24430-115-010

$12.67

6

STOPPER, GEARSHIFT DRUM

24430-115-010

$12.67

7

PLATE, GEARSHIFT DRUM STOPPER This part replaces 24435-115-020.

24435-115-040

$11.30

7

PLATE, GEARSHIFT DRUM STOPPER This part replaces 24435-115-030.

24435-115-040

$11.30

7

PLATE, GEARSHIFT DRUM STOPPER

24435-115-040

$11.30

8

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24436-115-030

Unavailable

9

SPINDLE, GEARSHIFT

24610-116-000

Unavailable

10

SPRING, GEARSHIFT ARM

24641-115-010

$2.92

11

SPRING, GEARSHIFT RETURN

24651-107-000

$5.81

12

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

13

CONTACT ASSY., NEUTRAL SWITCH

35750-028-000

Unavailable

14

SPACER, NEUTRAL SWITCH

35752-KCT-690

$2.92

14

SPACER, NEUTRAL SWITCH This part replaces 35752-028-300.

35752-KCT-690

$2.92

15

ROTOR, NEUTRAL SWITCH

35753-KR3-010

$2.75

15

ROTOR, NEUTRAL SWITCH This part replaces 35753-115-000.

35753-KR3-010

$2.75

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

17

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

17

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

17

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

17

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

18

O-RING (7X1.7)

91312-107-000

$3.18

19

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49
