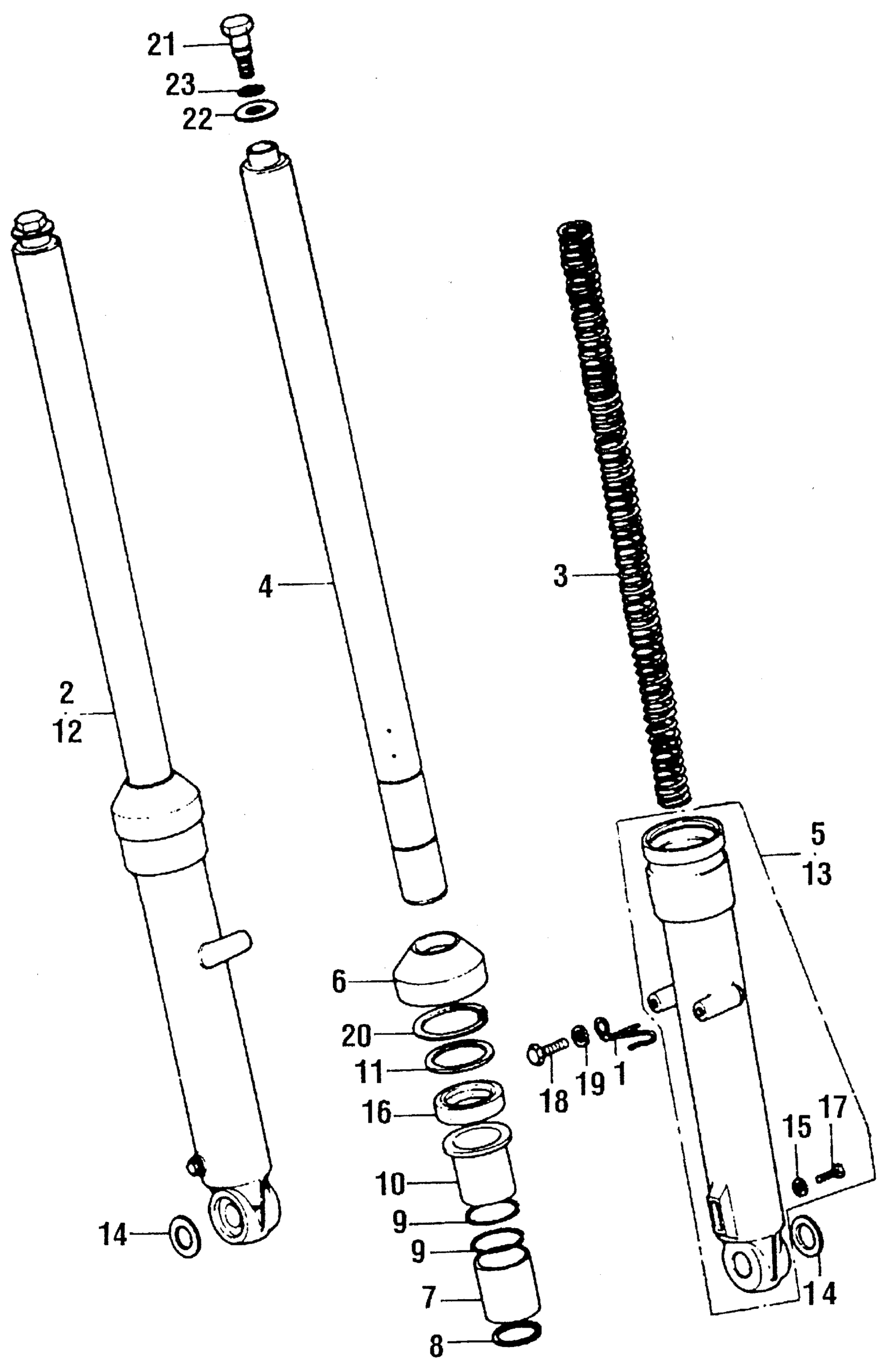

Honda XR75K1A MOTORCYCLE, JPN, VIN# XR75-1100001 TO XR75-1138920 FRONT FORK Diagram

#

Description
Price

1

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45469-116-670

Unavailable

2

FORK ASSY., R. FR. *A26* (POLISHING) (NOT AVAILABLE)

51400-116-671ZC

Unavailable

3

SPRING, FR. FORK This part replaces 51401-118-000.

51401-118-003

Unavailable

4

PIPE, FR. FORK (SHOWA) This part replaces 51410-116-671.

51410-152-003

Unavailable

4

PIPE, FR. FORK (SHOWA)

51410-152-003

Unavailable

5

CASE, R. FR. FORK (LOWER) *A26* (POLISHING) (NOT AVAILABLE)

51420-116-671ZC

Unavailable

6

DUST SEAL, FR. FORK (ARAI) This part replaces 51425-118-013.

51425-118-023

$11.06

6

DUST SEAL, FR. FORK (ARAI)

51425-118-023

$11.06

7

PISTON, FORK (27MM) This part replaces 51442-229-000.

94603-27002

Unavailable

7

PISTON, FORK (27MM)

94603-27002

Unavailable

8

RING B, SNAP (27MM) (NOT AVAILABLE) This part replaces 51445-028-000.

94580-27000

Unavailable

9

RING A, SNAP (27MM) This part replaces 51446-028-000.

94570-27000

Unavailable

9

RING A, SNAP (27MM)

94570-27000

Unavailable

10

GUIDE, FORK PIPE (27MM) This part replaces 51451-118-000.

94602-27101

Unavailable

10

GUIDE, FORK PIPE (27MM)

94602-27101

Unavailable

11

RING, BACK-UP

51452-118-000

Unavailable

12

FORK ASSY., L. FR. *A26* (POLISHING) (NOT AVAILABLE)

51500-116-671ZC

Unavailable

13

CASE, L. FR. FORK *A26* (POLISHING) (NOT AVAILABLE)

51520-116-671ZC

Unavailable

14

WASHER (12.5MM)

90528-229-000

$2.02

15

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

16

OIL SEAL, FR. FORK This part replaces 90756-118-003.

90756-149-841

$14.86

16

OIL SEAL, FR. FORK

90756-149-841

$14.86

17

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

17

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

17

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

CIRCLIP (INNER) (40MM) (NOT AVAILABLE)

94521-40000

Unavailable

21

BOLT, FORK A

94605-10101

$5.21

22

WASHER, FORK BOLT (13MM) This part replaces 94606-13000.

94606-13001

$1.49

22

WASHER, FORK BOLT (13MM)

94606-13001

$1.49

23

O-RING (8.4X2.4)

94608-10000

$1.49
