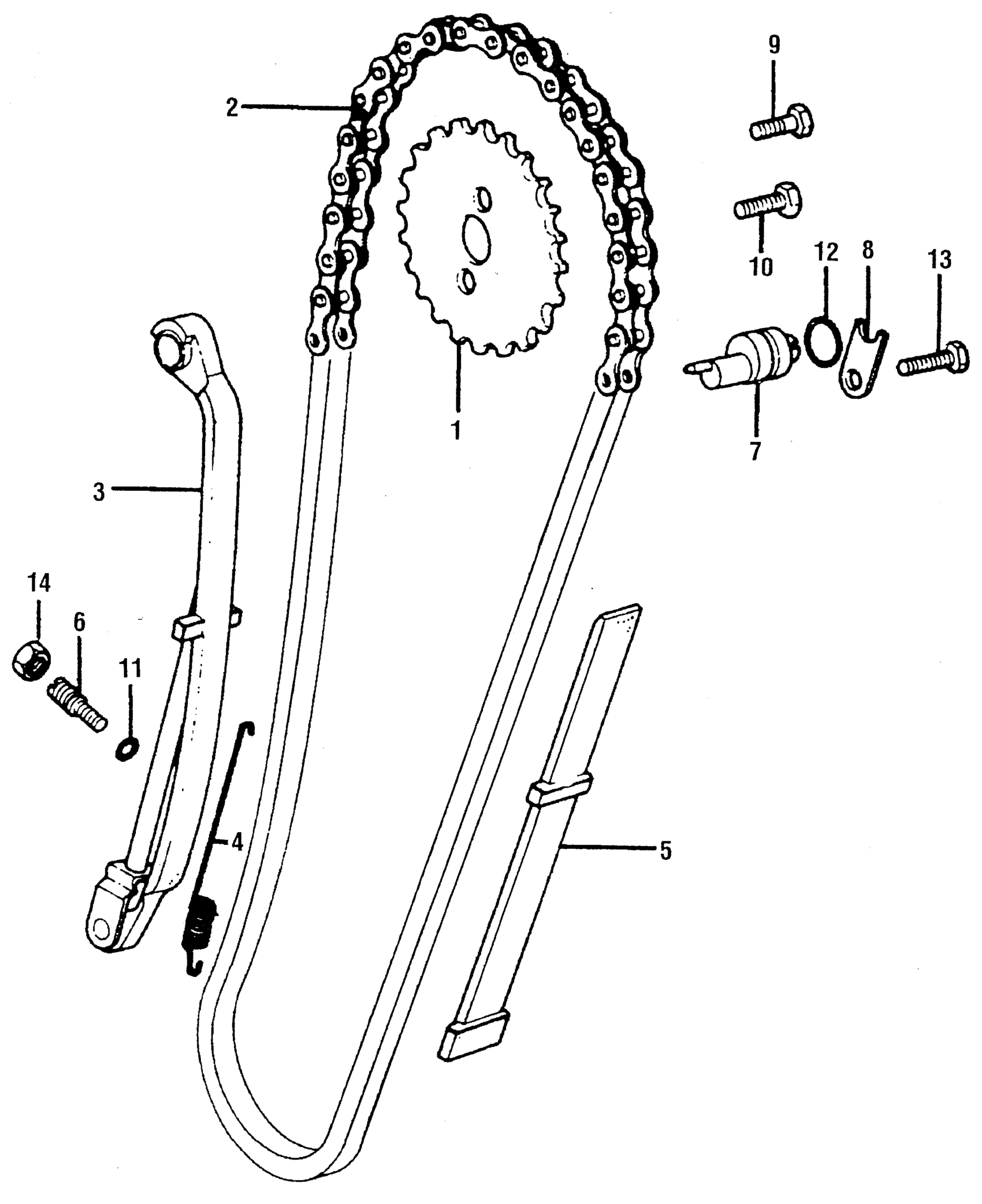

Honda XR75K1A MOTORCYCLE, JPN, VIN# XR75-1100001 TO XR75-1138920 CAM CHAIN TENSIONER Diagram

SPROCKET, CAM (28T) This part replaces 14321-115-000.

14321-115-010

$22.08

SPROCKET, CAM (28T)

14321-115-010

$22.08

CHAIN, CAM (86L) (DAIDO)

14401-028-003

Unavailable

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14500-116-000

Unavailable

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14515-116-000

Unavailable

GUIDE, CAM CHAIN

14550-116-000

$44.10

BOLT, CAM CHAIN TENSIONER ADJUSTING

14561-086-010

$10.41

BOLT, CAM CHAIN TENSIONER ADJUSTING

14561-115-020

$19.31

PLATE, CAM CHAIN TENSIONER ADJUSTING

14562-115-000

$5.13

BOLT, KNOCK (6X14)

90081-312-000

Unavailable

BOLT, HEX. (6X14) (NOT AVAILABLE)

90085-312-000

Unavailable

O-RING (5.5X1.5)

91301-216-000

$2.38

O-RING (11X2.0)

91303-259-000

$3.26

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49
