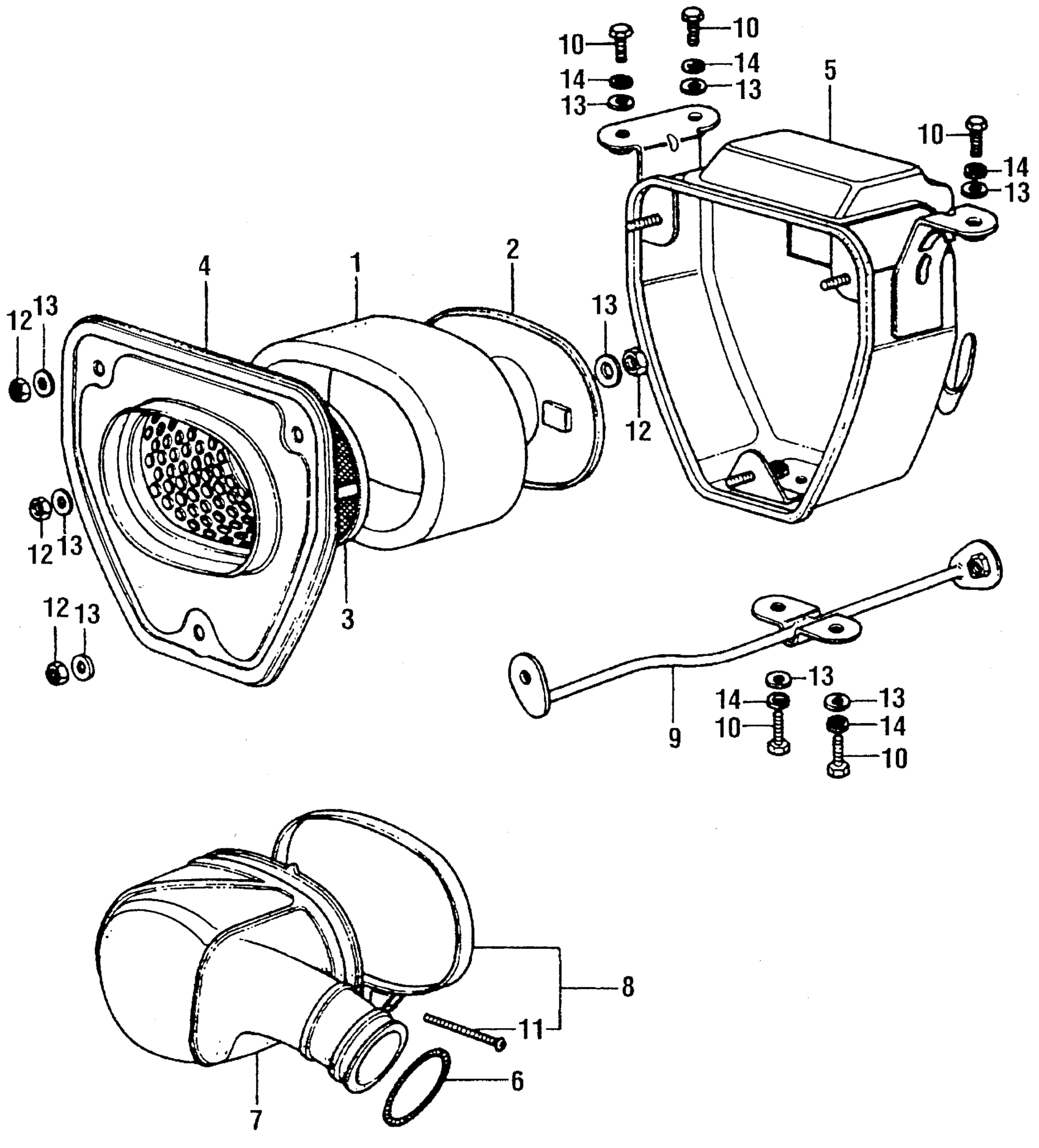

Honda XR75K1A MOTORCYCLE, JPN, VIN# XR75-1100001 TO XR75-1138920 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-107-020

$6.78

2

CAP, AIR CLEANER ELEMENT

17212-107-780

Unavailable

3

TRAP, FLAME (NOT AVAILABLE)

17214-107-780

Unavailable

4

COVER, AIR CLEANER HOUSING *NH1* (BLACK) (NOT AVAILABLE)

17220-116-670B

Unavailable

5

HOUSING, AIR CLEANER *NH1* (BLACK) (NOT AVAILABLE)

17230-116-671B

Unavailable

6

BAND A, AIR CLEANER IN. PIPE

17231-051-000

$4.63

7

TUBE, AIR CLEANER CONNECTING

17253-116-670

Unavailable

8

BAND, AIR CLEANER CONNECTING TUBE

17255-107-000

Unavailable

9

STAY, SIDE NUMBER *NH1* (BLACK) (NOT AVAILABLE)

50156-116-670B

Unavailable

10

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

10

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

10

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

11

SCREW, PAN (4X25)

93500-04025-0A

$1.93

12

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM)

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

13

WASHER, PLAIN (6MM)

94101-06800

$1.49

14

WASHER, SPRING (6MM)

94111-06000

$1.49
