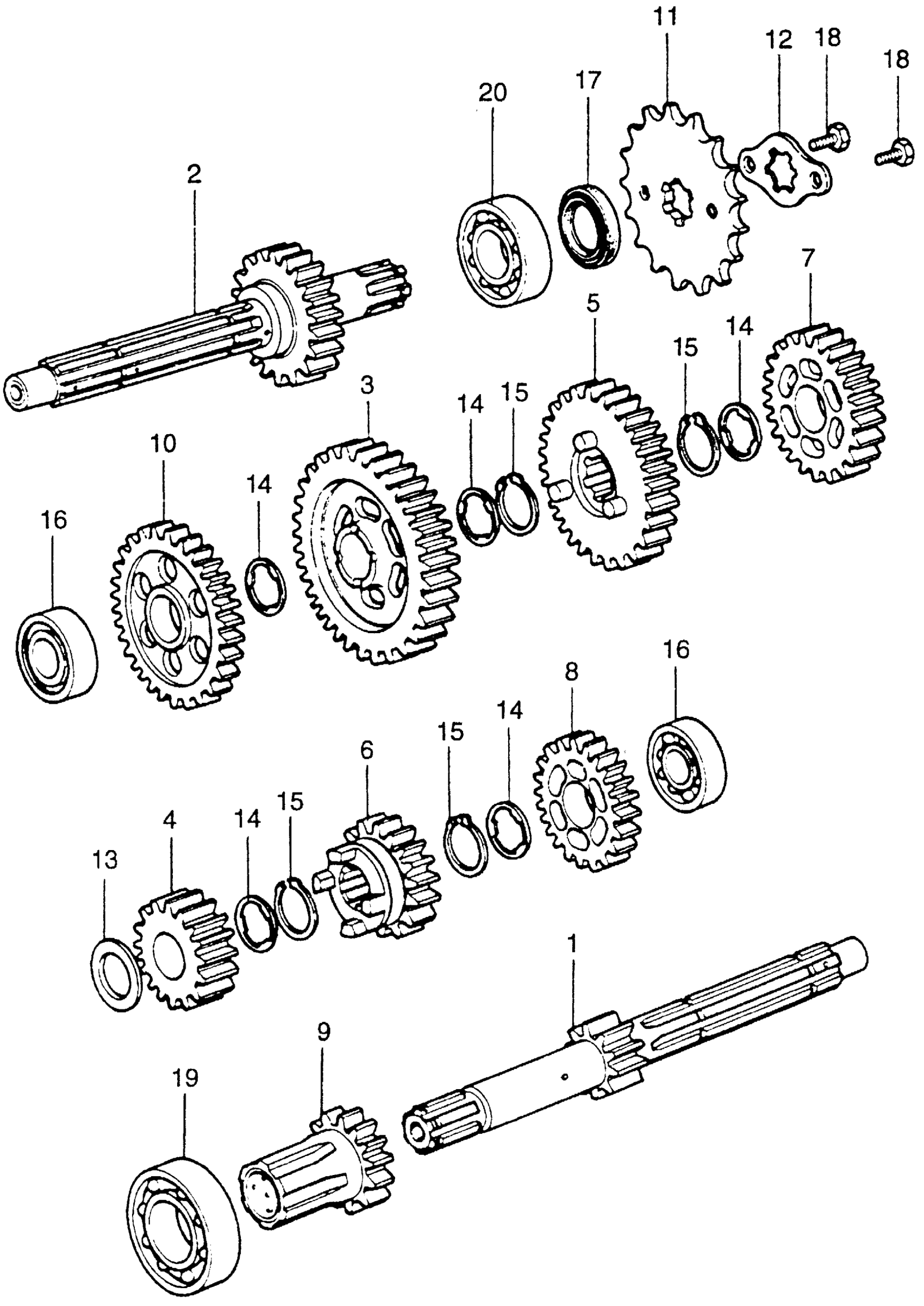

Honda XR75A MOTORCYCLE, JPN, VIN# XR75-1000001 TO XR75-1024550 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (14T)

23211-116-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION (25T)

23221-116-010

Unavailable

3

GEAR, COUNTERSHAFT LOW (35T) (NOT AVAILABLE)

23426-116-020

$59.80

4

GEAR, MAINSHAFT SECOND (18T) (NOT AVAILABLE)

23441-116-010

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T) (NOT AVAILABLE)

23451-116-010

Unavailable

6

GEAR, MAINSHAFT THIRD (21T) (NOT AVAILABLE)

23461-116-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE)

23471-116-010

Unavailable

8

GEAR, MAINSHAFT TOP (24T) (NOT AVAILABLE)

23501-116-010

Unavailable

9

GEAR, PRIMARY STARTER (17T) (NOT AVAILABLE)

23520-115-010

Unavailable

10

GEAR, PRIMARY IDLE (31T)

23530-116-000

Unavailable

11

SPROCKET, DRIVE (13T) | (Optional).

23800-GB4-000

$15.25

11

SPROCKET, DRIVE (14T)

23800-040-010

$15.30

11

SPROCKET, DRIVE (13T) | (Optional). This part replaces 23800-041-010.

23800-GB4-000

$15.25

11

SPROCKET, DRIVE (14T) This part replaces 23800-116-010.

23801-178-000

$14.73

11

SPROCKET, DRIVE (14T) This part replaces 23800-141-010.

23801-178-000

$14.73

11

SPROCKET, DRIVE (14T)

23801-178-000

$14.73

12

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.41

12

PLATE, DRIVE SPROCKET FIXING | (Optional).

23802-041-010

$1.84

13

WASHER B, THRUST (17MM)

90453-115-000

$2.07

14

WASHER, SPLINE (17MM)

90461-115-000

$2.42

15

CIRCLIP (OUTER) (17MM)

90601-001-000

Unavailable

16

BEARING, BALL (6201Z)

91001-115-000

$9.30

16

BEARING, RADIAL BALL (6201U) This part replaces 91002-436-004.

96140-62010-00

$8.65

16

BEARING, RADIAL BALL (6201U)

96140-62010-00

$8.65

17

OIL SEAL (17X29X5) (NOK) This part replaces 91203-035-000.

91203-035-005

$8.00

17

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.00

18

BOLT, DRIVE SPROCKET FIXING | (Optional).

90084-041-000

$4.29

18

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.25

18

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.25

18

BOLT, HEX. (6X8)

92101-06008-0A

$1.25

19

BEARING, RADIAL BALL (6005) This part replaces 96100-60050.

96100-60050-00

$10.11

19

BEARING, RADIAL BALL (6005)

96100-60050-00

$10.11

20

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$7.82

20

BEARING, RADIAL BALL (6203)

96100-62030-00

$7.82
